Home >Products Catalog > All in one PC > LASVD Factory Supply 65 Inch Multi Function Infrared Query Touch Screen All In One PC Digital Kiosk for Shopping Mall

LASVD Factory Supply 65 Inch Multi Function Infrared Query Touch Screen All In One PC Digital Kiosk for Shopping Mall

FOB Price:	1,817.00 - 1,869.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Week
Shipping:	Shipped in 15 working days after payment
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Computer Support Bars

Price:

Min. Order:
Solar Computer Bag-STC001

Price:

Min. Order:600 Sets
Computer Process Machine / Engraver

Price:

Min. Order:1 Set
PBS18 all-in-one photo book station

Price:

Min. Order:
Coiled cable for telephone or computer

Price:0.10-3.90 USD/Piece

Min. Order:1,000 Pieces
Cat5e UTP Computer Networking Cable

Price:0.10-10.00 USD/Kilometer

Min. Order:2 Kilometer

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Our packing is packed in thick cardboard box, which has thickened pearl cotton or air box, which ensures the transportation is not a problem.

Quick Details

Model Number: TS-DNL65
Brand Name: Les Avedon
Processor Main Frequency: 1.4GHz
Optical Drive Type: USB
Display Type: LCD
Graphics Card Type: Integrated Card
Hard Drive Capacity: 120GB
Processor Brand: Intel
Screen Size: 65''
Type: All-In-One
Products Status: Stock
Type: Infrared, TFT
Resolution: 1920*1080
Keywords: query all in one pc
Touch points: 10 Points
Brightness: 450cd/m2
CPU: Intel i3
Hard disk: 120GB SSD
RAM: Kingston 4GB
Response time: 8ms
Enclosure Color: Black with silvery white edge

Specifications

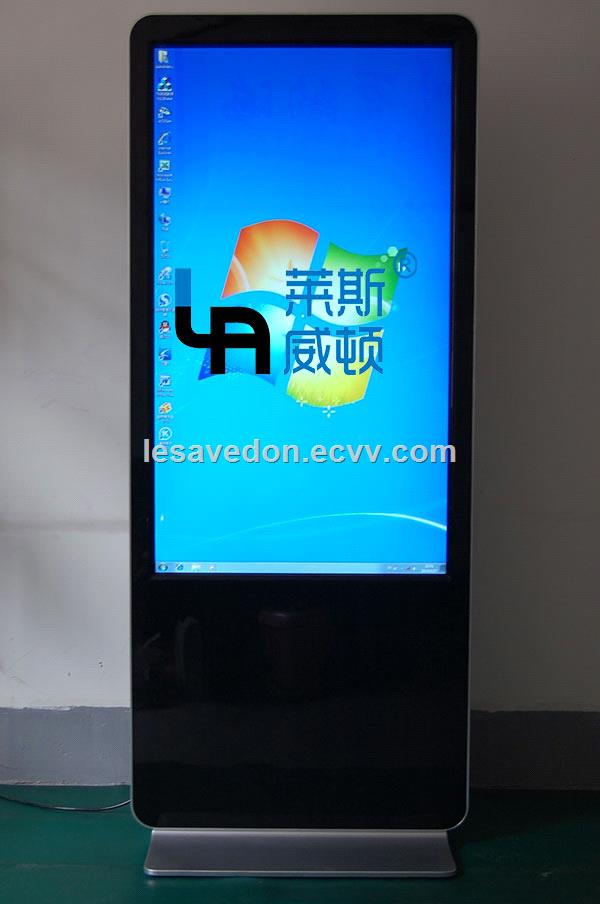

Product view of front.
LASVD Factory Supply 65 inch multi function infrared query touch screen all in one pc digital kiosk for shopping mall

below are product's main features and specs.

LED panel parameters
LCD	Brand new original LCD screen
Screen Type	65 inch LCD
Ratio	9:16
Contrast Ratio	2000:1
Response Time	8ms
Physical resolution	1920*1080/60Hz
Display size	1435(H)* 809 (V) (mm)
Color	16.7M
Brightness	450cd/m2
Panel Life	>60,000(hrs)
Viewing Angle	H170°/V160°

Touch Screen Parameters
Touch Mode	Embedded infrared touch technology
Touch Point	Ten points
Touch resolution	4096 * 4096
Light-resistant	88K LUX working
Refresh Rate	260HZ
Response time	<3.84mS
Working current	230ma
Power	1.15W
Positioning accuracy	<1.5mm
the smallest touch diameter	≥5 mm
Write Method	Finger or Non-transparent material
Anti-knockingrating	Use tempered glass to provide knock rating, which is no scratch and high transparent toughened glass.750g steel ball falling from 1m height, the sample is not broken.
Transmittance	>98%,up to 100%(no glass)
Supply voltage	+5V DC allowable range +4.75V~+5.25V
Operating voltage	USB
Interface mode	USB2.0(slave)at full speed
System Campatibility	Windows7/Windows8/Windows10/Android 4.4X/XP
Measurement of drift	Drift does not change with the environment.
Service life	over 8 years
Number of touch	Unlimited
Repair rate	0.3 percent

Hardware Parameters
CPU	Intel i3
Mainboard	Industrial personal computer mainboard
Hard disk	120GB SSD
RAM	Kingston 4GB
Graphics card	Intel graphics media accelerator nuclear
Audio card	Integrated 6.1 channels HD Realtek ALC622 audio card
Network card	100M Onboard NIC/WiFi wireless network card
Loudspeaker	2*10W
Compatible video format	PAL/NTSC
OS	WindowXP/window7/window8/Windows10
