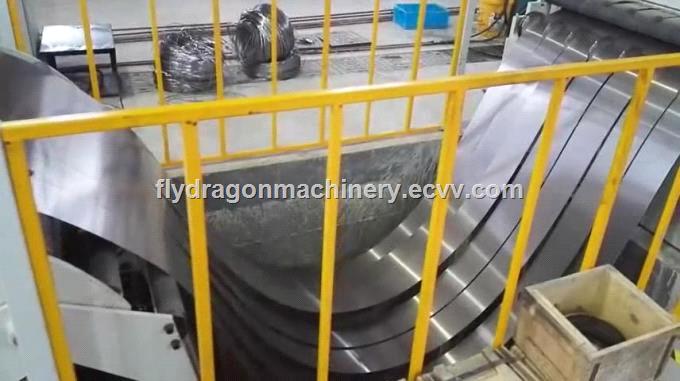

Decoil Slitting Line: Uncoiler, Straightening, Shearing. Feeding & Positioning, Slitting Unit, Recoiler

FOB Price: 20,000.00 - 25,000.00 USD/Set
Payment Terms: L/C, T/T
In Stock

Specifications

Decoil slitting lineuncoiler straightening shearing feeding and positioning slitting unit recoiler

Main Parameters
Processing Thickness
0.5~4.5mm
Processing Width
600-1600mm
Slitting Accuracy
±0.15 mm
Slitting Speed
120m/min
Coil Inner Diameter
500/610 mm
Coil Outer Diameter
≤2000 mm
Max. Slitting Numbers
6-22pcs
Slitting Coil Width
≥20 mm
……
……
Not limited to these parameters, custom made according to client Practical demands.


Application:It is suitable for the longitudinal shearing of the metal coils and rewinding coils.
Advantages:Easy to Operate, slitting quality is high, excellent material utilization, Stepless Shearing speed regulation, etc.
Structure:It consist of Uncoiler, feeding and positioning, slitting unit, recoiler, Etc.
Applicable Materials:Tinplate, silicon steel, aluminum, Copper, stainless steel and galvanized steel, etc.
