Deep Cycle Lead Acid Battery for Electric Bike Electric Scooter 6-Dzm-22

Specifications

XUPAI Brand 12V 22Ah Lead Acid Battery/E-bike Battery 6-DZM-22 with CE/ISO certificate

Place of Origin:	Jiangsu, China (Mainland)	Brand Name:	XUPAI	Model Number:	6-DZM-22
Type:	Rechargeable Battery	Nominal Voltage:	12V	Size:	L180*W76*H170MM
Nominal Capacity:	22 AH	Battery Type:	Sealed Rechargeable Battery	Delivery Time:	10 (Ten) Day
Discharge Rate:	2 Hrs	Battery HS Code:	8507200000	Packaging:	4 PCS/CTN/Pallet
Battery Materials:	ABS Shell,PB, Acid,Active materials	Battery Shell Color:	Green(Red/Black)	Warranty:	12 Months
Production Capacity:	150,000PCS/Day	Export Markets:	USA,UK,Canada,Italy, India,

Packaging & Delivery

Packaging Details:	Carton and Pallet
Delivery Detail:	Shipped in 7-15 days after payment

Product feature:
1) Large capacity, High specific energy: made by special technology and material, capacity is more than 100%, specific energy reach 35-38wh/kg.
2) Low self-discharging: made by high grade alloy grid, pure electrolyte, low self discharging and water loss.
3) Long cycle life: It can be used for 360 times at the temperature of 25oC, if maintained regularly, it can be used for 650 times.
4) Reliability: the streamlined valve is specially designed in order to make the battery durable and reliable.
5) Airtight structure: could use battery in any direction (except inversion).
6) Excellent design: it is not only with the merit of seal valve regulation, but also with the advantage of maintenance. the special design of the extraction makes it easy to maintain and prolongs the durability by 50-100% or longer.
7) Various ways of use: battery could be floating use, also be cycling use.
8) Recommended charging methods: Intelligent three-phase management of charging storage batteries can prolong theuse of storage batteries efficiently.

Applications:
1: E-bike
2: Electric tricycle
3: quad bikes
4: electric scooters
5: electric cars
6: mobility scooters etc
7: golf cars
8: Ride-on toys
9: Electric scooters
10: Battery-powered wheelchairs
11: Portable television and video equipment
12: Lifting equipment
13: Semi-traction lawn mowers
14: Besides our lead acid battery batteries pack usedin store the greenenergy like solar power,wind power and UPS

XUPAI-Ebike Battery(DZM series )Model Specifiction

Model	Normal  Voltage (V)	Charge Time (hr)	Rated  Capacity (Ah)	Dimensions (±2mm)			Dimensions (inch)			Weight
				L	W	H	L	W	H	Kg±0.5	lb
6-DZM-12	12	2	12	151	100	99	5.94	3.94	3.90	4.30	9.48
6-DZM-20	12	2	20	180	76	170	7.09	2.99	6.69	6.90	15.21
6-DZM-22	12	2	22	180	76	170	7.09	2.99	6.69	7.10	15.65
6-DZM-24	12	2	24	185	105	130	7.28	4.13	5.12	7.30	16.09
6-DZM-28	12	2	28	175	166	125	6.89	6.54	4.92	9.80	21.61

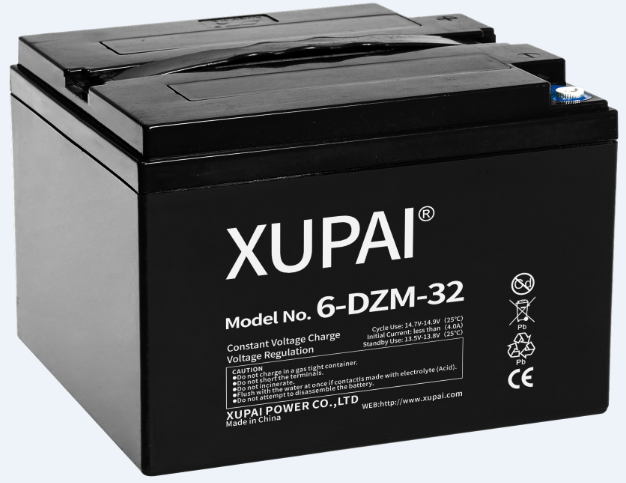

6-DZM-32	12	2	32	175	166	125	6.89	6.54	4.92	10.30	22.71
8-DZM-14	16	2	14	201	112	102	7.91	4.41	4.02	7.00	15.43

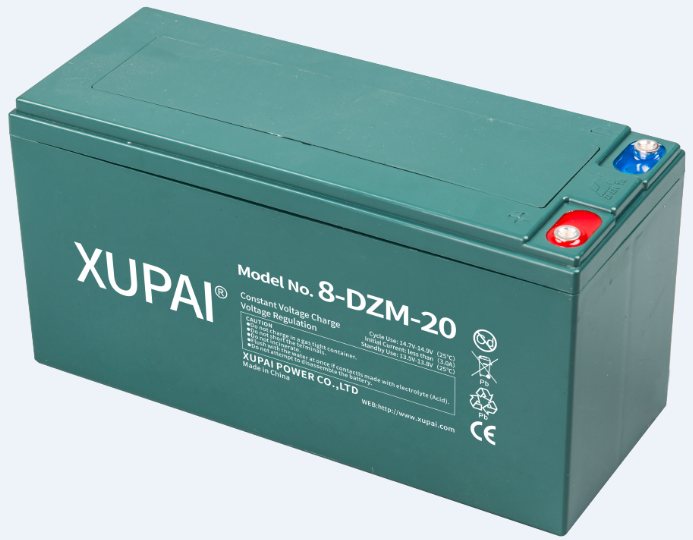

8-DZM-20	16	2	20	250	100	130	9.84	3.94	5.12	9.80	21.61

FAQ:
Terms of Payment

Value of goods	Terms of Payment
Less 5,000 dollars	100%T/T advance
5,000-20,000 dollars	50% T/T advance
More 20,000 dollars	T/T or L/C at sight

 A:What's your battery Charge Volte?
 Re: Range from 14.70 to 14.90 Voltage/PC,recommended 14.80 Voltage

 B:What's your gurantee for Battery
 Re:Email to us

 C:What's your battery life time
 Re:Normally depending your  useage situation as the 100% DOD over 360 Times.

 D:Do you accept  L/C?
 Re:Yes.



Company Introduction:

XUPAI Battery, the world's leading supplier of new energy products, the highquality worldwide leading brand of electric vehicle batteries, top three global suppliers of electric vehicle batteries,is specialized in R & D, manufacturing, sales and service of high-tech enterprise.

XUPAI battery has always been adhering the business philosophy of quality, integrity, service,and development, which keep continued leadership position in global suppliers of new energy products. XUPAI Battery has abundent experience with product development and manufacturing in the fields of power batteries, storage batteries, and UPS batteries,Which is one of the few manufacturers that mastered into making the high-tech batteries without cadmium ,and that is one hundred percent without cadmium into products .those batteries is noncadmium and arsenic-free, green and eco-friendly, which is the global leader products in similar lines.

XUPAI  battery has three major production bases in Mainland China: Zhejiang Xupai Power Co., Ltd., Covering an area of 33,000 square meters of ground. Jiangsu Aoxin Technology Development Co., Ltd. ,which covers an area of 167,000 square meters. Jiangsu Xupai Energy Technology Co., Ltd. covered an area of 490,000 square meters.

Our products are popular in Italy, South Korea, Turkey, India, Canada, Brazil, Bangladesh, Israel, the Netherlands, France, Honduras, Czech Republic, New Zealand, Slovenia, the United Kingdom, Colombia, Pakistan, Singapore, Denmark, Estonia, Sweden, Spain, the United States, Greece etc. So far there are more than 35 million of worldwide customers using products and services provided by XUPAI battery, and discharge time of those battery totaled more than 350 billion of hours!

Why choose "XUPAI"
 1: "XUPAI" Battery is the leader of high-quality E-bike lead acid battery brand throughout the world.We are the 3rd biggest E-bike l- ead acid battery manufacturer which is engaged in production research and development for 19 years.
2: "XUPAI" Battery has the characteristic of long distance range and high cycle life.
3: "XUPAI"Battery is the Best e-bike lead acid battery!
4: We are professional e-bike lead acid storage battery supplier in china with more than 5000 employees. We supply TOP quality battery with competitive price.

after-service
Therrific after servive: 24hours around the clock& 12 months warranty.
Life-long maintenance for the battery.

"Professional Manufacturer of Batteries for 20 years with 4 Factories in China.'
Looking forward cooperation with you!
