Hongtai Alloy Electric Apparatus Co., Ltd.
China Manufacturer with main products: Flexible Heater, Infrared Heater, Hot Runner Heater, Cast-In Heater |

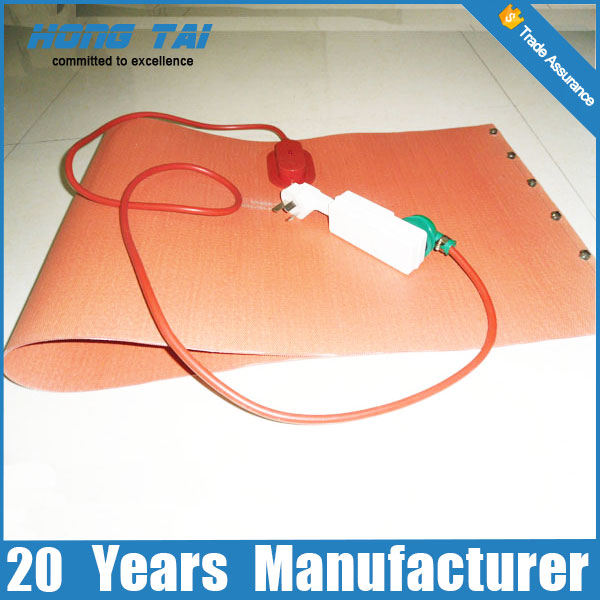

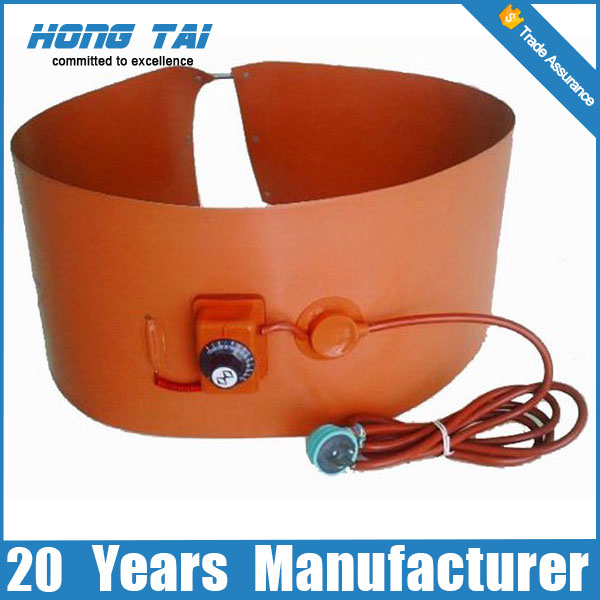

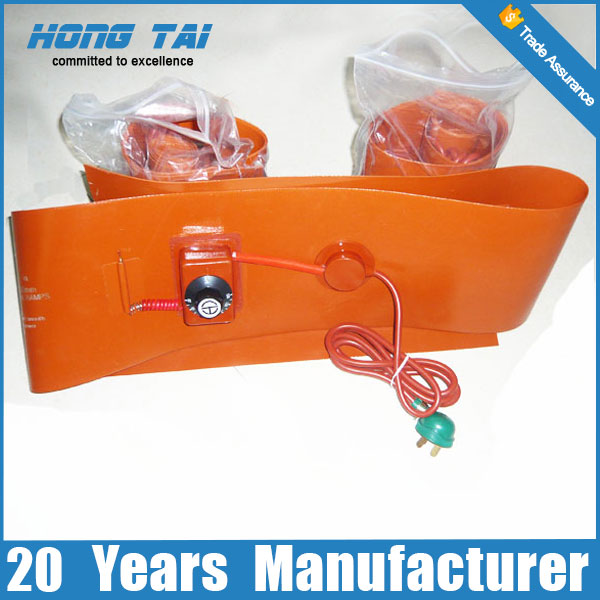

Flexible Silicone Oil Drum Heater
| FOB Price: | 20.00 - 100.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Month |
| Shipping: | 7 days after payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Carton Box |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 Year
- Certification: CE, UL
- Power(W): 1000W
- Voltage: 220-480v
- Weight: 0.85-0.95kg
- Dimension(L*W*H): 1740x125x1.5mm
- Model Number: SR-002
- Brand Name: Hongtai
- Power Source: Electric
- Type: Air Heater
- Condition: New
- Application: Oil Drum
Specifications
55 gallon oil drum heater blanket
DESCRIPTIONS

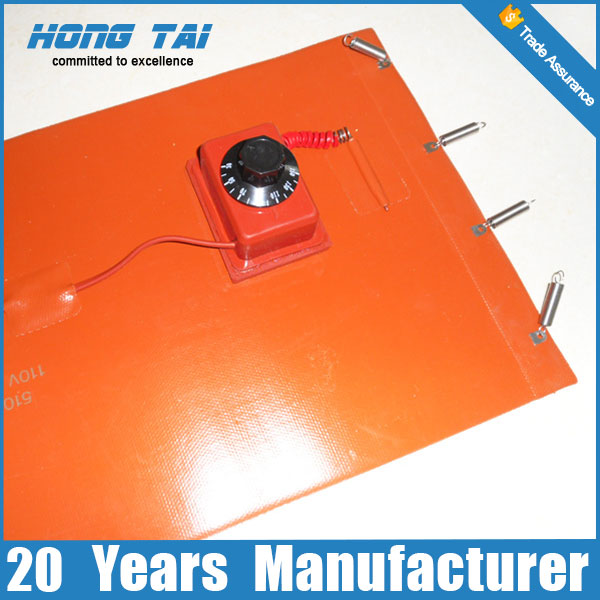

the heating element is a Nickel-Chromium or Copper-Nickel alloy wire, this resistance is embedded between two layers of silicone impregnated glass cloth, making drum heater. A fitted stainless steel spring makes the mounting easy.

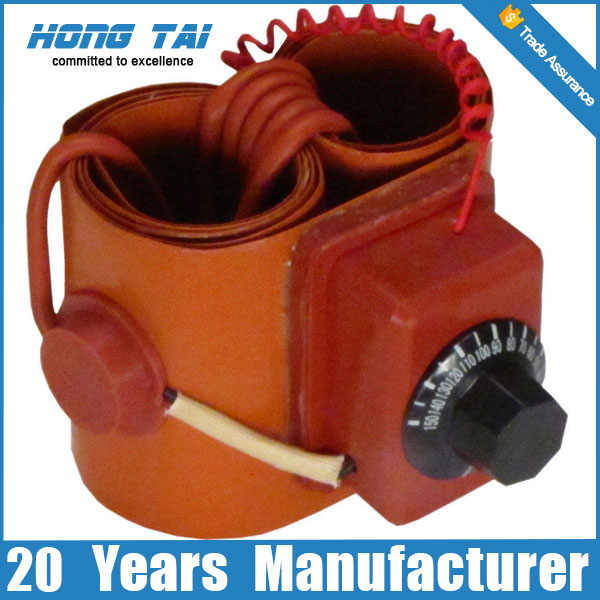

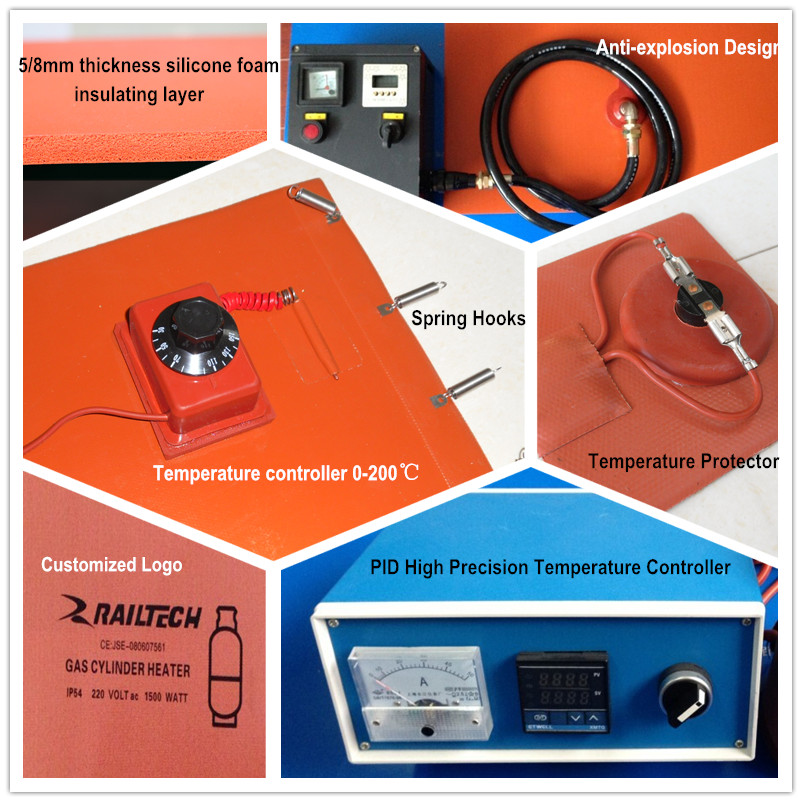

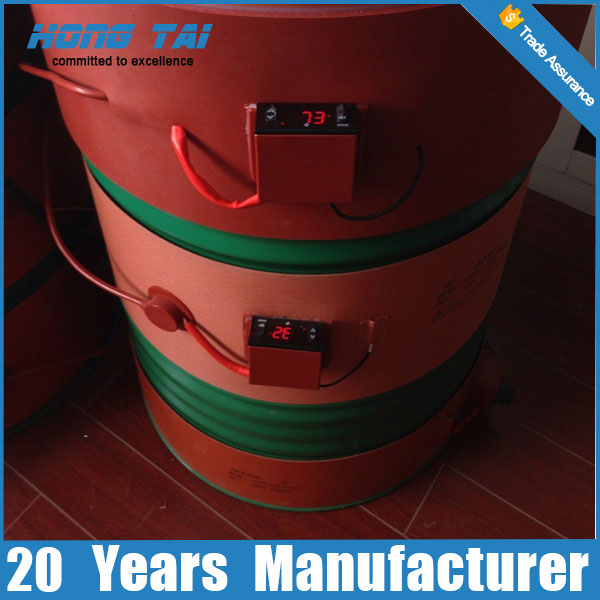

A dial thermostat graduated from 30°C to 150°C allows the temperature maintenance adjustment. or digital thermostat -20--280 degree C can adjust and display temperature as your need.
the drum heater is weatherproof.
SPECIFICATIONS
Dimension |
Dimensions on request | |
Thickness |
1.5mm Note: There is an extra thickness at the connection point. | |
Heating element |
Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core |
Nickel-Chromium or a Copper-Nickel resistance wire |
Voltage |
Any voltage on request(110-380v) | |
Output |
up to 5KW/M2 | |
Tolerance |
±10% on resistance | |
Max surface temperature |
200°C | |
Min exposure temperature |
-60°C | |
Standard Size
Volume |
200 Liter |
20 Liter |
200 Liter |
200 Liter |
OD(oil barrel) |
580mm |
300mm |
580mm |
580mm |
Heater Size |
250x1740mm |
200x860mm |
125x1740mm |
150x1740mm |
Voltage & Wattage |
200v/2000w |
200v/800w |
200v/1000w |
200v/1000w |
Adjusted Temperature |
30-150 °C |
30-150 °C |
30-150 °C |
30-150 °C |
Net Weight(kg)/PC |
1.8 |
1.2 |
1.3 |
1.4 |
Waterproof |
IP68 |
IP68 |
IP68 |
IP68 |
If you need heating drums of other volumes, please inform us of thedrumDiameterand we will make u a design of heaters.
