Fully Automatic Toroidal Coil Winding Machine

FOB Price:	28,000.00 - 38,000.00 USD/Set
Supply Ability:	500 Set(s) per Month
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, Southeast Asia
Place of Origin:	Guangdong in China

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New
Model Number: HD21301
Brand Name: Haoda

Specifications

Fully Automatic Toroidal Winding Machine
1.Brief Introduction:

HD21301Is one of the Haoda's most stableFully Automatic Toroidal Winding Machine. the latest revelation in winding technology and much sort after by the coil winding industry with the birth of the hands free toroidal coil production system, the coil winding industry have virtualized.
HD21301with its user-friendly PLC control system and ease of programming makes a university education requirement a thing of the past. with its multi-functionality, theHD21301Displays are feature in both English and Chinese.

2.Techincal parameters:

· Maximum wire size: 0.28mm (#30awg)

· Minimum wire size: 0.08mm (#40awg)

· Maximum OD: 17mm (0.7-inch)

· Minimum OD: 2.75mm (0.11-inch)

· Minimum ID: 1.00mm (0.040-inch)

· Maximum height: 8mm (0.32-inch)

· Wire spacing: programmable with controller

· Segment winding: programmable with controller

· Progressive winding: programmable with controller

· Rotator motor: stepper motor

· Main motor: servomotor

· Power requirement: 220V 50/60Hz

· Winding speed: variable to 3000TPM

· Mechanical dimensions: 51x 43 x 80cm

· Weight: 80kg

3.Performance features:

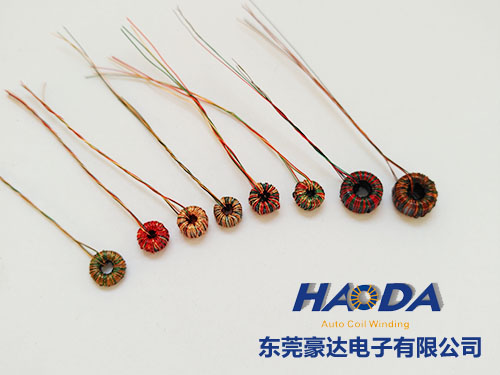

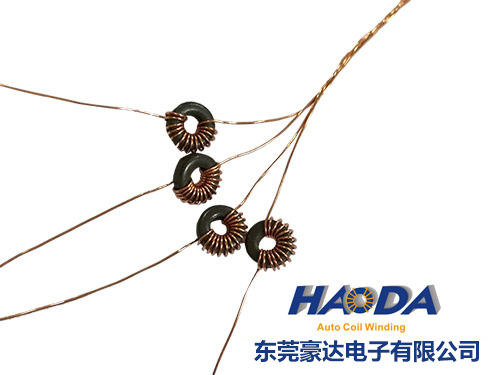

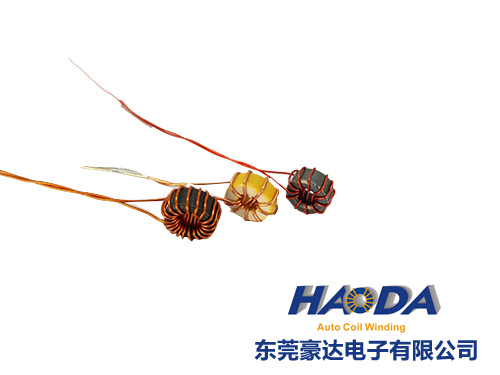

(1)Fully Automatic Toroidal Winding Machine HD21301 is a compact, lightweight, automatic feeding and easy operation machine. It can meet the requirements of various winding products.

(2)Touch Screen+ Servomotor+ PLC control system

(3)Powerful self-test function,simply maintenance,long service of wearing parts.

(4)High efficiency, stable production

(5)Strict production process,controllable coil winding turns, pressure, and other appearance problems.

(6)Long life service

(7)Technical support and training
