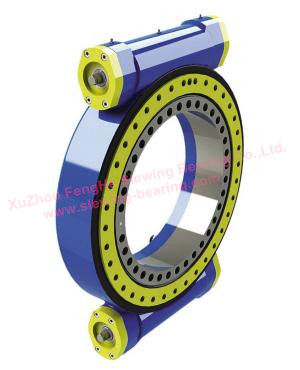

Module Trailer Slewing Drives (SE14 Inch), Worm Gear Reducer

FOB Price:	100.00 - 10,000.00 USD/Piece
Supply Ability:	2,000 Piece(s) per Month
Shipping:	15 days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	wooden case

Quick Details

Model Number: SE14
Brand Name: FengHe

Specifications

MORE INFORMATIONS PLEASE CONTACT with US...

Type: SE14 inch slewing drive

Feature:
1. Tooth type: Worm tooth
2. Medium-load slewing drive
3. Drive type: Hydraulic drive
4. Diameter of rotary center: 342mm

Other technical data:
Module: 5
Number of worm shafts: 1
Gear Ratio: 85: 1
Efficiency: 40%
Self-locking gears: YES
Weight: 64kg

Output Torque: 10.4KNm
Backwards Holding Torque: 48KNm
Tilting Moment: 67.8KNm
Radial static load rating: 222KN
Axial static load rating: 555KN
Radial dynamic load rating: 117KN
Axial dynamic load rating: 133KN

Module Trailer Slewing Drives SE14 Inch Worm Gear Reducer
