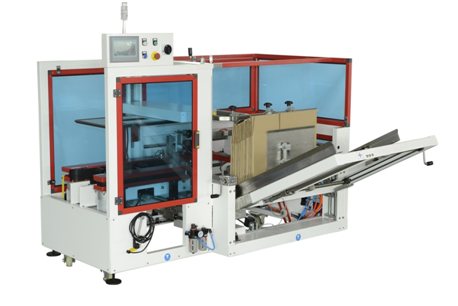

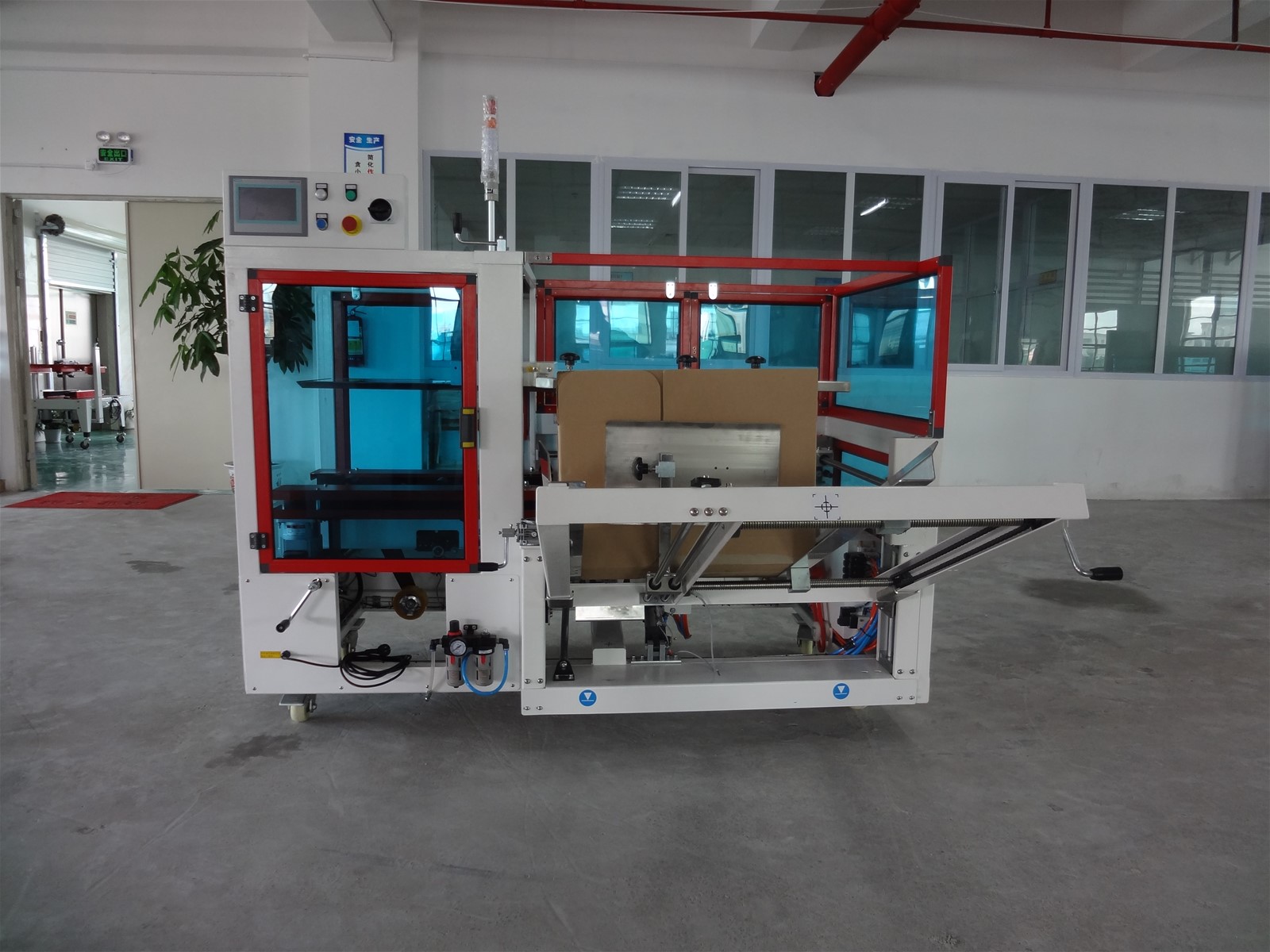

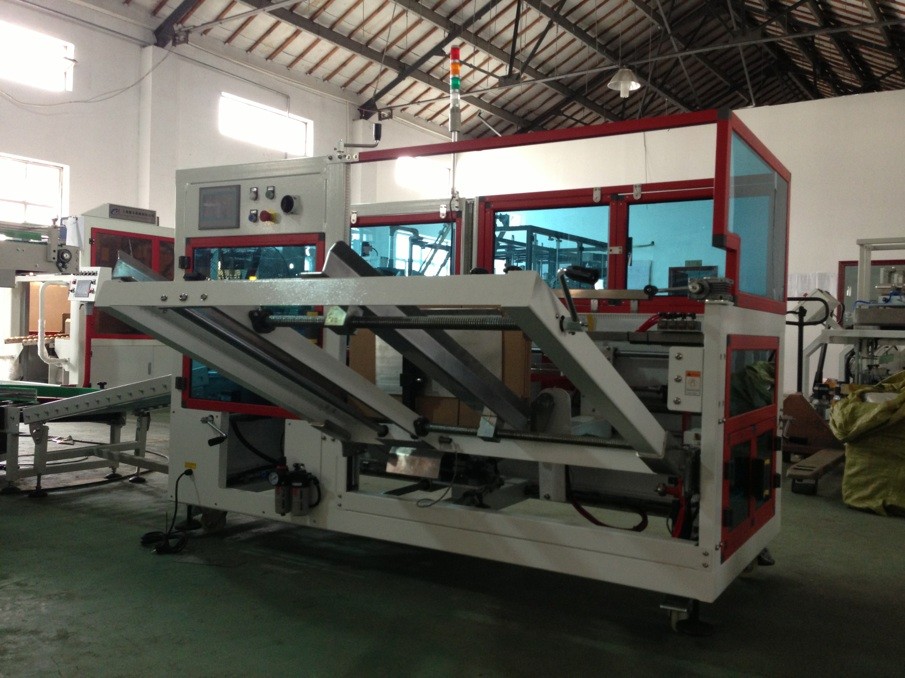

Case Erector WJ-KXJ12

FOB Price:	10,000.00 - 20,000.00 USD/Set
Supply Ability:	200 Set(s) per Year
Shipping:	15 days , Shanghai port, FOB
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

One Piece Cardboard Wrap Box Former

Price:40000.00-70000.00 USD/Piece

Min. Order:1 Piece
Insulated Concrete Forming machine/Packaging Ma...

Price:

Min. Order:
Ultrasonic Cylinder Box Forming Machine

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	SUPER-RUST PROOF PACKING, 2500MM2000MM1500MM, WOODEN BOX.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 YEAR
Certification: CE IOS9001
Weight: 400KG
Dimension(L*W*H): L2050mm*W1950mm*H1450mm
Power(W): 400W
Voltage: 220/380V
Model Number: WJ-KXJ12
Brand Name: V-PAK
Usage: Other Forming Machine
Automatic Grade: Automatic
Condition: New

Specifications

the following example is for you reference.

1.Brief Introduction:

Case Erector WJKXJ12

Case Erector Specification:
1. Vertical storage, cartons can be added at any time without stopping the machine;
2. Suitable for forming and sealing cartons of the same size.
3. Manually adjust to change the carton sizes(finishing in 2-3minutes);
4. Advanced photoelectricity induction control system
5. Rationally designed, the forming, folding and sealing process are accomplished simultaneously;
6. Cutter Safety system to prevent hands form stabbed by the cutter
7. Heavy duty built, both steel and stainless steel types.

2.Techincal parameters:

Machine model:LKX-10

Power supply:220/380V　50Hz　400W

Air source:6㎏/cm²Gas consumption 450ml/min

Machine size:L2050mm*W1950mm*H1450mm

Machine weight:400KG

Carton size(mm):L280-550*W160-400*H200-400

Belt width:48,60,75mm You can choose any one.

Capacity: ≤12CTNS/MIN

the standard machine working surface height is 650mm.

3.Performance features:
this equipment design and manufacture conform to requirement of the production process flow and plane layout, beautiful appearance generous, good manufacturing process.

this machine use less electricity and water, operation, adjustment and maintenance is simple and quick.

this machine has good protection function of self-security, such as overload protection and safety door.

with or without tape and it will give an alarm when no carton.

Storage box institution: Once it probably can be place of fifty shapeless cartons (according to the thickness of the carton), and you can be added at any time.
