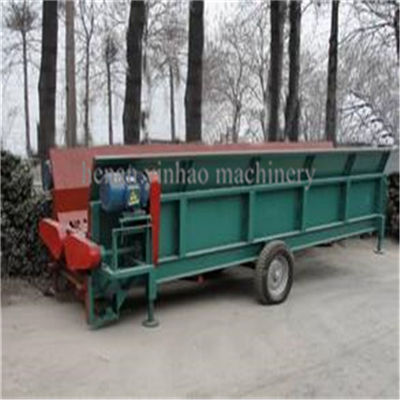

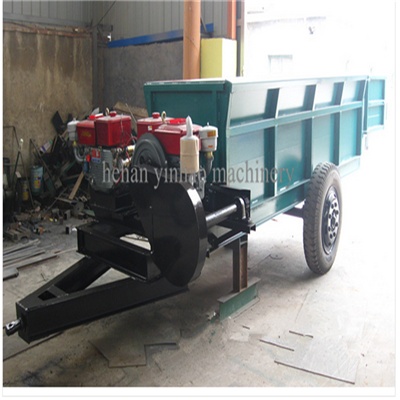

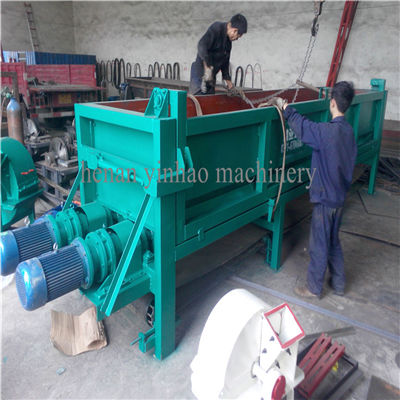

High Quality Double Roller Wood Peeling Machine/Log Debarker

FOB Price:	5,389.00 - 12,890.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	qingdao port
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	wooden case for wood debarker.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Weight: 1t
Dimension(L*W*H): 1350*2000*1900mm
Power(W): 11*2
Voltage: 220-380V
Model Number: YHWB-6
Brand Name: Yinhao
Wood Length Range: 6300
Wood Loss Rate: 10
Peeling Rate: 89
Wood Diameter Range: 5-50cm
Spindle Speed: standred
Condition: New
Name: wood debarker

Specifications

Specification

1.Tree bark peeling machine 2.Model complete 3.Low price

Vertical wood/tree/log debarker/ Low price wood log debarker/wood debarking machine

Introduction:

the machine can peel wood,also known as wood peeling machine, belonging to one of wood working machinery products.

A.Using four-edge knife, easy to use and low cost.

B.Knife plate voltage controlled by the hydraulic control,advanced structure,reliable performance.

C.Feed part adopt stepless speed.It has good peeling effect on the cold wood,curved wood,eucalyptus,oak,elm and other tree species has a good hard.

D.Peeling the net high productivity, little injury for the wood .

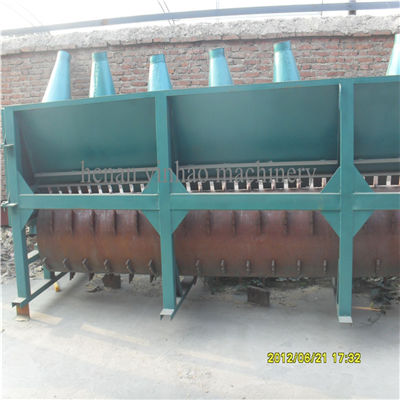

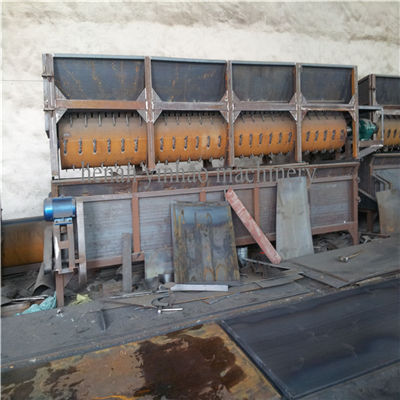

Roller type tree peeling machine

Products details:

this machine is the rotor teeth with stripping produced a unique force, so that wood in the hopper tank plate section of a recurring cycle of movement, but also around its own axis to do wood turning motion segment and irregular beating.To this paragraph with wooden teeth, wood and wood paragraph paragraph wood and keep the friction between the storage tank, impact, compression, fast bark are separated, to achieve effective peeling effect

the main technical parameters:

Single-roller:

Model	YHWB-6	YHWB-9	YHWB-12
Capacity(t/h)	5-10	10-15	15-25
Power(kw)	11*2	15*2	20*2
Length(mm)	6300	9000	12600
Width(mm)	1310	1500	1500
Height(mm)	1550	1700	1700
Weight(t)	4	5	8.5
