10gbps PIN-TIA Receiver, Bookham (Oclaro) Pt10xgc, Fiber Coupled Photo-Detector
| FOB Price: | 500.00 - 700.00 USD/Piece |
|---|---|
| Shipping: | 2 workdays |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |

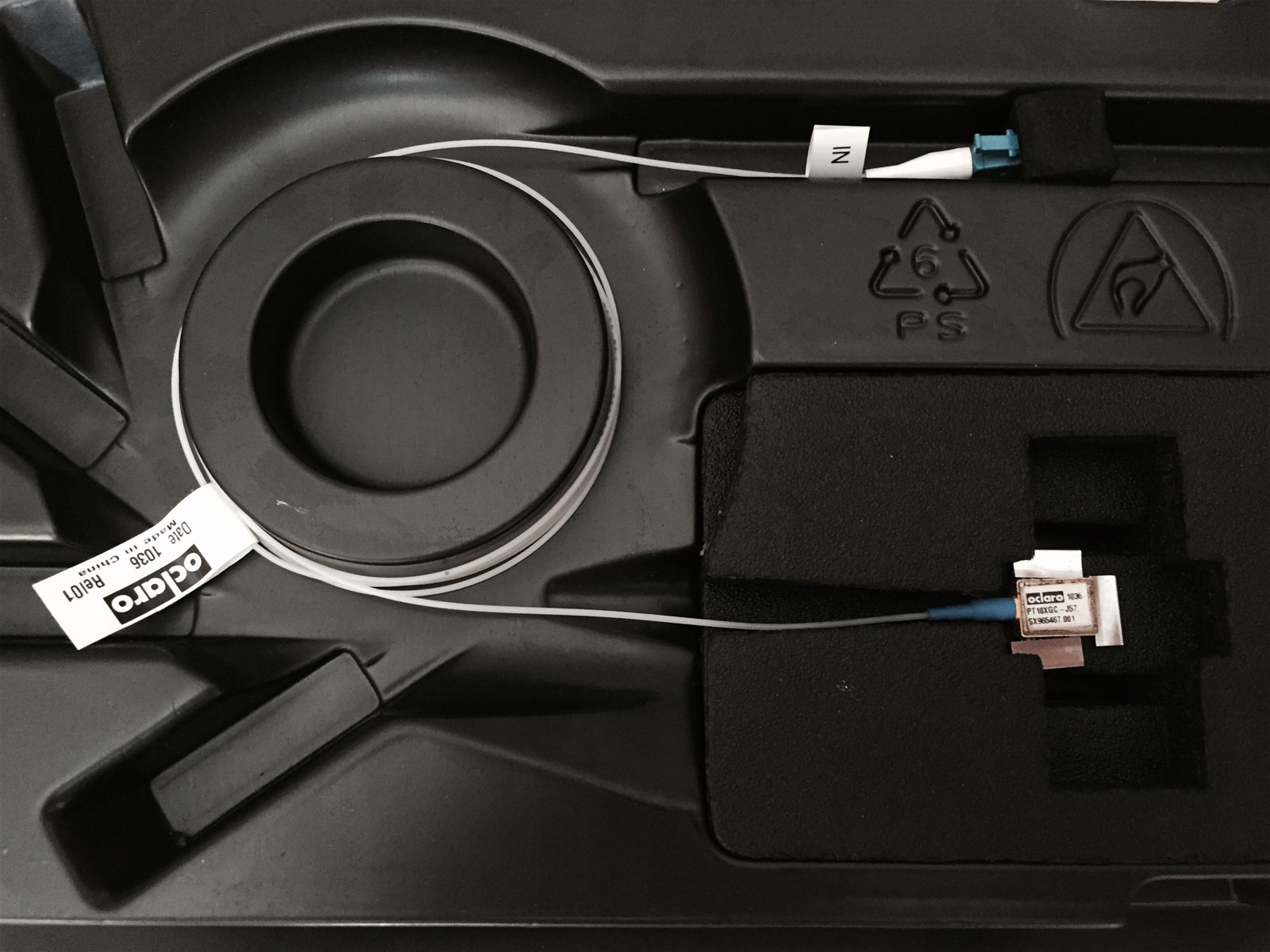

| Packaging Details: | Box |
Quick Details
- Model Number: Pt10xgc
- Brand Name: Bookham (Oclaro)
Specifications
Product Specifications/Features

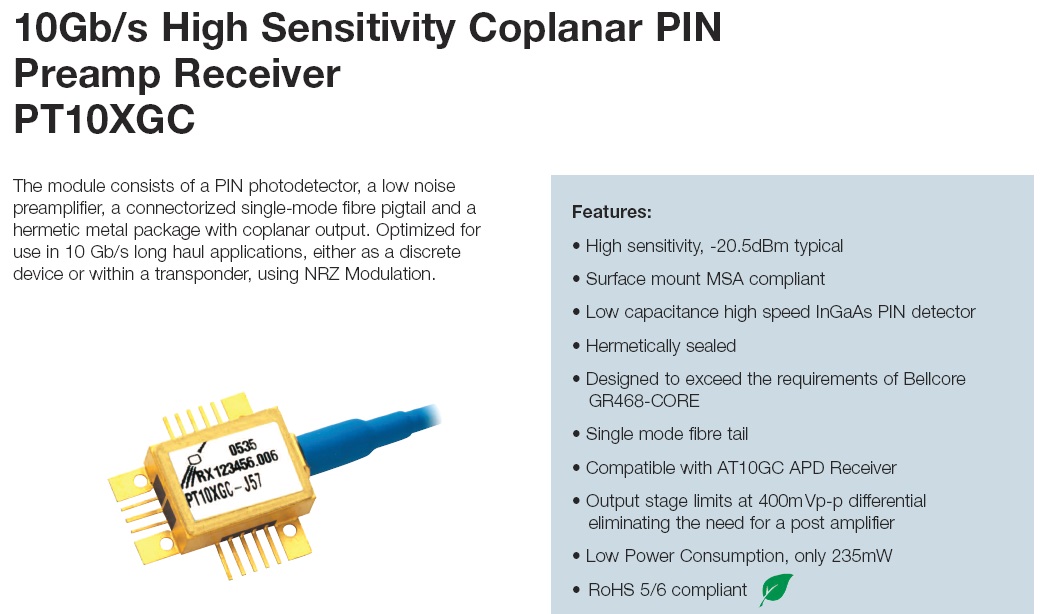

- 10Gbps PIN-TIA Receiver, Bookham (Oclaro) PT10XGC, Fiber Coupled Photo-Detector

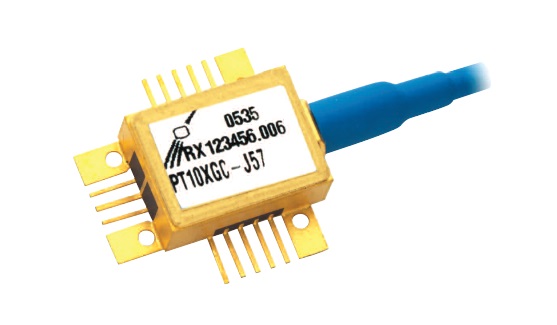

the module consists of a PIN photo-detector, a low noise preamplifier, a connectorized single-mode fiber pigtail and a hermetic metal package with coplanar output. Optimized for use in 10 GB/s long haul applications, either as a discrete device or within a transponder, using NRZ Modulation.
Features:

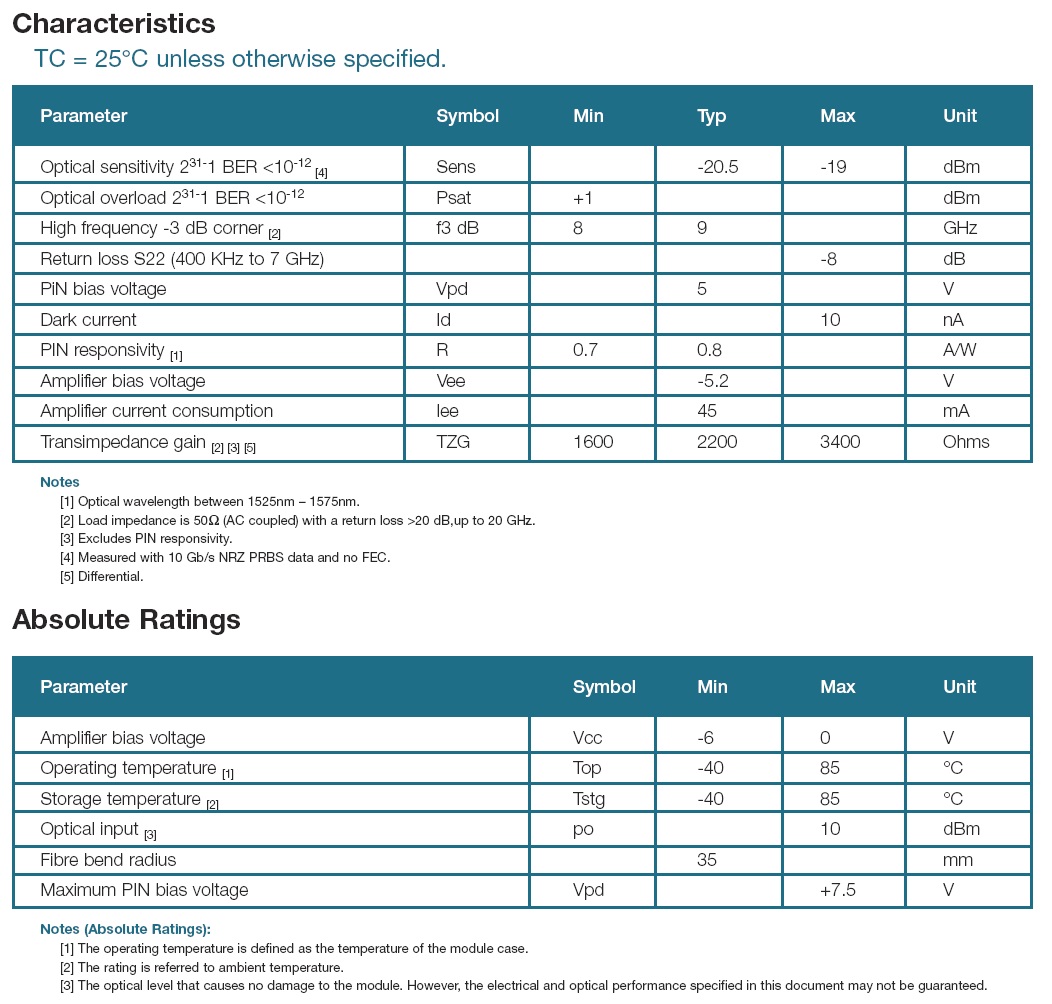

High sensitivity, -20.5dBm typical; optical saturation power, +1dBm.
Surface mount MSA compliant.
Low capacitance high speed InGaAs PIN detector.
Inner preamplifier with responsivity of 0.8A/W and trans-impedance gain 2200ohms.
Hermetically sealed with SM fiber tail and DC coupled SMA output connector
Output stage limits at 400mVp-p differential eliminating the need for a post amplifier.
Low Power Consumption, only 235mW.
Designed to exceed the requirements of Bellcore GR468-CORE
Applications
Long and short reach SONET/SDH systems
Optically pre-amplified receivers
Datacom systems up to 12.5 GB/s
