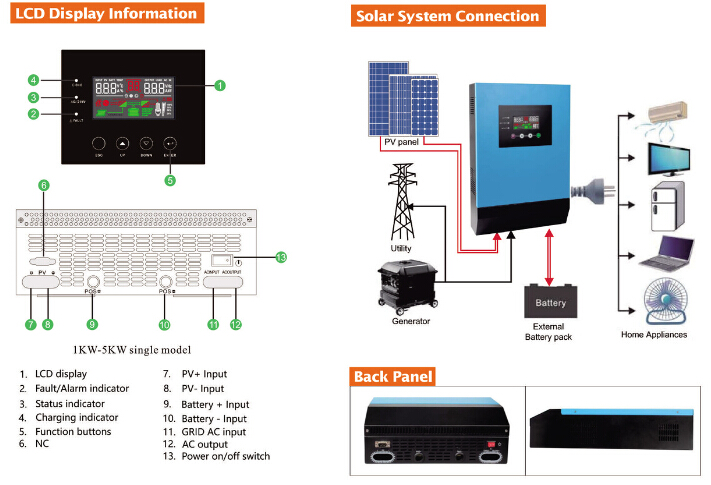

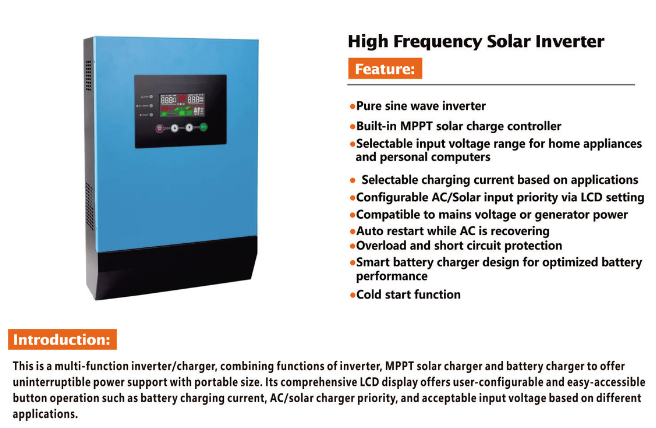

Solar Inverter PSW-3KW24
| FOB Price: | 480.00 - 500.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set(s) per Week |
| Shipping: | 10 days after payment received |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1 set/inter carton |
Quick Details
- Output Current: 10A/20A
- Output Frequency: 50/60Hz
- Type: DC/AC Inverters
- Output Voltage: 220V
- Input Voltage: 230VAC
- Weight: 9.2KG
- Size: 450*280*120
- Output Type: Multiple
- Model Number: PSW-3KG24
- Brand Name: Solar Star
Specifications
ITEM: Solar Inverter
Model No:PSW-3K24
Specification:
Input AC Voltage 230VAC
Input Selectable Voltage Range: 90~280VAC
Input Frequency Range: 50/60Hz
Output:
Voltage: 230VDA+-3%
Surger Power: 6000W
Rated Power: 3000W
Power Transfer Efficiency: 93%
Transfer Time: <10ms
Waveform: Pure sinewave
Battery and AC Charger:
Battery Voltage: 48VDC
Floating Voltage: 54VDC
over Charge Protection: 62VDC
Solar Charger and AC Charger:
Max PV Array Power: 1500W
MPPT Rang and Operation Voltage: 37~120VDC
Max PV Array Open Circuit Voltage:150VDC
Max Solar Charge Current: 60A
Max AC Charge Current: 10/20A
Max Charge Current: 70A
Standby Power Consumption: 11%
Max Efficiency:98%
General Information:
Product Size: 450*280*120
Net Weight: 9.2KG
CE & Rohs Certification
