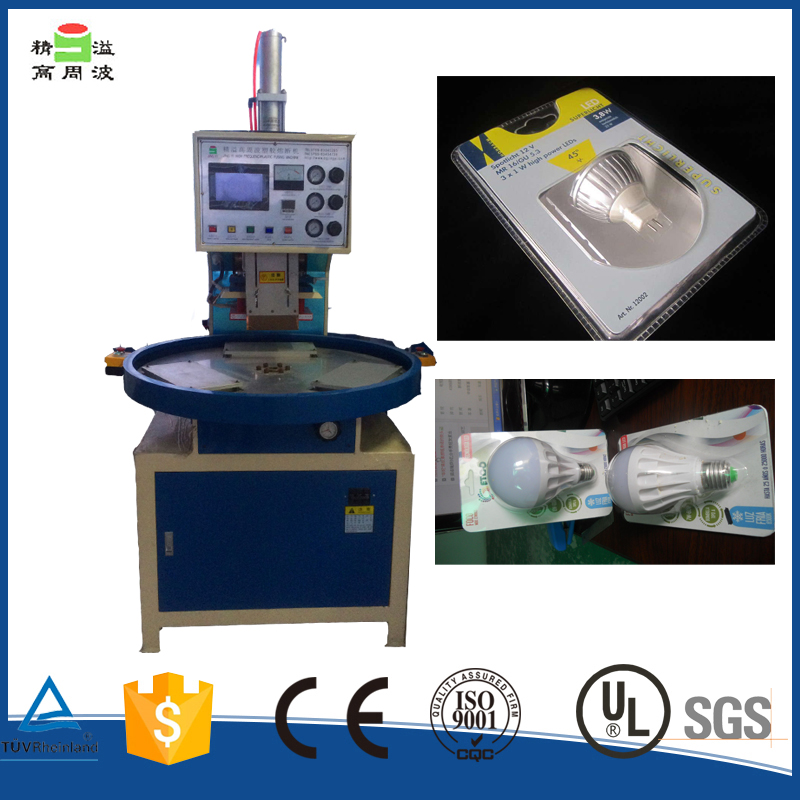

Auto High Speed Tablet Blister LED Lamp Blister Packing Machine with CE

FOB Price:	10,000.00 - 15,000.00 USD/Set
Supply Ability:	50 Set(s) per Month
Shipping:	10-20 working days after receiving the payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Strong wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Usage: APET,PETG environmentallly frinendly plastic blister package.
Weight: 600kg
Dimensions: 1500*1600*1950MM
Welding Area: 400*600MM
Frequency: 27.12MHZ
Power: 8KW
Voltage: 380V 3P 50/60Hz
Model Number: JY8000-ZTYP
Brand Name: JINGYI
Product: Blister packing sealing machine
Application: APET,PETG environmentallly frinendly plastic blister package.
OEM: Accepted
ODM: Accepted
Warranty: 1 year
Max Pressure: 800KG
Working Table Diameter: 1400MM Diameter
Machine Dimension: 1500*1600*1950MM
Machine Net Weight: 800KG
Certificate: CE approved

Specifications

Product Description

Auto high speed tablet blister LED lamp blister packing machine with ce

Features:

1. PLC+ Man-machine Interface
after a simple setting, it can process kinds of products easily and safe.

2. Automatic Operation

with easy setting system,our machine can process different kinds of products,with high efficiency and safe performance.

3. Precise Welding Combined with Cutting
in order to reduce the misplaced rejects made by traditional cutting style after welding the material with high frequency, our machine can cut it with supercharge at the position of the steel knife, which installed at the mould. It largely reduce the cost and increase the production efficiency.

4. Anti-spark electric system
When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.

5. High efficiency
this machine has three (Customize) working stations.while one station is working, the worker can put the materials on the other stations at the same time. In this case, it can make most use of the machine and labor resource

Application

Footwear,TUP/PU Shoes upper, trademarks, purses, nameplate, costume welding
& embossing, leather bag,foam,APET,PETG environmentallly frinendly plastic blister package.
Auto high speed tablet blister led lamp blister packing machine with ce

Machine Parameters

Model	JY8000-ZTYP	Machine Working Principle:
Output Power	8000W	HF Welding relies on certain properties of the material being welded to cause the generation of heat in a rapidly alternating electric field, so called dielectric heating of the material to be welded. this means that only certain materials can be welded using this technique. the dynamic electric field causes the molecules in polar thermoplastics to oscillate. Depending on their geometry and dipole moment, these molecules may translate some of this oscillatory motion into thermal energy and cause heating of the material. A measure of this interaction is the loss factor, which is temperature and frequency dependent.
Voltage	380V 3P 50/60Hz
Input Power	15KVA
Frequency	27.12Mhz
Oscillation Tube	7T69RB
Anti-Spark System	NL-5557
Max Pressure	800KG
Gap of Eletrode	170MM
Upper Eletrode Size	400*600MM
Working Table Diameter	1400MM Diameter
Machine Dimension	150016001950MM
Machine Net Weight	800KG

FAQ and Contact

Q: Are you trading company or manufacturer?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: how long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance,balance before shippment.

Pre-sale services:

1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.

Sale of services:

1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.

after-sales service:

1. Where to buy our products for 1 years warranty and life long maintenance.

2. 24-hours telephone service.

3. A large stock of components and parts, easily-worn parts.
