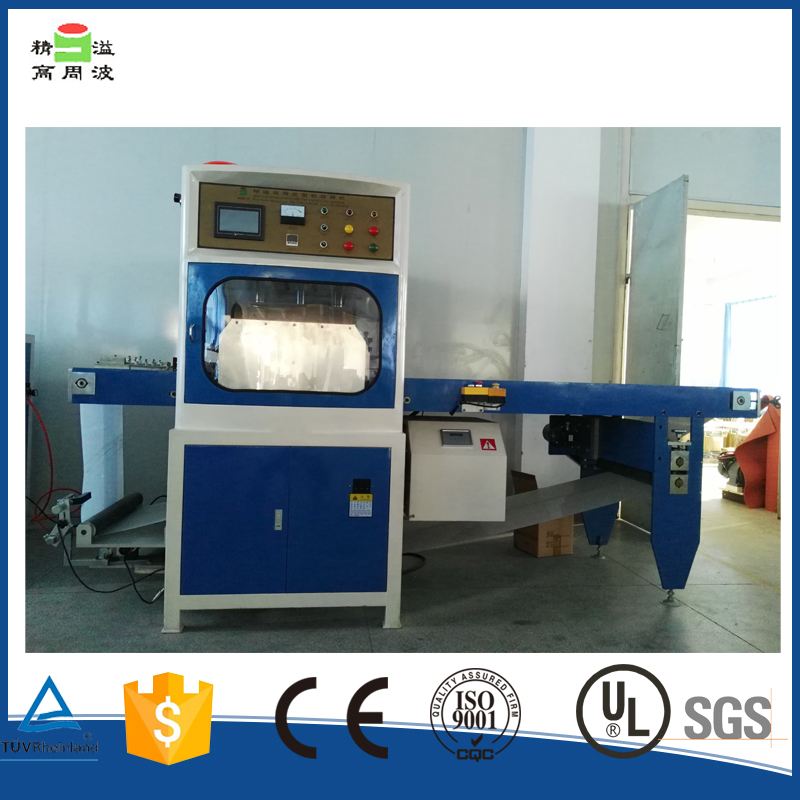

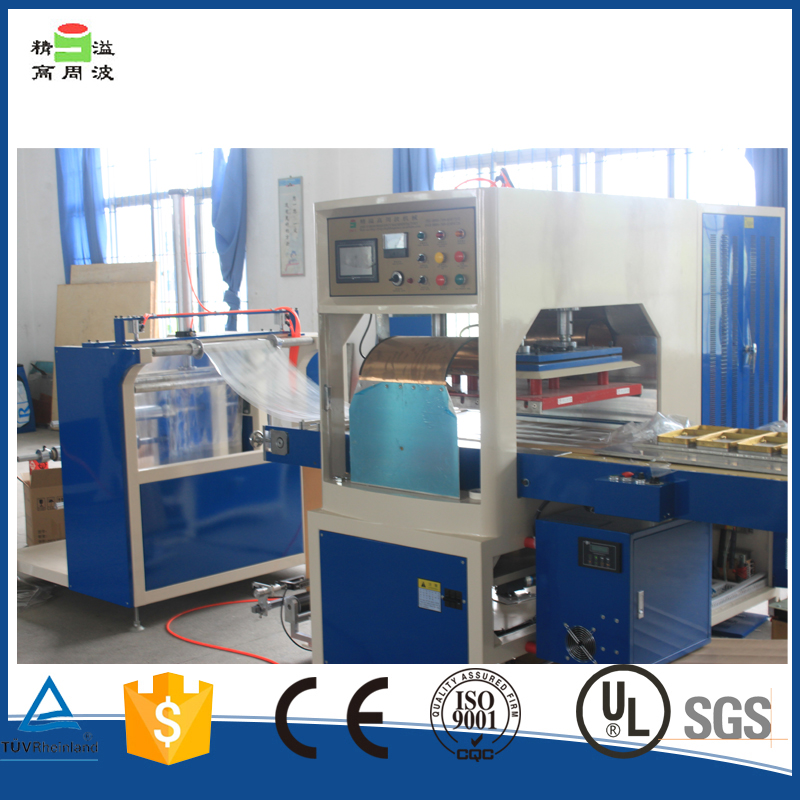

Automatic 8KW High Frequency Welding Machine for Plastic Bag Welding
| Supply Ability: | 20 Set(s) per Month |
|---|---|
| Shipping: | 20-30 working days after receiveing the payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Strong wooden case |
Quick Details
- Type: Other
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Weight: 850kg
- Voltage: AC220/380/400/415/440V 3PHASE
- Brand Name: JINGYI
- Usage: Plastic bag making machine
- Dimensions: 1950*1000*1700mm
- Model Number: JY8000H-PLC
- Welding Area: 600*700mm
- Frequency: 27.12MHZ
- Power: 8KW
- Model: JY8000H-PLC
- H.F.Output: 8KW
- Oscillation Frequency: 27.12MHZ
- Oscillation Tube: 7T69RB
- Max Pressure: 1800KG
- Electrode Size: 600*700mm
- Certificate: CE
Specifications
Features and functions:
1.PLC+man-machine interface
after a simple setting,then machine start work and make the products you want.
It is safe and eay to operate fro the workers.
2. Positioning accuracy
the machine with high-precise positioning system can easily orientating precisely. the process has been greatImproved.
3. Anti-spark protection system
When spark occur,the high sensitiveness spark protects electric system,cut high frequency power immediately to protect mould and material.
4. No high frequency radiation
this machine has a good shielding device, all the parameters has passed the inspection of the State Department.
Specification:
Model |
JY8000H-PLC |
JY15000H-PLC |
H.F.Output |
8KW |
15KW |
Oscillation Frequency |
27.12MHZ |
27.12MHZ |
Power Supply |
AC220/380/400/415/440V 3PHASE |
AC220/380/400/415/440V 3PHASE |
Input Power |
15KVA |
25KVA |
Oscillation Tube |
7T69RB |
8T85RB |
Max Pressure |
1800KG |
1500KG |
Electrode Size |
600*700mm |
600*700mm |
Max Gap of Electrodes |
180mm |
180mm |
Net Weight |
850kg |
1100kg |
Packing Size |
1950*1000*1700mm |
1950*1000*1700mm |

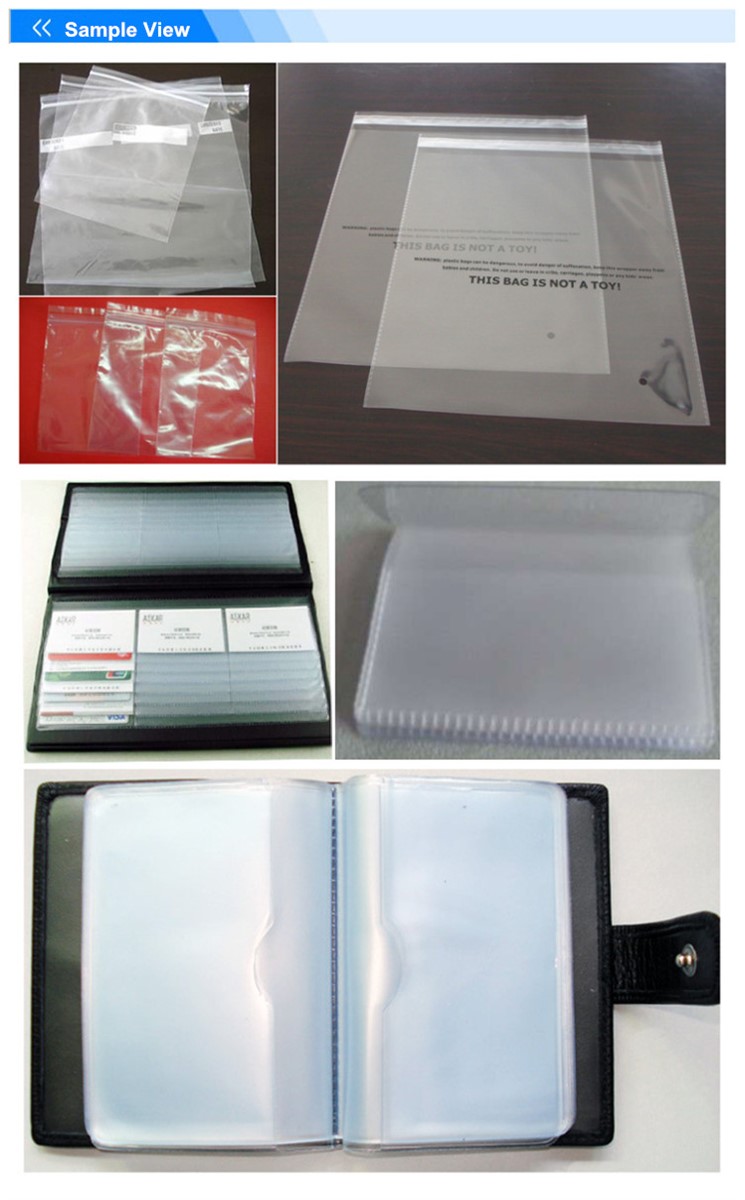

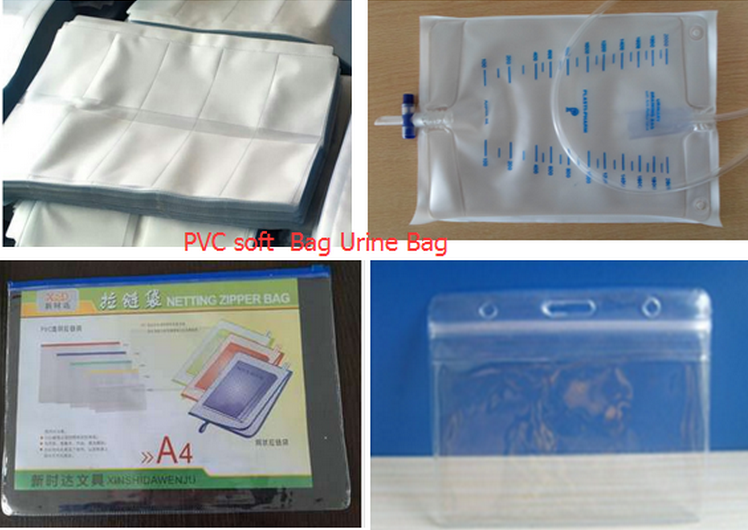

Application:
Photo album pages,PVC packing bag,PVC pouch,ID card cover,Bank card cover,
Hard PVC box folding and all PVC,PET plastic continous welding
FAQ and Contact
Q: Are you trading company or manufacturer?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: how long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance,balance before shippment.
Pre-sale services:
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
after-sales service:
1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.
