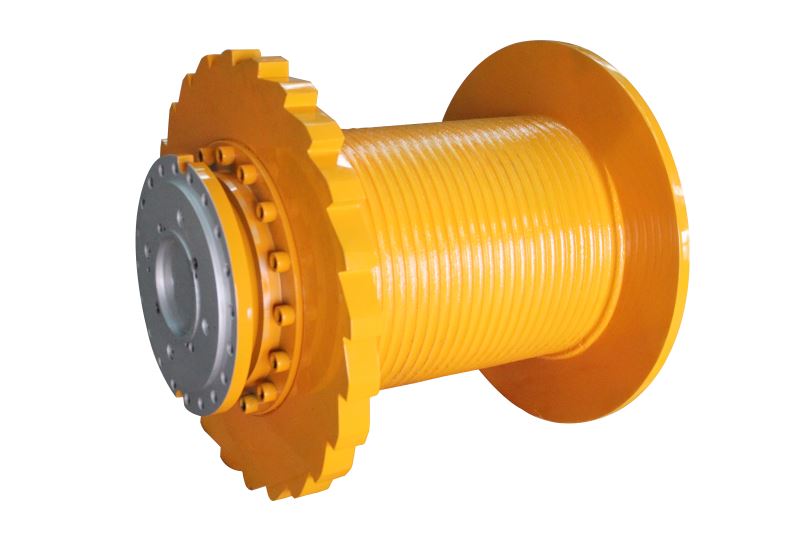

ZFT40W Winch Drive

Specifications

Feature:
High intensity planetary gearbox of modular construction.Compact structure,pace-saving,
Two or three-stage planetary gear design.Bearing system with high load carrying capacity.Simple
Mounting,Low-noise running,High efficiency,Long service lift,Easy oil change.



Technical details:
Max Output Torque
T2mx Nm:27000

Ratio:35.88;41.04;48.28;59.13;

Hydaulic Motor:Linde,Rexroth and other kinds of domestic and overseas motor are
         suitable.Desing the connection interface between motor and planetary drive
         according to customer's requirements.

Planetary gearbox weight/approx.Kg
(without hydraulic oil,motor and drum):200kg


Note:1.Planetary gearbox input direction is on contrary to the output direction.
     2.for more ratios,please contact our technical department.

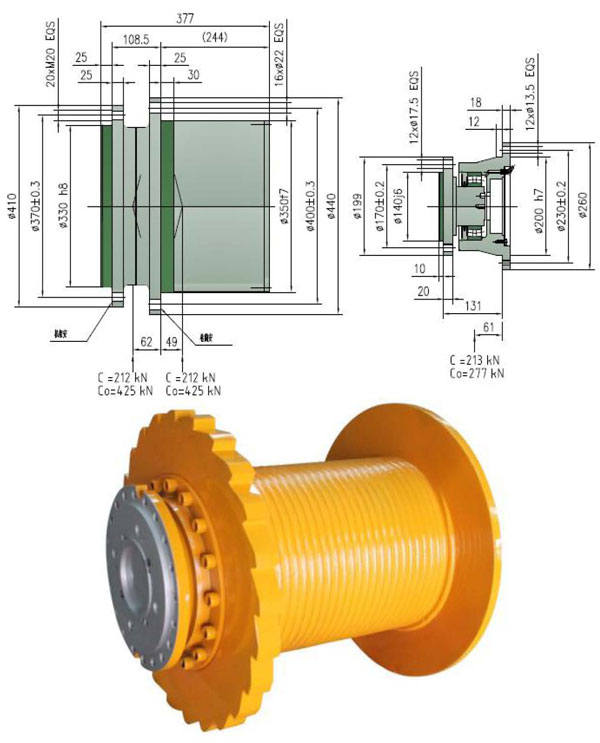

     3.Cable drum can be designed and manufactured by customer as per the drawing or
       provided by our company.
     4.Cable drum's minimum winding diameter≈Φ440(the first layer's diameter).
     5.If you require special drive solution which is out of the scope of our current
       products,please let us know,we will provide you with a modified design to better
       meet your requirements.
