Chongqing Acore Filtration Co., Ltd.
China Manufacturer with main products: Oil Purifier, Oil Purification System, Oil Filtration Machine, Transformer Oil Purifier, Lube Oil Purifier, Turbine Oil Purifier, Transformer... |

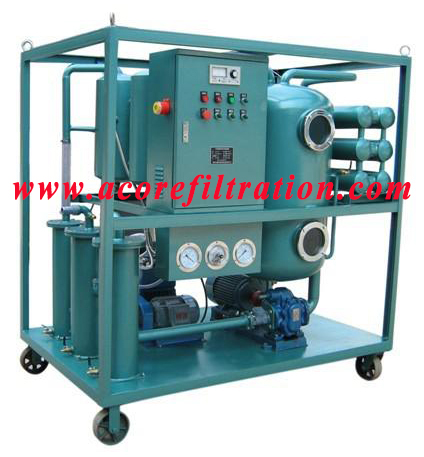

Waste Hydraulic Oil Filtration Machine
| FOB Price: | 5,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Year |
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Weight: 500-1500kg
- Dimension(L*W*H): option
- Power(W): 30-150kw
- Voltage: option
- Usage: Lubricant Oil
- Model Number: VHF
- Brand Name: Acore
- Working Pressure: 0.4Mpa
- Flow: 10-300L/h
- Condition: New
Specifications
1. the use of imported multi-layer stainless steel mesh filter and composite Polymer adsorption combination of deep-seated, high-precision DFH double rectangular Filter system, super-pollutant capacity, high filtration accuracy.
2. the use of strong magnetic filter material, can effectively remove iron and Other metal impurities. The use of imported polymer materials, completely Breaking emulsification, coalescence and vacuum separation of complex Three-dimensional flash combination, dehydration, faster degassing More Thorough.
3. VHFHydraulic Oil FiltrationMachine Adopts the leading multi-stage U type carbon fiber far-infrared heater, high Efficiency, uniform heating, energy saving.
4. the use of infrared level controller for oil and equipment out of automatic Control to ensure that the oil out of balance.
VHFHydraulic Oil FiltrationMachine use Physical filtration treatment, which can't hurt the nature of oil and various Additives, strong wind cooling technology, steam rapidly condenses, settles, and protects the vacuum pump.
Working Principle:
Vacuum pump makesHydraulic oil filtrationMachine
Working on vacuum condition, the contaminated hydraulic oil is sucked into
Primary filter by in the external atmospheric pressure, large particles of
Impurities are removed, then into heater. after heating, it flows into the
Water Vacuum separator through the special divergence device. The divergent
Unit produces a large surface area exposing the contaminated fluid to a
Relatively low vacuum, thereby removing water, air and gases from the oil.
Evaporated water vapor, gas mixture is condensed into a liquid in cooler and
Collected into the water reservoir, the remaining gas is pumped out by vacuum
Pump. after vacuum separator, the oil pump takes oil into second filter and
Fine filter to remove remained impurities. Worker can check the quality of oil.
If it reach the standard, the clean oil can be pumped out. If not, worker can
Open the inner-recycling valve to do re-circulating purification.
