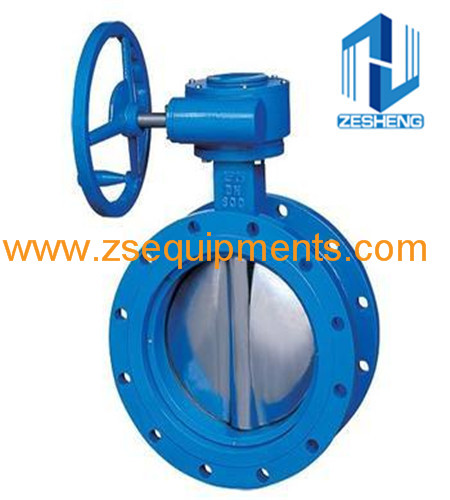

Marine Butterfly Valve

FOB Price:	888.00 - 8,888.00 USD/Piece
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Quick Details

Brand Name: JIS
Media: Water
Temperature of Media: Medium Temperature
Material: Brass
Power: Hydraulic
Pressure: Medium Pressure
Structure: Butterfly
Standard or Nonstandard: Standard

Specifications

the following example is for you reference.

1.Brief Introduction:

Design Standard: ISO

Size: DN50-DN1200

Working Pressure: 1.0Mpa,1.6Mpa

Operation Type: Lever or Worm Gear

2.Techincal parameters:

1-Body: Cast Iron, Ductile Iron, Cast Steel, Bronze, Stainless Steel, Aluminum Alloy.

2-Stem: Stainless Steel

3-Disc: DI or WCB with galv, Stainless Steel, Bronze

4-Gear: Ductile Iron

5-Seat: NBR, EPDM,CR,FKM,VITION,PTFE

6-Busing: PTFE

7-O ring: NBR

8-Pin: Stainless Steel

3.Performance features:

the Service Temperature for Seat Material:

Rubber Seat Material	Service Temperature range ℃	Kind of Fluid
NBR	0-70	Sea water, fresh water, bilge, ballat,liquefied gas,lubricating oil,fuel oil,cargo oil,hydraulice oil
CR	0-70	air
EPDM	0-120	Sea water, fresh water, acid gas
FKM	0-90	Cargo oil

the flange size is manufactured according to ISO, JIS, GB, DIN standard.

Lead Time: around 35 Days

Certificate: ABS, BV, CCS, DNV, GL, LR, KR, NK, RINA, RS
