Shijiazhuang Jiemu Machinery Equipment Co., Ltd.
China Manufacturer with main products: AH Slurry Pump, SP Slurry Pump, Pump Assembly, Shaft, Bearing Assembly, Volute Liner, Impeller, Frame Plate |
Home
>Products Catalog > 6/4e-Ah (R) Slurry Pump Heavy Duty Mineral Processing Centrifugal Coal Mining Slurry Pump

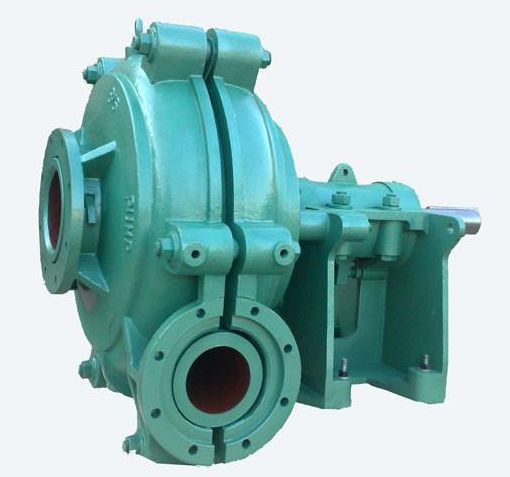

6/4e-Ah (R) Slurry Pump Heavy Duty Mineral Processing Centrifugal Coal Mining Slurry Pump
| FOB Price: | 1,500.00 - 15,000.00 USD/Set |
|---|---|
| Supply Ability: | 60 Set(s) per Month |
| Shipping: | Tianjin Port |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | Shipped in 25 days after payment |
Quick Details
- Application: gold, silver, iron ore, coal mining
- Model Number: 6/4e-Ah (R) Slurry Pump
- Brand Name: Gempump
- water pump: yellow
- slurry pump: blue
Specifications
6/4E-AH(R) Slurry Pump performance parameters
| TYPE | IMPELLER | LINER | MAX. POWER | FLOW(l/s) | HEAD(m) | SPEED(r/min) | MAX.Eff | NPSH(m) |
| 6/4E-AH | METAL | METAL | 120KW | 45 - 100 | 12 - 56 | 800 - 1550 | 65% | 5 - 8 |
| 6/4E-AHR | RUBBER | RUBBER | 120KW | 40 - 90 | 12 - 45 | 800 - 1350 | 65% | 3 - 5 |
Packaging & Delivery
Packaging Details:
Plywood case or depend on customers requirement
Delivery Detail:
Shipped in 25 days after payment
Introduction:
Type AH pumps are cantilevered, horizontal, centrifugal pumps, the shaft seal adopts gland seal or centrifugal seal.the discharge of AH pumps can be positioned at intervals of 45 degrees as request.It is widely used in the mining, metallurgy, power, chemistry, and construction industry. AH types are designed for handling slurries with strong abrasiveness and high density, they can be operated in parallel. AH pumps have interchangeable hard alloy or elastomer liners and impellers while.
Material:
| Part name | Pump casing | Impeller | Shaft | Seal-ring on pump casing |
| Material | Cast iron Ductile iron Cast steel Stanless steel |
Bronze Cast iron Bronze/brass Stainless steel |
Carbon steel Stainless steel |
Bronze Cast iron Brass Stainless steel |
Specification:
| Slurry Pump | Slurry Pump |
| Sludge Pump | Molasses Price Centrifugal Slurry Pump |
| Model | CMAH |
| Material | High Chrome or Rubber Lined |
| Mode | Horizontal |
| Color | Yellow and adjustable |
| Theory | Centrifugal Pump |
| Structure | Single-stage Pump |
| Usage | Slurry |
| Power | Electric |
| Standard or Nonstandard | Standard |
| Fuel | Diesel |
| Pressure | High Pressure |
| Application | Mining, coal mine, gold mine |
| Outlet Diameter | 40-350mm |
| Capacity | 10.8-5400m3/h |
| Head | 3-118m |
| Rotation Speed | 300-3800r/min |
| Power | 15-1200kW |
| Warrenty | 1 Year |
| Certificate | ISO9001 |
| Feature | High efficiency,Easy maintenance |
Detail:
A. Horizontal single-stage centrifugal pump
B. Flow-passage parts: High chrome alloy lined
C. High efficiency
D. Easy maintenance
E. Light weight and long service life time
F. ISO9001
G. OEM Service
| AH?Slurry Pumps Performance Parameters | ||||||||
| TYPE | IMPELLER | LINER | MA/. POWER | FLOW(l/s) | HEAD(m) | SPEED(r/min) | MA/.Eff | NPSH(m) |
| 1.5/1B-AH | METAL | METAL | 15KW | 3.5 - 8 | 6 - 68 | 1200 - 3800 | 40% | 2 - 4 |
| 1.5/1B-AHR | RUBBER | RUBBER | 15KW | 3 - 7 | 7 - 52 | 140 0- 3400 | 35% | 2 - 4 |
| 2/1.5B-AH | METAL | METAL | 15KW | 9 - 20 | 6 - 58 | 1200 - 3200 | 45% | 3.5 - 8 |
| 2/1.5B-AHR | RUBBER | RUBBER | 15KW | 7 - 15 | 5.5 - 41 | 1000 - 2600 | 50% | 2.5 - 5 |
| 3/2C-AH | METAL | METAL | 30KW | 11 - 24 | 12 - 64 | 1300 - 2700 | 55% | 4 - 6 |
| 3/2C-AHR | RUBBER | RUBBER | 30KW | 10 - 21 | 13 - 46 | 1300 - 2300 | 60% | 2 - 4 |
| 4/3D-AH | METAL | METAL | 60KW | 24 - 55 | 9 - 52 | 1000 - 2200 | 71% | 4 - 6 |
| 4/3D-AHR | RUBBER | RUBBER | 60KW | 22 - 50 | 5 - 34.5 | 800 - 1800 | 59% | 3 - 5 |
| 6/4E-AH | METAL | METAL | 120KW | 45 - 100 | 12 - 56 | 800 - 1550 | 65% | 5 - 8 |
| 6/4E-AHR | RUBBER | RUBBER | 120KW | 40 - 90 | 12 - 45 | 800 - 1350 | 65% | 3 - 5 |
| 8/6E-AH | METAL | METAL | 120KW | 100 - 230 | 10 - 61 | 500 - 1140 | 72% | 2 - 9 |
| 8/6E-AHR | RUBBER | RUBBER | 120KW | 90 - 200 | 7 - 49 | 400 - 1000 | 65% | 5 - 10 |
| 10/8ST-AH | METAL | METAL | 560KW | 178 - 380 | 11 - 61 | 400 - 850 | 71% | 4 - 10 |
| 10/8ST-AHR | RUBBER | RUBBER | 560KW | 150 - 330 | 12 - 50 | 400 - 750 | 75% | 4 - 12 |
| 12/10ST-AH | METAL | METAL | 560KW | 260 - 550 | 7 - 68 | 300 - 800 | 82% | 6 |
| 12/10ST-AHR | RUBBER | RUBBER | 560KW | 200 - 450 | 7 - 45 | 300 - 650 | 80% | 2.5 - 7.5 |
| 14/12ST-AH | METAL | METAL | 560KW | 350 - 770 | 13 - 63 | 300 - 600 | 77% | 3 - 10 |
| 14/12ST-AHR | RUBBER | RUBBER | 560KW | 320 - 700 | 13 - 44 | 300 - 500 | 79% | 3 - 8 |
Contact Me for More Details and Privilege.
