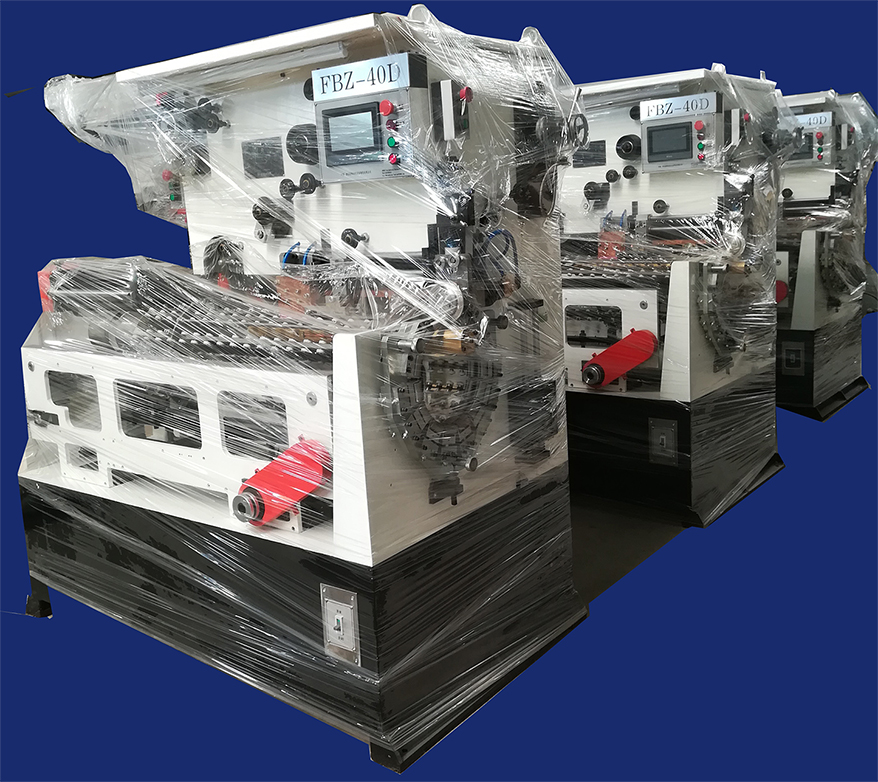

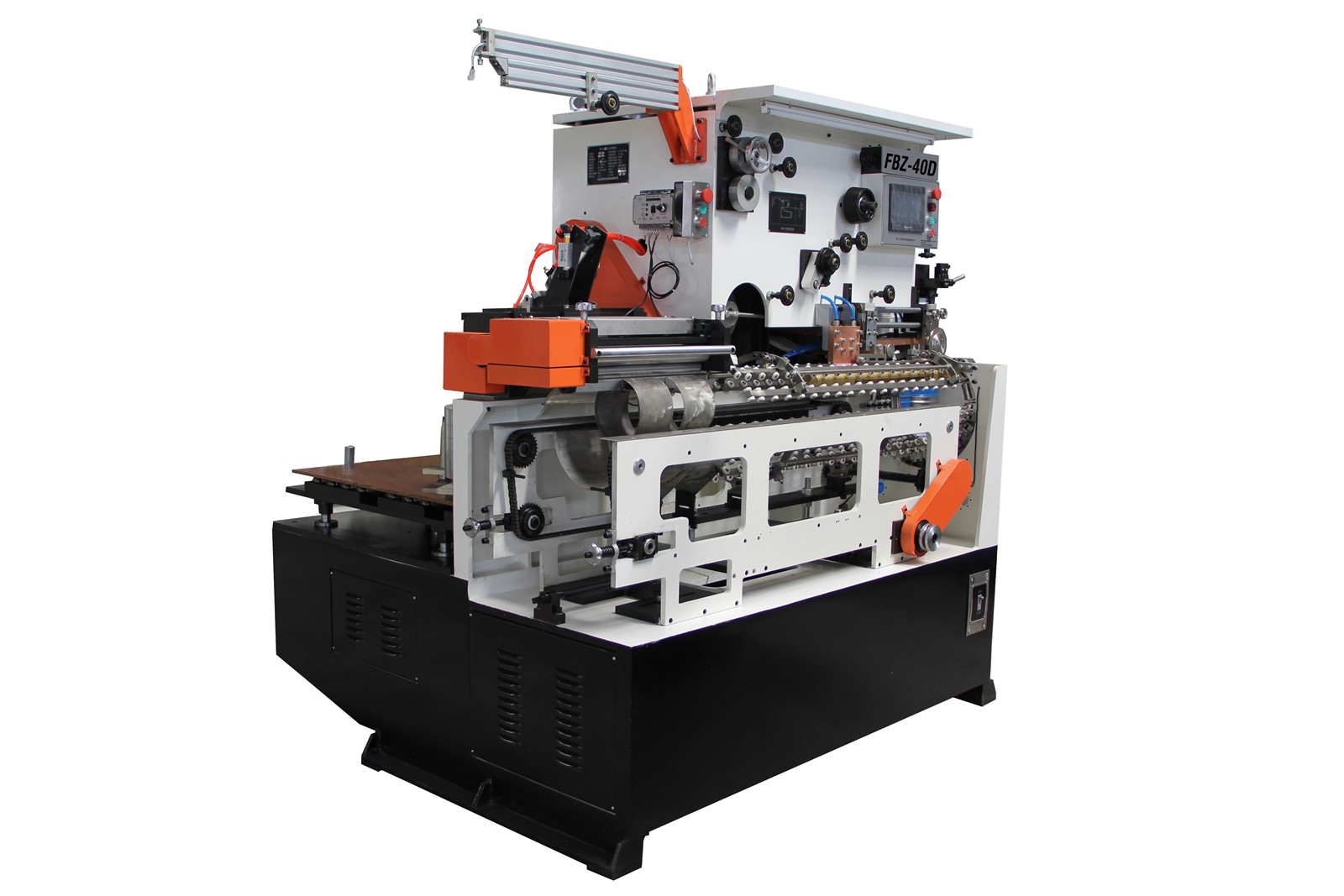

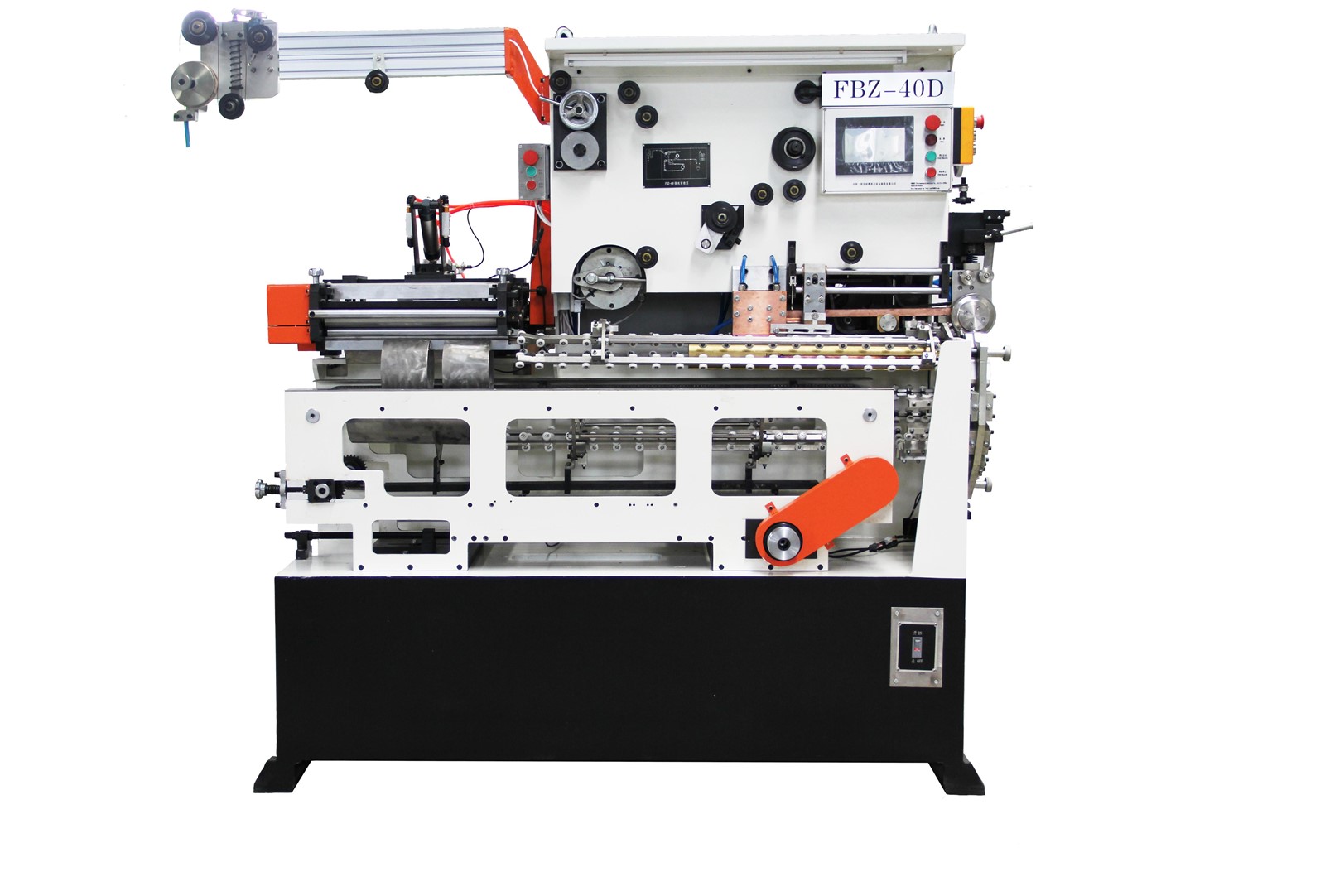

FBZ-40D Automatic Tin Can Body Forming & Welding Machine
| Supply Ability: | 10 Set(s) per Month |
|---|---|
| Shipping: | 45 days from Shanghai |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shaanxi in China |
| Packaging Details: | The nomal package is plastic and wooden box. |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Voltage: 380V
- Brand Name: SH
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Voltage: 380V
- Brand Name: SH
- Condition: New
- Weight: 2000kg
- Model Number: FBZ-40D
- Type: Packaging Line
- Packaging Material: Wood
Specifications
1.Brief Introduction:
this machine is a functional equipment of automatic roll-forming, automatic conveying cans and automatic welding. the diameters of welding cans on this machine can be slightly adjusted. It can weld the cans automatically with a very high speed. PLC and touch screen's control makes it easy to operate and the frequency welding makes its products handsome in shape and stable in performance. this machine has been sold well all over the world. See the machine's processing video at .
Materials |
Tin,Substrate iron |
Total power |
40KVA |
Materials' thickness |
0.180.40mm |
Power supply voltage |
3phase AC380V/50Hz |
Can diameter |
150290mm |
COoling water flow |
7L/min |
Can height |
180450mm |
Cooling water pressure |
0.4Mpa |
Roll-forming speed |
50m/min |
Cooling water temperature |
20 |
Seam overlap |
0.41.5mm |
Air pressure |
0.5Mpa |
Welding speed |
625m/min |
Air flow |
40L/min |
Welding frequency |
80200Hz |
Dimension |
1.6m1.2m1.9m |
Copper wire diameter |
1.51.8mm |
Total weight |
2000Kg |
3.Performance features:
Exchange history:
FBZ-40D, FBZ-40C, FBZ-40Q, FBZ-40X all belong to FBZ-40 series automatic can body forming and welding machines. To be honest, these machines have been hot since they were born. Besides all over the China, the machines have been sold to overseas markets, including India, Vietnam, Turkey, America, Canada and so on. A big can making company in Guangdong Province, China, bought 26 sets of these machines in total from our company. All in all, FBZ-40 series automatic can body forming and welding machines are the best can making equipment.
4.Our advantages:
1).We are the can machines manufacturer, we can totally decide the price of any machine.
2).about 30 years experience and reputation both at home and abroad;
3).Quality Assurance, excellent after service and reasonable price;
4).Reliable and safe to control, easy to operate and maintain;
5).Equipped with human-computer interface and PLC; adopt digital control technology;
6).Full automatic, semi-automatic, and multi mould, suitable for different cans' shapes and sizes.
We Will provide our customers with the best products of best price and Service, so if you have any problem about the machines, please don't hesitate toContactus.
Welcome to visit our company!
Welcome to negotiate business with us!
