HSM Factory Price Limestone Double Roll Crusher Design

FOB Price:	1,800.00 - 9,999.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	china main port
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Low Noise Flake Crusher

Price:

Min. Order:1 Set
GPY High-Energy Hydraulic Cone Crusher

Price:

Min. Order:1 Set
Type Crusher

Price:10800.00-32800.00 USD/Set

Min. Order:1 Set
Transfer Screen Rolling

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	1.Rust-proof and moisture-proof before delivery. 2.Free fumigation plywood case for single machine,larger parts are wrapped by plastic sheeting. 3.Export standard container 20GP,40GP,40HQ,etc. for production line. 4.Other packaging according to your special requirement.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 2 YEARS
Certification: ISO CE
Weight: as required
Dimension(L*W*H): as required
Model Number: 2PG
Brand Name: HSM
Capacity(t/h): 2-140t/h
Power(W): 5.5-90kw
Motor Type: AC Motor
Application: crushing
Type: Roller Crusher
Condition: New
product name: double roll crusher design
max feeding size: 50mm
minimum discharging size: 2mm
material: high manganese steel
Spare parts supply: Anytime
Testing: Before delivery

Specifications

Double roll crusher design Features

1. Available for ore dressing, chemical, cement, refractories, abrasive, building materials industries.

2. with the more excellent effect than general stave machinery.

3. Finely crushing all kinds of ore and rock below the high, medium hardness,which can make the minimum grain size below 100 mesh.

4. Stable operation, easy maintenance, low cost and output size adjustable.

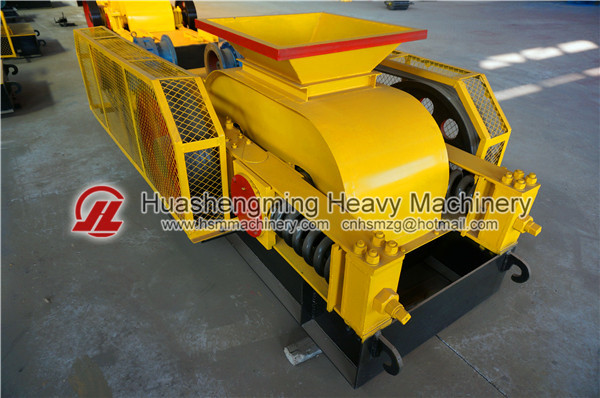

HSM factory price limestone double roll crusher design

Double roll crusher design Applications

Roll crusher applies to crushing medium hardness materials such as coke, sinter, limestone,various metal ore and nonmetal ore.It is most suitable for medium and fine crushing in small and medium-sized nonmetal mines and chemical industry.the minimum size can reach 100 mesh.

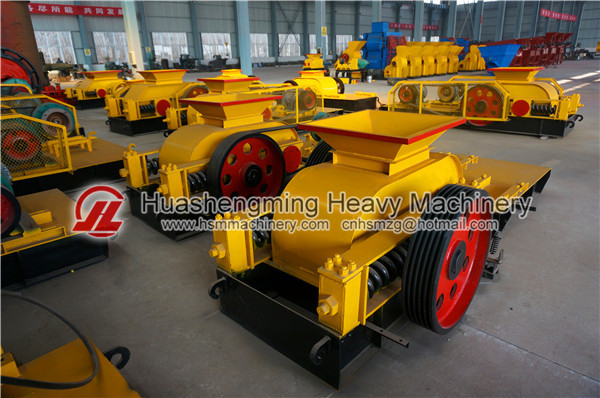

HSM factory price limestone double roll crusher design

Double roll crusher design Working principle:

the motor drives the fixed roller and movable roller to work via reducer, V-belts or coupling. Materials are put into the space between the two rollers via the feed entrance, as the two rollers inward turning, the input materials are crushed, pressed, ground, and at last come out from the base of the machine.When there are unbreakable materials or the material is too hard, the roller will concede automatically under the effects of spring and hydraulic pressure, which will widen the clearance between the rollers and make the hard or unbreakable so as to avoid damaging the machine. The clearance between the two rollers can be adjusted to change the sizes of final products.

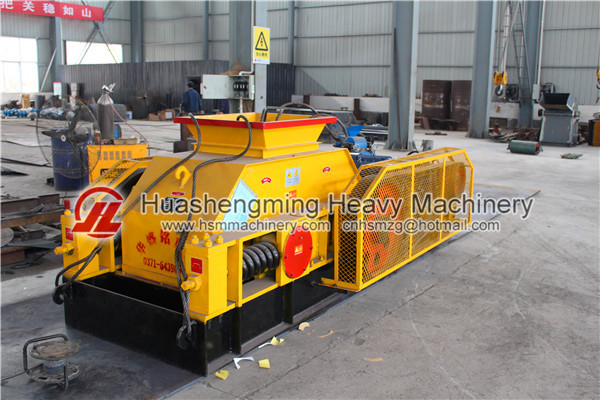

HSM factory price limestone double roll crusher design
