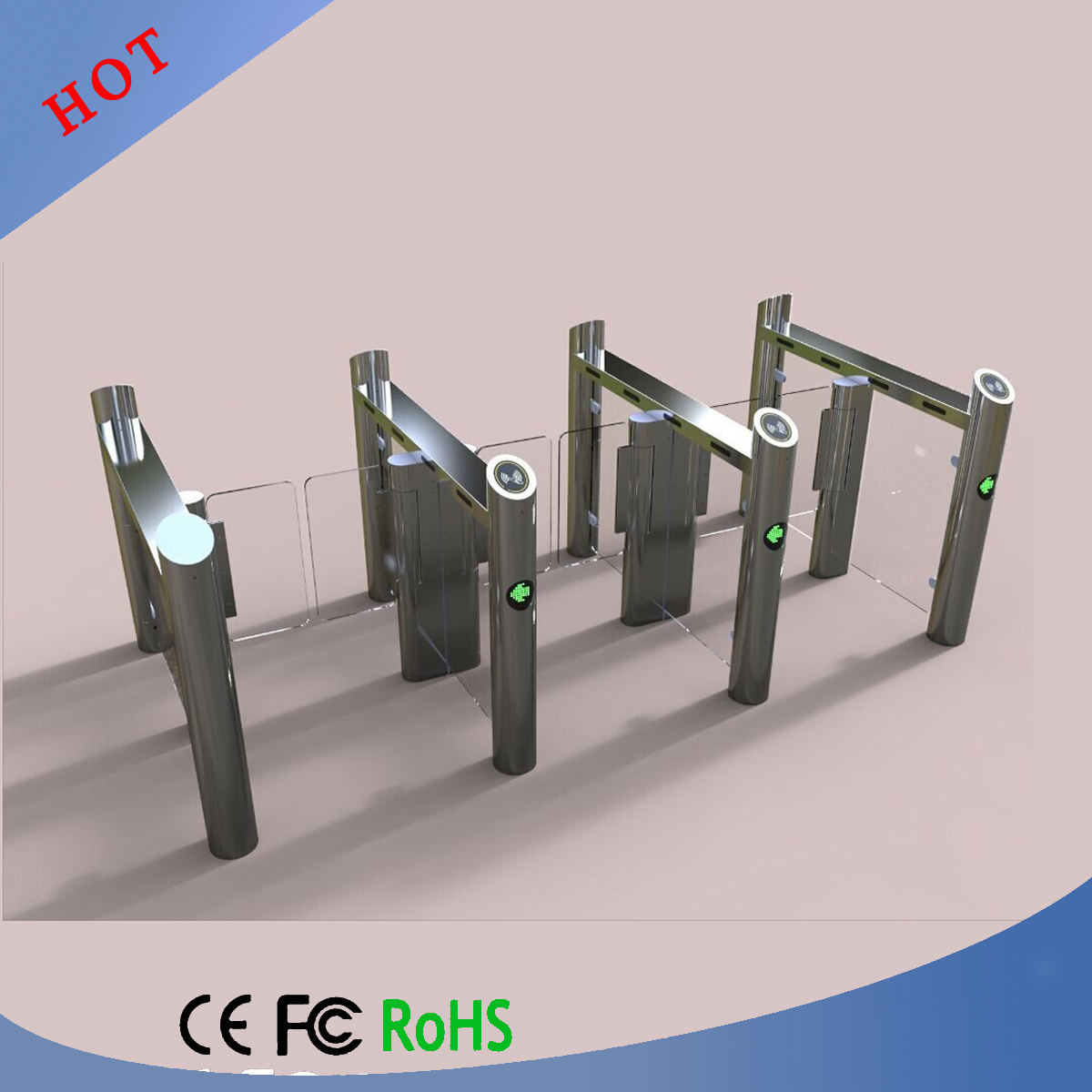

Entrance Control Flexible Security High Quality Electrical Standard Automatic Swing Barrier Gate
| FOB Price: | 1,500.00 - 3,000.00 USD/Piece |
|---|---|
| Supply Ability: | 2,000 Piece(s) per Month |
| Shipping: | Sample order takes 5~7 days, bulk order takes 15~25 days. |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Poly-film for naked machine, then a foam to anti-shake, carton for cover, then surface should be in |
Quick Details
- Model Number: ECCV-BTS02
- Brand Name: Showay
- Name: High Speed Gate
- Material: SUS304 Stainless Steel
- Color: Customized Color
- Coarting: Brush,powder, PPG,etc
- Open Direction: Single Direction/Bi-Direction
- Packing: Poly film+foam+woodencase
- Application: Access Control System
Specifications
Product Specification:
Entrance Control Flexible Security High Quality Electrical Standard Automatic Swing Barrier Gate
Product application:
1.High Barrier gate are compact and cost-effective entrance
Solutions.
2.the body is made of brushed stainless steel which is robust,
Rigid, anti-rust and durable.
3.High Barrier gate is ideal for indoor and outdoor settings.
4.It can be integrated with any kind of access controller system
(e.g.: RFID device, Push button, Fingerprint and Biometric device).
Case of emergency, the High Swing Barrier gate will drop down
When power off.
7.It is suitable for all kinds of places
Product Features:
1.Fault self-test and alarm functions,convenient user maintenance and using
2.Via the control board Built in a small dish,Programmable devices running status
3.Anti-Pinch mechanical structure,anti-bumps function, when the swing arm reset process meet resistance, within a limited time automatically stops the motor, the default delay after the reset again (until reset), and the force is very small (≤2Kg )
4.Break into protection function, when the gate signal is not received, the arm automatically locked
5.Relative with a variety of reader device attached,working when receive relay switch signal
6.Remote control and management by the management computer
7.Power-off arm Automatic open,turn on automatically closed, can meet fire safety requirements
8.Pinch function (bridge type four pairs of infrared optional)
9.Accurate logic judgment and infrared reset function (4 or 6 pairs of infrared)
10.Counting function (optional)
Power voltage |
AC220 ±10% V/50 ±10% HZ |
Drive voltage |
DC 24V |
Pass speed |
50person/minute(always open),35-40person/minute(always close) |
Dimension |
420*330*980mm |
Cover thickness |
1.5mm |
Cabinet thickness |
1.2mm |
Open direction |
Unidirectional or bidirectional |
Input interface |
Dry contact signal or 12v DC level or 12v pulse≥100ms,drive current≥10mA |
Length of the bar |
≤300mm, Standard bar length 260MM |
Channel width |
≤600mm |
Open angle |
180° |
Running life |
Continuous Opening and Closing OperationMore Than 3 million times |
Relative humidity |
≤90%,None-condensation |
Communication port |
TCP/IP |
System connection:
Production Application:
Product Application and cases show:
Product customized:
Product packing:
Shipping:
* Sample order takes 5~7 days, bulk order takes 15~25 days.
* Shipping way: FedEx, UPS, DHL, TNT, EMS, by sea or by air, according to customer's advise.
Our advantages:
1. One of the leading and professional manufacturers in China
2. High quality products and competitive price
3. Good service, with 15 months warranty
4. OEM & ODM are welcome
5.We
Can provide SDK development or Software Data base connection port.
