Jinan Jiuxu Machinery Co., Ltd.
China Manufacturer with main products: Polyurethane Foaming Machine, Polyurethane Sprayer, Polyurethane Injection Machine, Foaming Machine, Polyurea Spray Machine, Polyurethane... |
Home
>Products Catalog > Polyurethane Foaming Machine for Sale, Polyurethane Spray Machine In Stock, High-Pressure Foaming Machine Supplier
Polyurethane Foaming Machine for Sale, Polyurethane Spray Machine In Stock, High-Pressure Foaming Machine Supplier
| FOB Price: | 3,000.00 - 4,000.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set(s) per Year |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | exporting wooden box |
Quick Details
- Processing Type: Foaming Machine
- After-sales Service Provided: No overseas service provided
- Weight: 109kg
- Dimension(L*W*H): 750*560*1130mm
- Power(W): 7.5KW
- Voltage: 220V single phase 50HZ
- Model Number: JNJX-III(E)
- Brand Name: Jiuxu
- Condition: New
Specifications

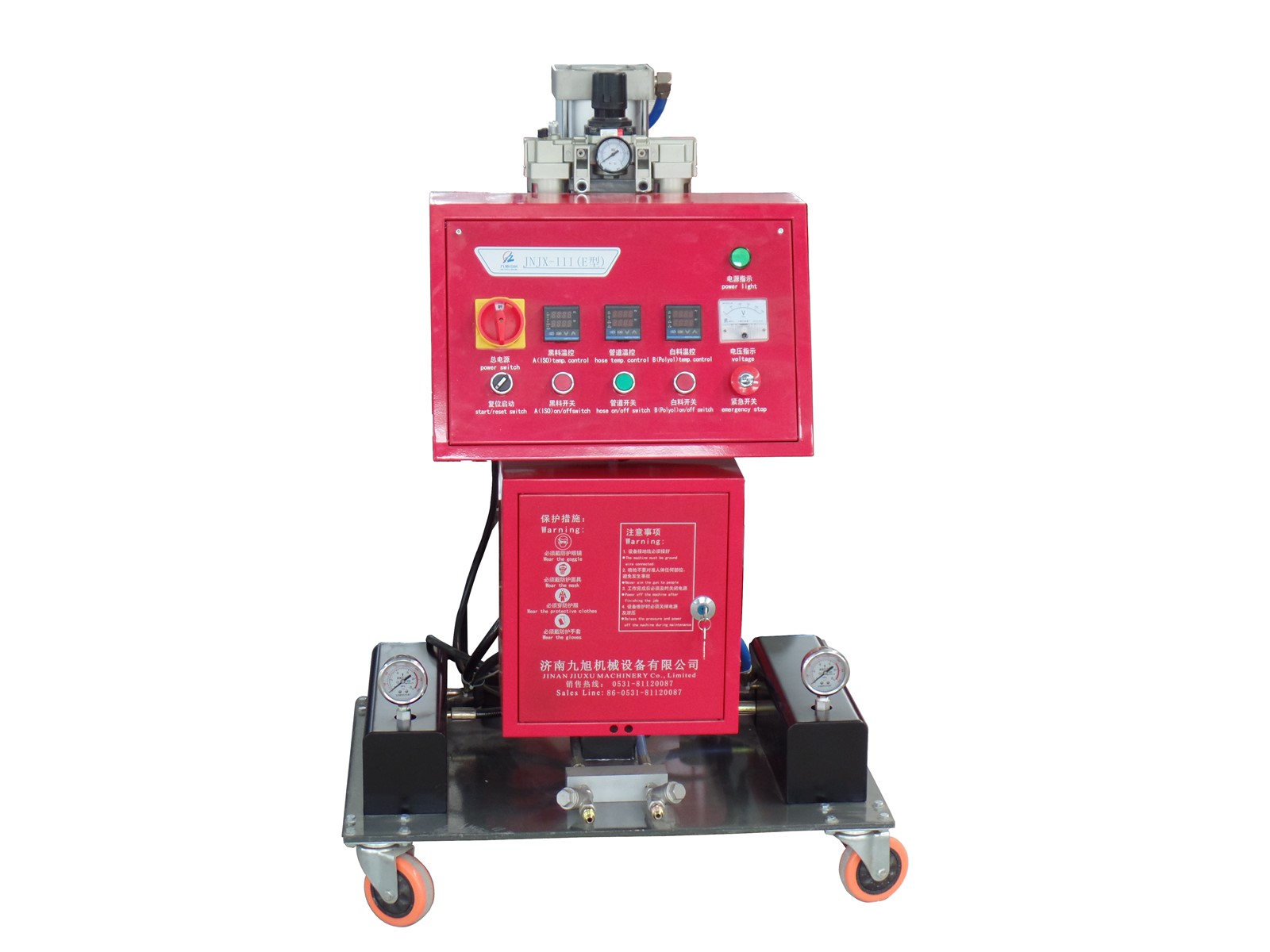

JNJX-III(E) Type Polyurethane High-pressure Foaming Equipment
JNJX-III(E) Type has a wide scope of applications.
Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers,trucks, refrigerated trucks,tank, etc.
2.Casting: solar water heaters,tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.
Portable high-pressure Polyurethane Foaming Machine
1. Pneumatic supercharging device, making the enough power for AB material mix;
2. Adopting the most advanced ventilation method, guaranteeing equipment working stability to the maximum;
3. Minimizing spraying congestion with multi-feedstock device;
4. Multi-leakage protection system to protect the safety of the operator;
5. Main machine is equipped with emergency switch system, helping operator deal with emergencies rapidly;
6. Great heating system enables rapid warming of raw materials to the best state, speeding up normal operation progress;
7. Humanized design for equipment operation panel, super easy to get the hang of it;

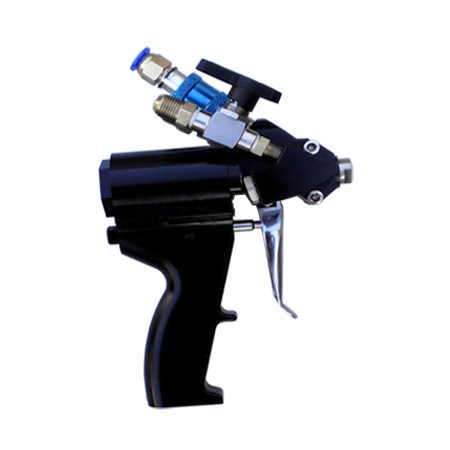

8. the latest spraying gun is air-cleaning, light-weighted, as well as with low failure rate,;
9. Lifting pump adopts big change ratio method, in the winter operator also can easily feed raw materials with high viscosity;
Technical Parameters:
Power source: single-phase220V 50Hz Heating power:7.5KW
Driven mode:Pneumatic Air source:0.5~0.8 MPa ≥0.9m3/min
Raw output:2~12 kg/min Maximum output pressure: 11Mpa
AB material output ratio: AB 1:1
● Packing Size: 850mm X 850mm X 1550mm Machine Weight:109kg
