Xi'An Songhui Mechanical & Electrical Manufacturing Co., Ltd.
China Manufacturer with main products: Tin Can Production Line, Automatic Can Body Welding Machine, Semi-Automatic Can Body Welding Machine, Pail Welding Machine, Can Canping... |

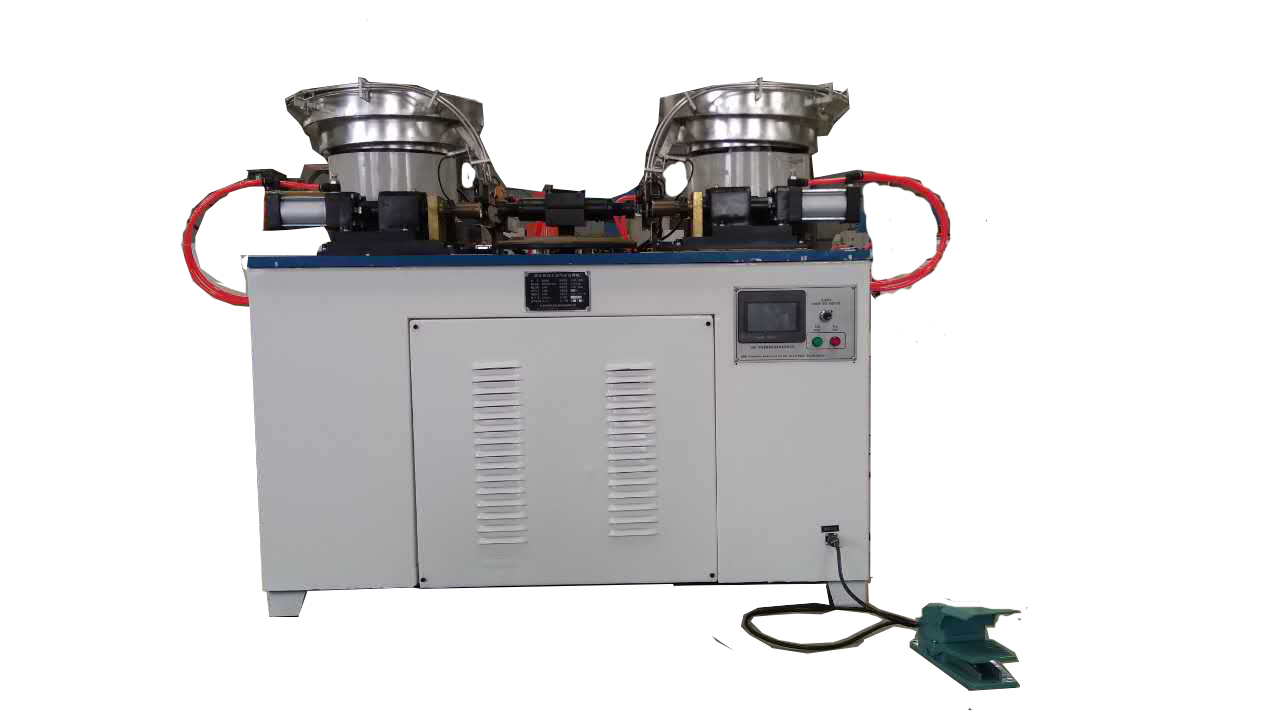

ZSDN40P Tin Pail Ear Spot Welding Machine
| Supply Ability: | 15 Set(s) per Month |
|---|---|
| Shipping: | 45 days after the payment from Shanghai |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shaanxi in China |

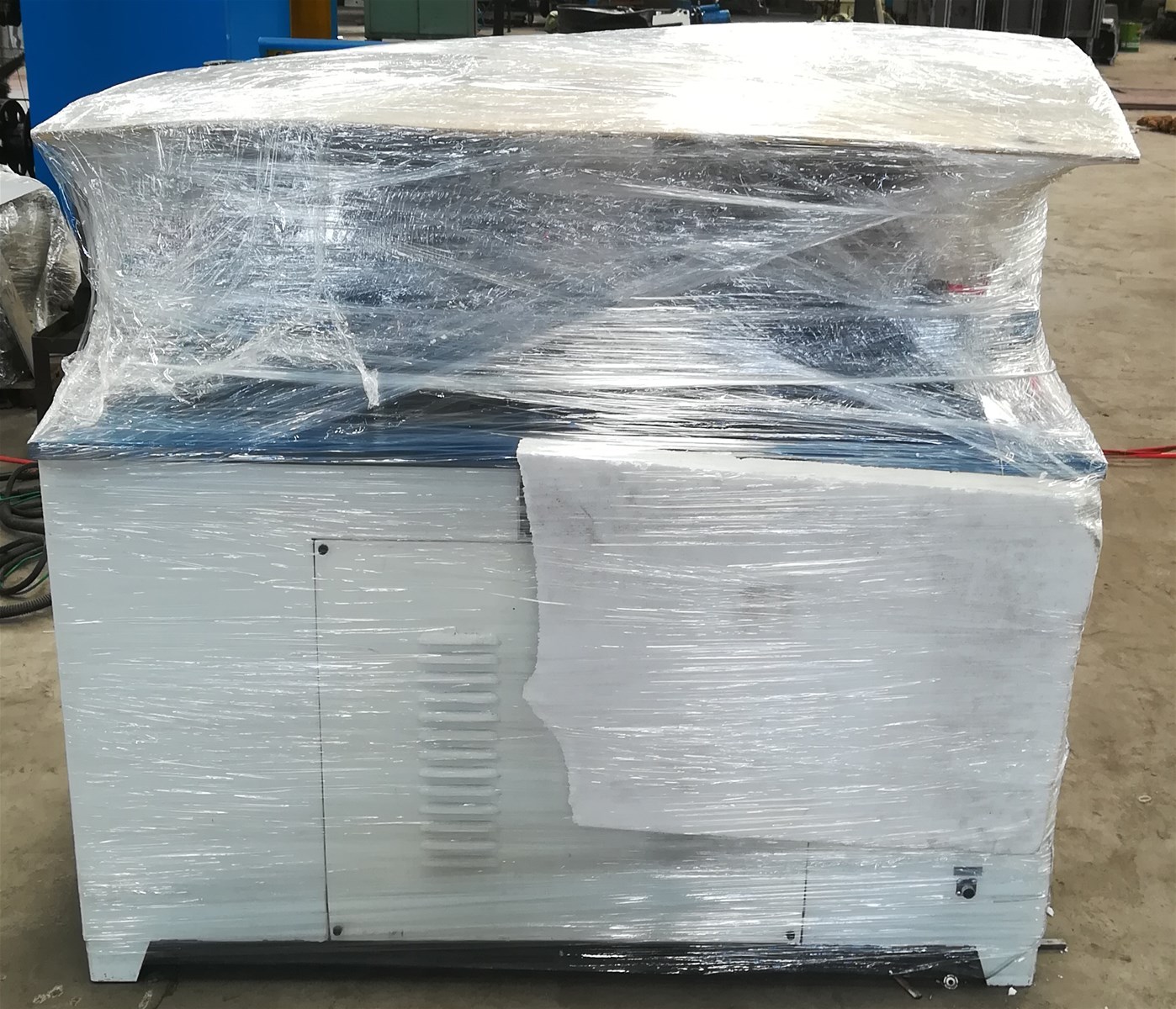

| Packaging Details: | The normal package is plastic film and wooden box. |
Quick Details
- Certification: CE
- Voltage: 380V
- Usage: can lug welding
- Weight: 320kg
- Brand Name: SH
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Power(W): 40
- Dimensions: 1.2m*0.7m*1.3m
- Max. Welding Thickness: 0.6mm
- Model Number: ZSDN40P
- Condition: New
Specifications
1.Brief Introduction:

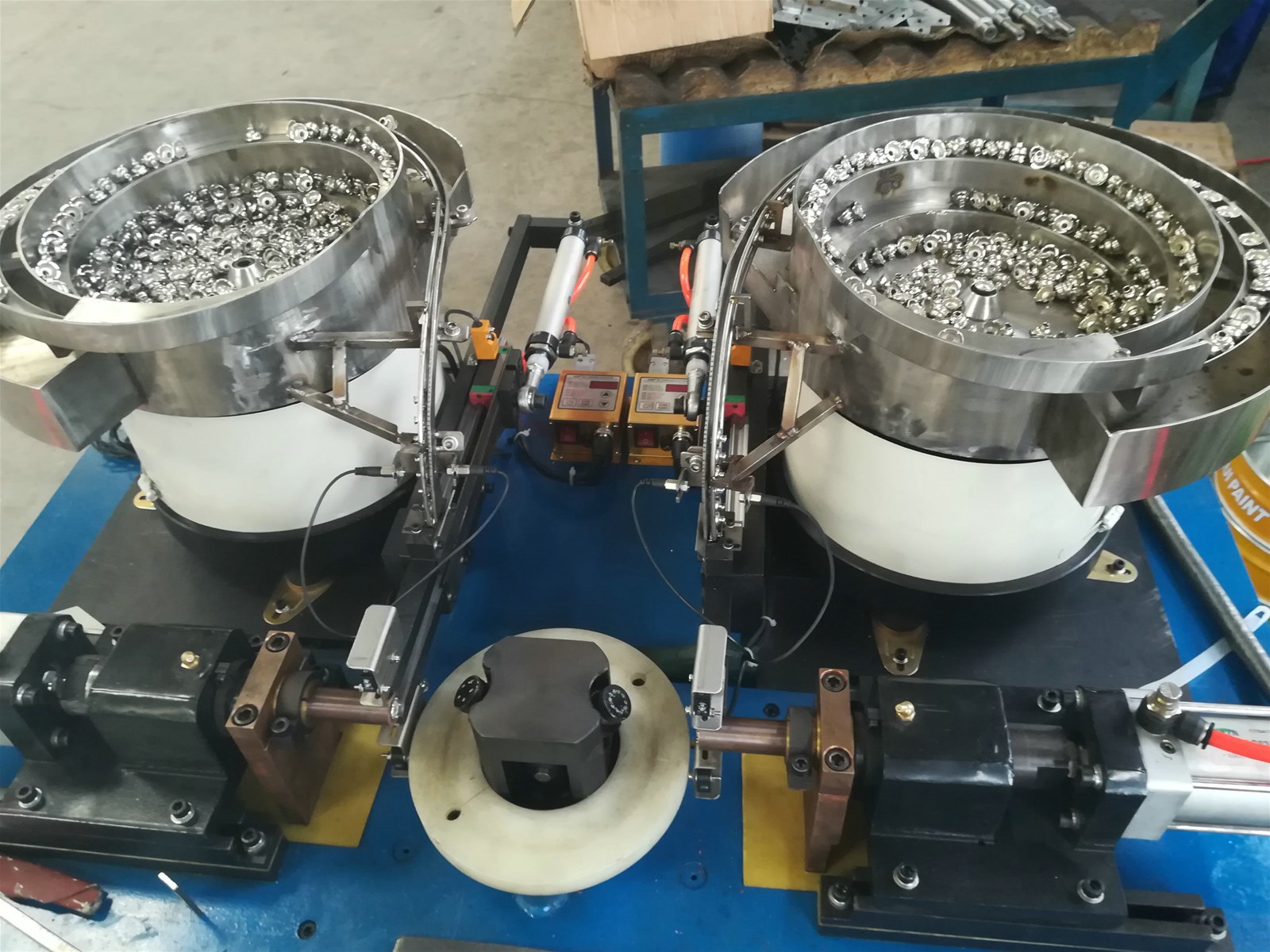

this machine can automatically send the cans and locate the lifting-lugs, it is to weld the lugs and the can through the pressure form two cylinders according to the principles of resistance welding.
with the same lugs, 1L-4L cans' lugs can be welded by the same machine, 10-20L cans' lugs can be welded by the same machine.
2.Techincal parameters: Materials Tin,Substrate iron Materials' thickness 0.25-0.60mm Power supply voltage 2phaseAC380V/50Hz Air pressure 0.6Mpa Total power 40KVA Air consumption 300L/min Production capacity 10-25Cans/min Max. Electrode pressure 1200N Welding range 126-285mm Max. Stroke ofELectrode: 50mm Dimension 1.2m0.7m1.3m Total weight 320Kg
Our advantages:
1).We are the can machines manufacturer, we can totally decide the price of any machine.
2).about 30 years experience and reputation both at home and abroad;
3).Quality Assurance, excellent after service and reasonable price;
4).Reliable and safe to control, easy to operate and maintain;
5).Equipped with human-computer interface and PLC; adopt digital control technology;
6).Full automatic, semi-automatic, and multi mould, suitable for different cans' shapes and sizes.
We will offer our customers the best products with best price and service, so if you have any problem about the machines, please don't hesitate to contact us.
