>Products Catalog > PV Ribbon Cutting&bending Machine > PV Ribbon Door Glyph Bend Cutting Machine
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Application: Laser Cutting
- Certification: ISO
- Brand Name: Eeterphe
- Graphic Format Supported: jdp
- Applicable Material: Metal
- Laser Type: 1
- After-sales Service Provided: No overseas service provided
- Model Number: C350-SZM
- Cutting Speed: 100PCS/MIN
Specifications
this equipment is designed &developed for the molding of PV Bus used in the Photovoltaic double glass modules and double junction box . with advanced processing technology, it adopts these imported automation accessories in the aspect of control to achieve the best performance of the operation .
When the product effectively solves the artificial production of homework in the production of module ;
Single and dual bending can be programmed to switch freely to replace the relevant specification more convenie
Ntly.
Model: C350 - SZM
Power Supply: AC220V 210W
Air pressure:0.6~0.8 Mpa
Air line connection: 8 mm
Dimension: (L) 750 *(W) 280*(H) 460mm
Weight: 28.5 KG
Range of specifications: width: 2.5- 10.0 mm; thickness: 0.25- 0.40

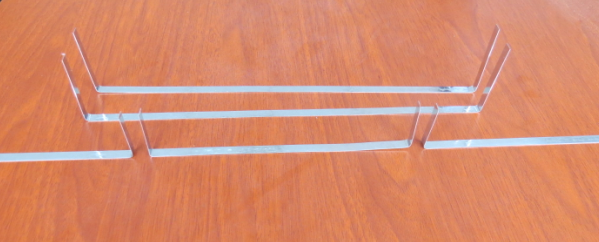

Forming specifications: short side: 15-100 mm long side: 50-350 mm (forming short & long side's size can be customized )
Forming Angle: 90 5
Production speed:about 100 PCS/Min
Processing article number: 1-6PCS
Processing material: tin- plated copper strip or other strip material
