Home  >Products Catalog > Micro CNC Machines > Bench Top CNC Lathe, Small CNC Lathe, Littlemachine

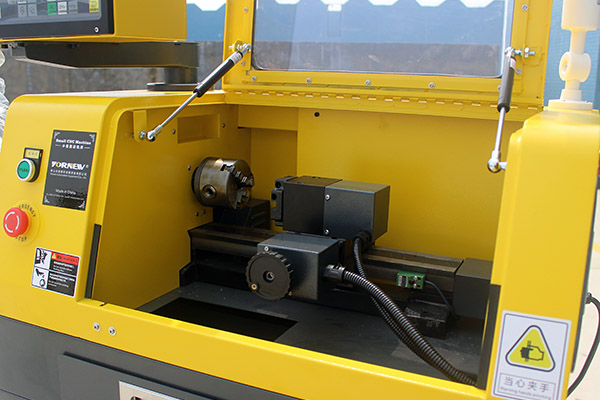

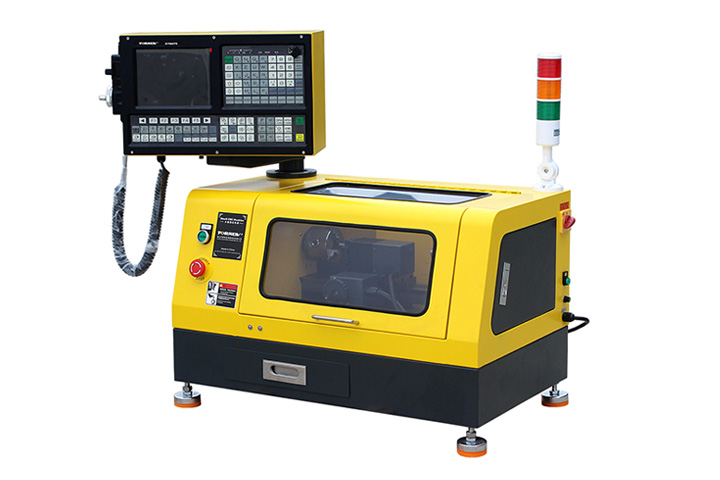

Bench Top CNC Lathe, Small CNC Lathe, Littlemachine

Supply Ability: 60 Set(s) per Month
Payment Terms: L/C
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Wooden Case

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Brand Name: Yornew
  • Automatic Grade: Automatic
  • Type: Horizontal
  • Condition: New
  • Weight: 50kg
  • Dimension(L*W*H): 750*450*450mm
  • Power(W): 150
  • Voltage: 220V/110V
  • Model Number: CK140
  • Max. Swing Diameter: 80
  • CNC or Not: CNC

Specifications

Product No:CK140
Product Name: Micro CNC Lathe
Small CNC Lathe

Small CNC Lathe

Features

1. Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas
2. High performance 2 axis CNC lathe controller.
3. USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and softwareupgrades easily.
4. Network interface, supporting for remote monitoring and DNC file transfer processing.
5. Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
6. Macro variable, macro definition programming,realizing a variety of logical relations. Support macro program with parameters,convenient to the user programming.
7. DXF+G code template function, converting DXF automatically to G code for processing.
8. Teaching function: Teaching+ simplified instruction programming,teaching methods in table format, that is simple and intuitive.
9. Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine, to exam if the preparation process is correct.
10 Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display,processing time, the number.
11. Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.
12. 7 inch super large colorful(800*480) LCD screen.
13. Control speed of G code.
14. Selection of high -quality casting materials,more compact.
15. A collection of double-nut ball screw, bearings and couplings with high precision positioning.
16. 220V single-phase AC power supply.
17. Safety electrical components of high quality.
18. Manual tool post.
19. Auto power off when door open.

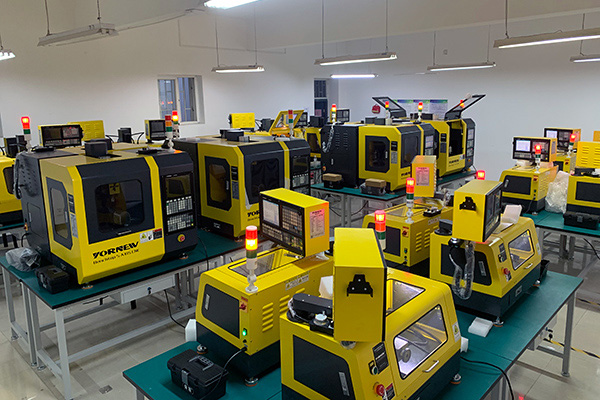

20 Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parametes
Turning diameter over bed(max): 140mm
Travel across slide: 75mm
Chuck diameter: 80mm
Spindle speed: 100-2000r/min(control speed of G code)
Spindle through-hole: 11mm
Spindle mount: MT2
Spindle motor power: 150W
X travel: 70mm
Z travel: 160mm
the max moving speed: 2000mm/min
the max feeding speed: 1000mm/min
Control system: Adtech 4620,Optional siemens 808D or GSK980TB3 CNC controller.
7 inches color screen.
Instruction:DXF+G code template function, converting DXF automatically to G code for processing
MPG handwheel: 4 axis
Tool dimension: 88mm
Tailstock taper: MT1
Tailstock sleeve diameter: 20mm
Travel of tailstock: 25mm
Positioning accuracy: 0.02mm
Repeatability accuracy: 0.02mm
Power: 220V/110V
Weight(NW/GW): 50/65KG

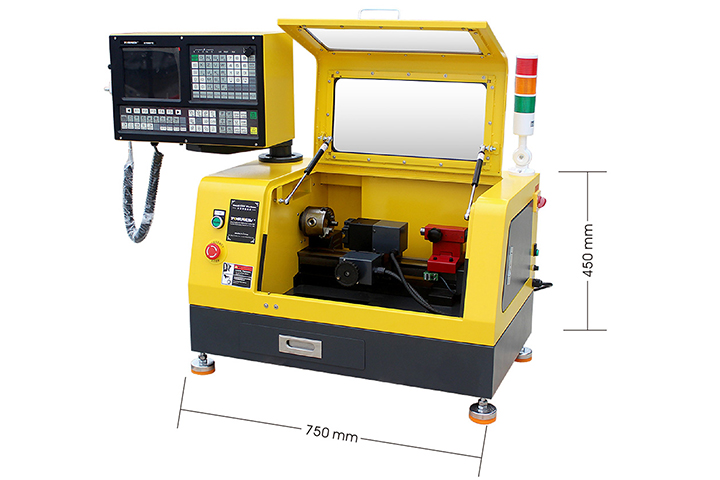

Overall dimension: 750450450mm
Packing size: 850470470mm
