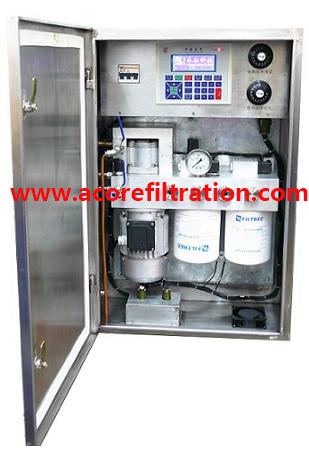

Online Load Tap Changer Oil Purifier
| FOB Price: | 5,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Year |
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Weight: 300-500kg
- Dimension(L*W*H): option
- Power(W): 10-30kw
- Voltage: option
- Usage: Insulation Oil
- Model Number: TCF
- Brand Name: Acore
- Working Pressure: 0.4Mpa
- Flow: 10-300L/h
- Condition: New
Specifications
Description:
TCF on-load Tap Changer Oil Purifier Adopts advanced technology and independent research intellectual function, it Is mainly used for circulating purification of insulating oil in 35kV and above Transformer on-load tap-changer. TCF can effectively remove the free carbon and Metal particles from insulating oil of the on-load tap-changer during the Normal operation of the transformer system, meanwhile, it also can reduce the Trace moisture and ensure the breakdown voltage and service life of the oil, and Effectively improve the safety and reliability of on- load tap changer, greatly Reducing the number of power outages, extend the maintenance cycle, improve Power quality, increase the service life of oil, TCF On-load Tap Changer Oil Purifier Is a kind of energy-saving environmental protection products.
Features:
1.Two stages precision filter, large capacity of holding pollutants and long service life.
2.High-performance coagulation active Adsorption material can remove moisture, organic acids and other materials and maintaining Good characteristics of insulating oil.
3. LCD display, intuitive interface, Simple operation.
4. Automatic pressure alarm shutdown System, automatic overload protection system, automatic temperature control System and many other advanced technology to protect the equipment fully Automated and safe operation.
5. PLC integrated protection and Control technology with manual, automatic, timer start, on-load tap changer Self-locking operation, working time setting and has recorded the number of Actions, alarm and other functions.
6. TCF on-load Tap Changer Oil Purifier Installs intelligent temperature controller, When the temperature is below 5 ° C or when the humidity reaches 80%, the heater start automatically, which ensure the system working in a variety of environments and achieve all-weather Unattended automatic operation.
