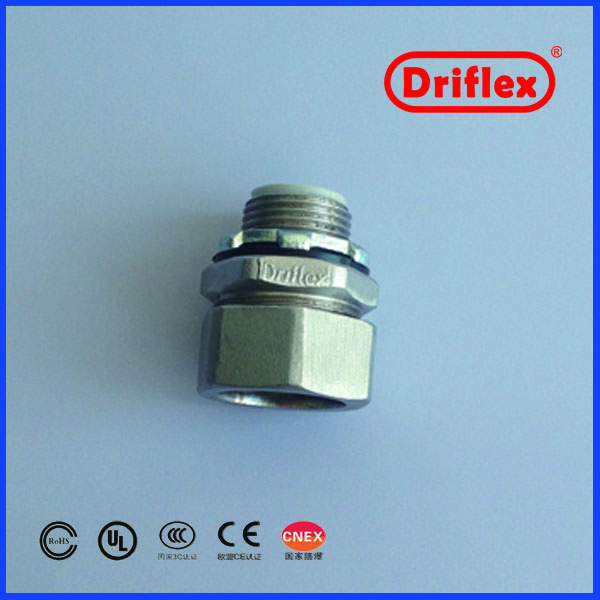

Driflex Liquid Tight Stainless Steel 304/316 Cable Electrical Connector Adapter

Supply Ability: 10,000 Piece(s) per Month
Payment Terms: L/C, T/T, Western Union
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Tianjin in China

Quick Details

  • Gender: Male
  • Application: Power
  • Type: Adapter
  • Brand Name: driflex
  • Color: silver

Specifications

Stainless Steel  Conduit Fittings-Stainless Steel/Straight Female

Structure:

Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, Comply with stands AS/NZS 2053. 8, hexagonal pressure nut, sealing ring and ferrule.

Material:
  • Connector body - stainless steel 304 / 316
  • Hexagon pressure nut -stainless steel 304 / 316
  • Sealing ring - Nylon 66
  • Ferrule - Galvanized steel
Features:
  • Simple, one piece installation provides a quick and reliable liquid-tight seal
  • IP rating from IP40 to IP66/67/68 in combination with the corresponding flexible conduits
  • High mechanical strength
  • Highly liquid-tight and dustproof
  • Vibration and tensionproof
  • Inherently low fire hazard
  • Covering of the conduit ends
  • Temperature range from -40oC to +150oC
  • Available in straight, 45oand 90oBodies
  • Available in ISO Metric and NPT, PF, PG, BSP etc. Threads
Applications:driflex manufacture the connector adapter
  • General indutrial and commerical electrical wiring protection
  • Machining centres and robotics
  • Any narrow space in static applications
  • General wiring for OEM applications
  • Low fire hazard applications
  • Underflooring wiring in office buildings
  • Machine tools
  • Installations where liquid-tight is a requirement
  • Outdoor installation
Special Applications:
According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.

Specifications:


 Part  No ISO Thread (mm) Part No NPT Thread (inches) I.D. (mm) O.D (mm) Box (pcs)
 LTCM-S609  16  LTC-S609  5/16" 11.0 15.7  25
 LTCM-S60 16/20  LTC-S60  3/8" 11.0 19.7  25
 LTCM-S61  20  LTC-S61  1/2"  14.5  19.7  25
 LTCM-S62 25  LTC-S62  3/4"  19.5 24.7  25
 LTCM-S63  32  LTC-S63  1"  25.0 31.7  15
 LTCM-S64  40  LTC-S64  1-1/4"  33.5  39.7  6
 LTCM-S65  50  LTC-S65  1-1/2"  38.0  49.7  6
 LTCM-S66  63  LTC-S66  2"  49.5  62.7  4

Suitable flexible conduits:
  • VJ type of vacuum jacketed flexible conduit
  • LT type of liquid-tight flexible conduit
  • FM type of flexible metallic conduit
