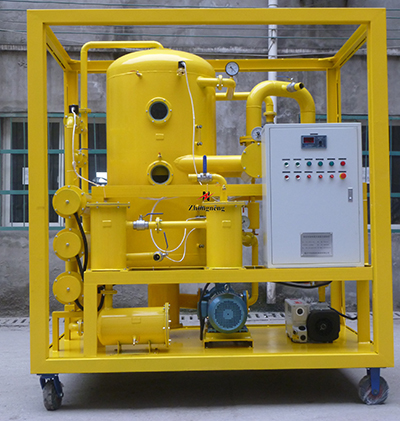

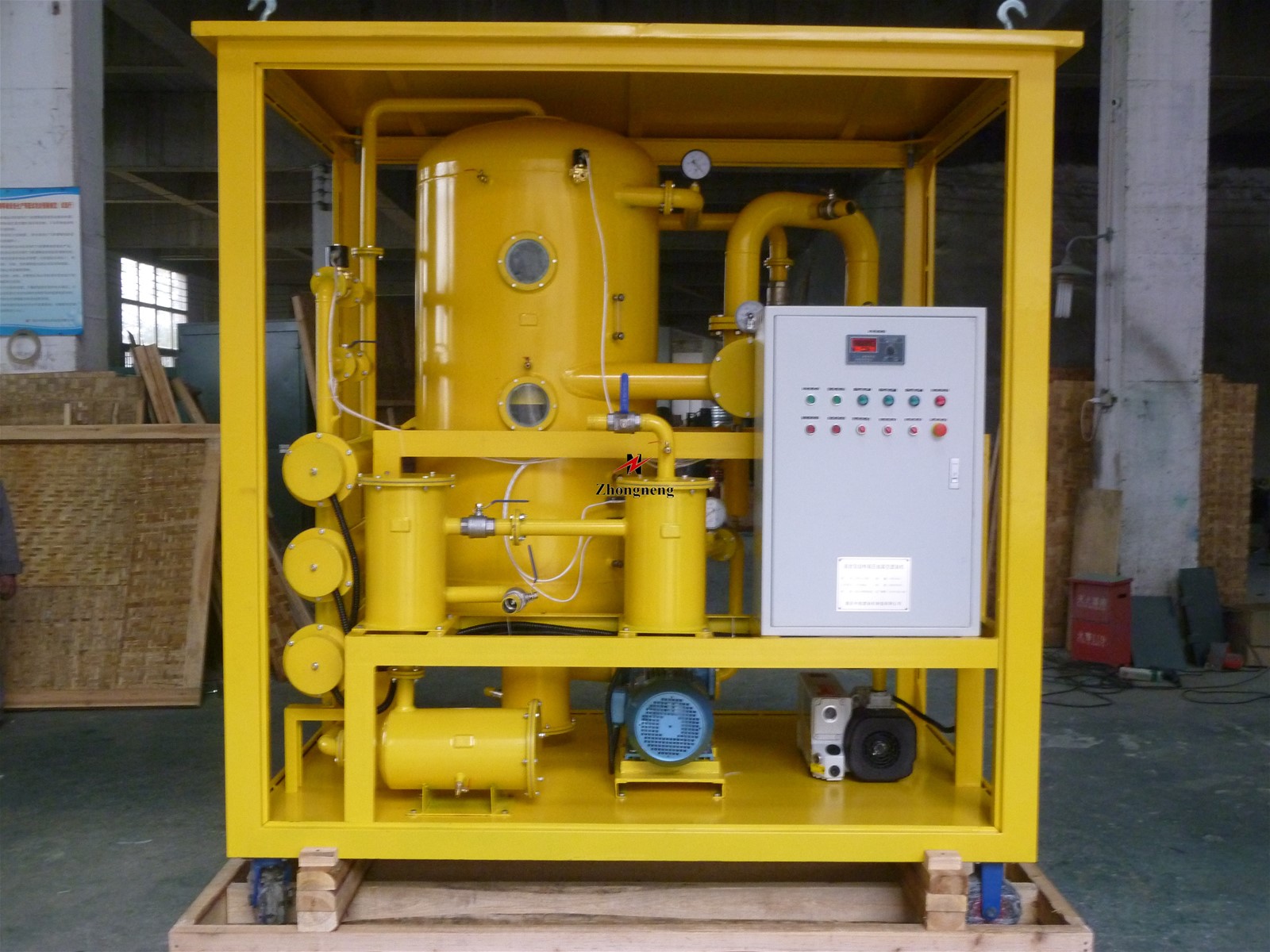

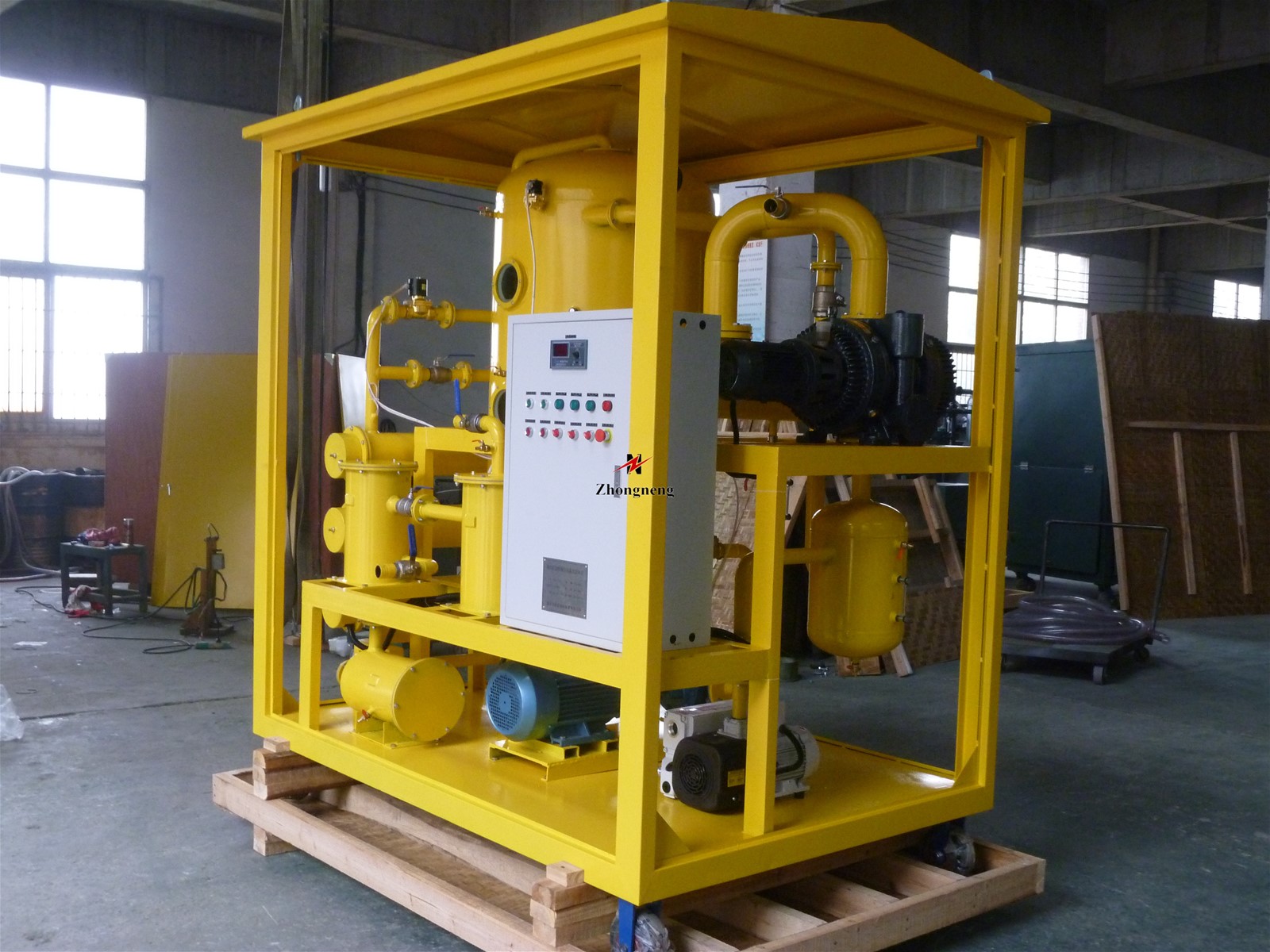

2017 Newest High Voltage Vacuum Transformer Oil Recycling Plant
| FOB Price: | 8,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Quarter |
| Shipping: | with in 15 days after payment confirmed |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | Wooden cases |
Quick Details
- After-sales Service Provided: Overseas service center available
- Certification: ISO9001:2015
- Weight: 800kG
- Dimension(L*W*H): 1000*900*1400mm
- Power(W): 40KW
- Voltage: 380V or as customized
- Usage: Insulation Oil
- Model Number: ZYD-T-50
- Brand Name: ZHONGNENG
- Working Pressure: 0.08~-0.099MPa
- Flow: 50L/min
- Condition: New
- Model: ZYD-T-50
- Capacity: 3000liters/hr
- Water content: <4PPM
- Gas content: <0.1%
- Particle size: <1u
- Breakdown voltage: >75KV
Specifications
2017 Newest High Voltage Vacuum Transformer Oil Recycling Plant
Application
ZYD-T Newest Ultra-High Voltage Vacuum Transformer Oil Purification Plant, is Especially designed to purifying the transformer oil in various kinds of power equipment which is applied to remove water, gas, impurities and all other contaminants from used oil completely and high Efficiently. It makes oil become pure and cleaning, almost same as new Oil and good enough to be used by large transformers and other power equipment.
Cutting-edge Technology, that is Double-Stage Evaporation System applies in ZYD-T Newest Ultra-High Voltage Vacuum Transformer Oil Purification Plant
Double-stage
Evaporation system consists of two vacuum water-separation systems,
Newest sprinkler with multi-point spray. the two vacuum water-separation
Systems are not only improve the ultimate vacuum degree (up to 2Pa),
but also completely separate the free water, dissolved water, waste
Gasses (such as Hydrogen, acetylene) of insulation water. the newest
Sprinkler, the ZHONGNENG patented technology, enables the separated free
Water, dissolved water to be promptly atomized and waste gasses to be
Volatilized.
Features
1. High vacuum: High point-Vacuum≤5pa Working-vacuum≤35pa
2. High absorption speed: Absorption speed power≥333L/Sr.
3. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
4. Distinctive removing impurity system which filters the impurity
through double FH trapezoidal network and absorbs the impurity by high
Polymer without the mechanical power
5. Carbon fiber infrared heating system that can have the oil contain zero sum of ethyne after the treatment
6. Especially applied to vacuum filling oil and drying for power transmission equipments which power are over 110KV
7. Any insulating oil can be treated on-line at the working site.
Advantages
Comparing with the single-stage vacuum oil purifier, this machine
Dewater, degas and removes the impurities more quickly, more completely,
and makes the oils limiting voltage-withstand value much higher. As the
Bridge-type vacuum linking system that can purify and also can be an
Independent vacuum power supply, this machine can treat the electric
Insulation devices.
Technical Parameters
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 | |
Flow Rate |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 | |
Working Vacuum |
Mpa |
-0.08 ~-0.099 | |||||||
Working Pressure |
Mpa |
≤ 0.3 | |||||||
Temp Range |
℃ |
20 ~80 | |||||||
Power Supply |
|
380V/ 50Hz/ 3Phase( As per your requirement) | |||||||
Working Noise |
Db |
60 - 80 (Depended on the configuation) | |||||||
Heating Power |
KW |
30 |
30 |
48 |
72 |
72 |
90 |
120 | |
Total Power |
KW |
33 |
35 |
55 |
80 |
82 |
102 |
135 | |
Inlet/Outlet Diam |
MM |
25 |
32 |
42 |
50 |
50 |
60 |
60 | |
Weight |
KG |
450 |
550 |
750 |
950 |
1200 |
1850 |
2000 | |
Size |
Length |
MM |
1450 |
1450 |
1750 |
1850 |
1950 |
2050 |
2150 |
Width |
MM |
950 |
1000 |
1250 |
1300 |
1350 |
1400 |
1450 | |
Height |
MM |
1700 |
1750 |
1950 |
2000 |
2050 |
2100 |
2150 | |
after TREATMENT | |||||||||
Dielectric Strength |
KV |
≥ 75-85 | |||||||
Water Content |
PPM |
≤ 3 | |||||||
Gas Content |
% |
≤ 0.1 | |||||||
Particle Size |
μ |
≤ 3 | |||||||
Cleanliness ≤NAS 1638 Grade 4 | |||||||||
Dimensions will be changed if any special type required

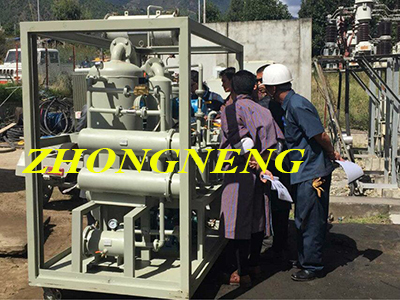

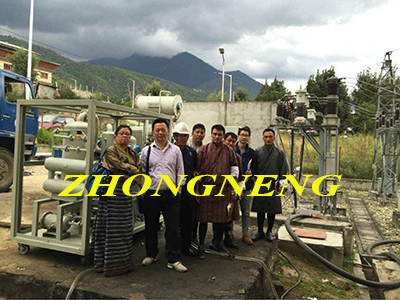

Onsite debugging cases in Bhutan, Which satisfy customer's requirements well.
We are the original supplier for oil purifier!
We are dedicated to provide you excellent performance with competitive prices!
Welcome to visit us and inquiry for more details!
