CAT3 UTP Telephone Cable 100pair
| FOB Price: | 1.00 - 1,000.00 USD/Kilometer |
|---|---|
| Supply Ability: | 100,000,000 Kilometer(s) per Month |
| Shipping: | FOB 15-working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Related products from verified members
| Place of Origin: | Zhejiang in China |
|---|---|
| Packaging Details: | 1000mtrs / reel |
Quick Details
- Type: Cat 3
- Brand Name: T&J
- Rated Voltage: 220V
- Cable type: CAT3-100P
- Conductor: Bare solid copper conductor
- Outer Jacket material: Flame retardant PVC
- Packing length: 1000meters or on request
- Operating Temperature Range: -20 to 75C
- Impedance (ohms ): 100
- Origin: China
- Application: Telecommunications
Specifications
Product Description

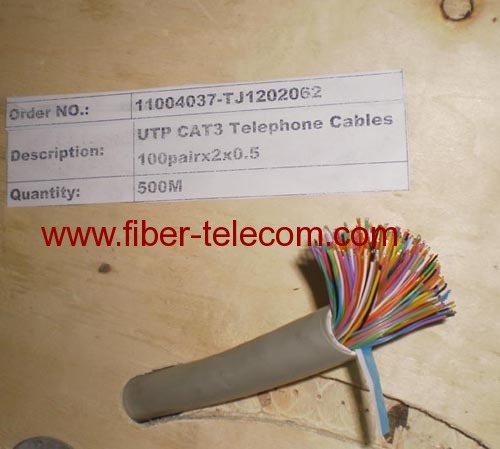

Category3 UTP Telephone Cable 100pair
Cat3 cable is a type of twisted pair cable frequently used in voice and data applications, available to provide in 10 pairs / 20 pairs / 50 pairs / 100 pairs...Phone cable is defined by the Electronic Industry Alliance (EIA) and Telecommunication Industry Association (TIA). T&J provide Cat3 phone cable is quality manufactured to meet standards for EIA/TIA 568 and ISO/IEC 11801 specifications.
Technical details for UTP CAT3 Cable 50pair & 100pair:
| Part Number | Utp cat3 50P Indoor | Utp cat3 100P Indoor | |
| Conductor | Diameter(mm) | 0.5±0.01 | 0.5±0.01 |
| Material | Bare Copper | Bare Copper | |
| Type | Solid | Solid | |
| Dielectric(Insulation) | Diameter(mm) | 0.9±0.01 | 0.9±0.01 |
| Material | Solid PE | Solid PE | |
| CORE WRAPPING | Material | plastic tape | plastic tape |
| Thickness (mm) | 0.04 | 0.04 | |
| Jacket(sheath) | Thickness (mm) | 1.1 | 1.3 |
| Diameter(mm) | 15±0.5 | 20.5±0.5 | |
| Material | Flame retardant PVC | LLPE | |
| Color | Grey | Flame retardant PVC | |
| Number of Pairs | 50pairs | 100pairs | |
| Weight (kgs/km) | 325 | 600 | |
| Attenuation(10MHz dB/100m) | 6.5 | 6.5 | |
| next (100MHz dB/100m) | ≥35.3 | ≥35.3 | |
| ELFEXT (100MHz dB/100m) | ≥23.8 | ≥23.8 | |
| RL (100MHz dB/100m) | ≥20.1 | ≥20.1 | |
| Impedance (ohms ) | 100 | 100 | |
| Operating Temperature Range(℃) | -20 to 75 | -20 to 75 | |

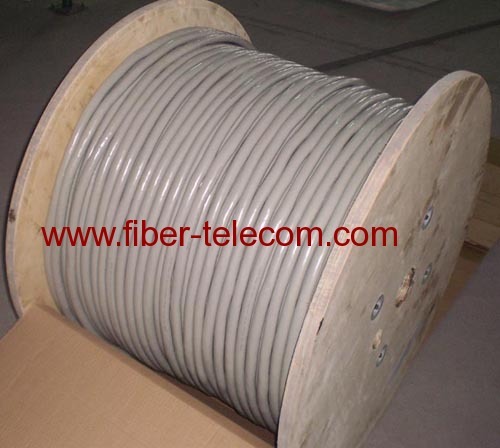

| Package | 305/1000meters/roll | 305/1000meters/roll | |
Category3 UTP Telephone Cable 100pair
100Pair CAT3 UTP Telephone Cable
