SC-LC Single Mode Duplex Fiber Optic Patch Cord

FOB Price:	1.00 - 1,000.00 USD/Piece
Supply Ability:	100,000,000 Piece(s) per Month
Shipping:	FOB 15-working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Wholesale Price Step up Cable USB 5V to DC 12V ...

Price:1.35 USD/Piece

Min. Order:1000 Pieces
Security Display Holder with Coiled Cable

Price:2.50-3.00 USD/Piece

Min. Order:1000 Pieces
Easy Snap-on Imported Thick Silicone Rubber Cab...

Price:2.00 USD/Meter

Min. Order:50 Meters
flexible cable AVRS2*0.12

Price:0.16-0.22 USD/Meter

Min. Order:100 Meters
Green Connection 15+7 Pin SATA Serial ATA Male ...

Price:

Min. Order:200 Pieces
Indoor Armored Cable

Price:

Min. Order:

Product Details

Place of Origin:	Zhejiang in China
Packaging Details:	1piece / polybag

Quick Details

Jacket: PVC
Application: Fast Ethernet, Data Communication LAN and WAN.
Brand Name: T&J
Connector type: SC-LC
Fiber Core: Duplex
Fiber type: SM
Ferrule polishing: PC/UPC
Cable O.D.: 1.8mm~3.0mm
Cable Length: 0.5~200 meters
Insertion Loss: <=0.2dB
Return Loss: =>50dB
Origin: China
Delivery Date: 15-working days

Specifications

Product Description

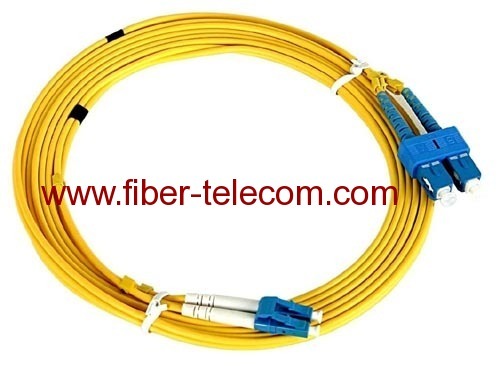

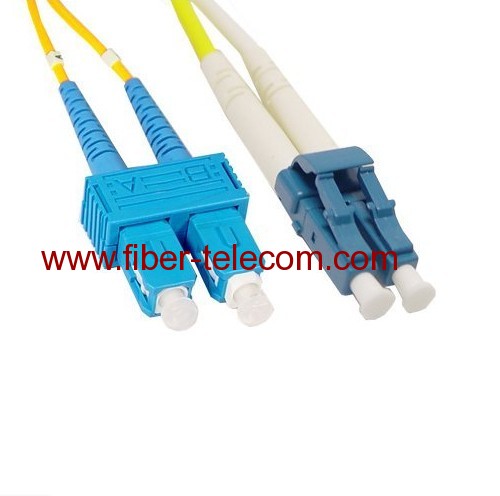

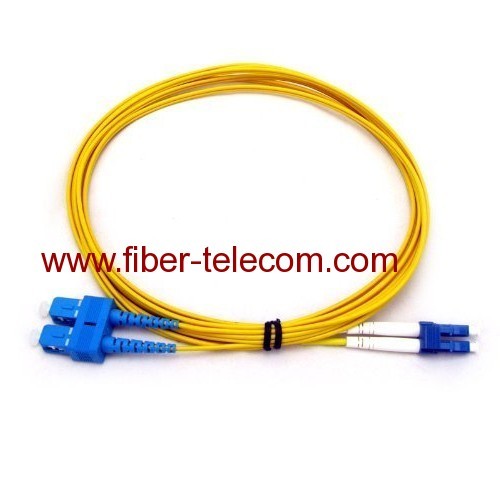

SC-LC Single Mode Duplex Fiber Optic Patch Cord

Part No.: CSLSMDX3.0 + length

Description:

T&J fiber optic patch cords provide the highest level of connectivity for all your fiber interconnect applications.

Manufactored and tested to the tightest specifications. T&J patch cords meet Telcordia GR-326 requirements. Our precision zirconia ferrules and exvironmentally rugged connectors and cable assemblies ensure lasting, repeatable connections.

Applications:

Ethernet, Data Communication LAN and WAN.

? Fast? High-speed Enterprise Serves.

? Multiplexors, Switches, and Routers.

? Optical Access and ATM Networks Equipment.

? Optical Transport and Telecommunications Switching Equipment

Features:

? Excellent Return Loss.

? Ultra Low Insertion Loss.

? Singlemode

? Duplex

? SC, LC

? PC, UPC

? Telcordia GR-326 Compliant.

? Available in 3.0mm, 2.0mm, and 0.9mm

? Cable Jacket: PVC or LSZH

? Fiber: Tight-buffer or Easy-strip.

Technical Indication:

Type	Insertion Loss	Return Loss
Multi Mode (PC/UPC)	<=0.2dB	>=35dB
Single Mode (PC/UPC)	<=0.2dB	>=50dB
Single Mode (APC)	<=0.2dB	>=60dB

Ordering Information:

Connector Types	Cable Types
L = LC	C = Patch Cord	2A1a = Multi Mode Breakout Dia.7.0mm
F = FC	G = Pigtail	2B13 = Single Mode Breakout Dia.7.0mm
S = SC	SM = Single Mode 9/125um	AR = G657A Armored Cable
T = ST	M5 = Multi Mode 50/125um	V = PVC Jacket
M = MU	M6 = Multi Mode 62.5/125um	Z = LSZH Jacket
J = MTRJ	M3 = Multi Mode OM3 50/125um	001 = 1 meter Length
E = E2000	SX = Simplex	002 = 2 meters Length
D = DIN	DX = Duplex	300 = 300 meters Length
P = PC	9 = 900um Dia.Meter	LB = Loopback
U = UPC	2 = 2.0mm Dia.Meter	RF = Ribbon Fan-out
A = APC	3 = 3.0mm Dia.Meter	BO = Bunch-out

Packing: 1 piece / polybag.

Customer's brand or LOGO available to stick on the polybag.

or customed polybag available.

SCLC Single Mode Duplex Fiber Optic Patch Cord

SC to LC SM Duplex optical fiber patch cord
