Home  >Products Catalog > MLK-342GXL PROGRAMMER COMPUTERISED PATTERN SEWING MACHINE

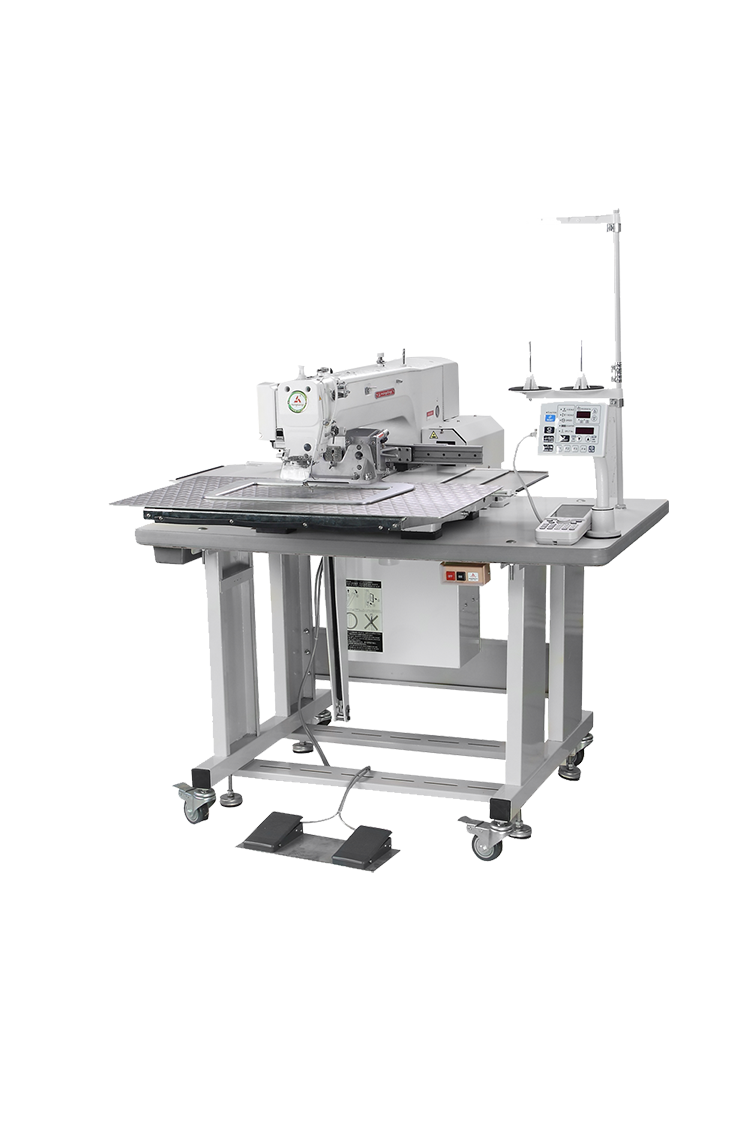

MLK-342GXL PROGRAMMER COMPUTERISED PATTERN SEWING MACHINE

FOB Price: 1.00 - 1,000.00 USD/Set
In Stock

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Stitch Formation: Lock Stitch
  • Model Number: MLK-342GXL
  • Type: Industrial Sewing Machine
  • Condition: New

Specifications

MLK342GXL PROGRAMMER COMPUTERISED PATTERN SEWING MACHINE

FEATURES:
Set a double step clamp, clamp can be stop and suspended in the middle position, and then down to the lowest point. Can set up a suitable height in the middle position, can quickly and accurately positioning the material. this can be reduce the extra operation caused by the positioning error of the sewing matter, saving the total cycle time during sewing.
Remove the 4 screws to replaced clamp, also can be installed to the accurate position rapidly.
Cna fix on the bottom  plate, tighten the bolts to complete the installation. Accurate positioning of plate can be conveniently fix up.
the sewing machine can be stored in the memory of large amounts of data (512 patterns, 500000 stitches). Every time you can change pattern without reloading the sewing pattern. In addition, the CF card (Compact Flash) flash memory card with to the storage media, read and write speed, large amounts of data can be copied or transferred to other sewing machine or electric copy or transfer to other sewing machine or computer fo data management.

SPECIFICATION

Stitch

Single-Needle Flat Seam

Sewing Speed

2,700rmp

Sewing Area X*Y

130*100mm

220*100mm

300*200mm

600*300mm

Feeding Material Device

Servo Motor

Stitch Length

0.05-12.7mm

Save by Pin Code

Internal Memory 500000 stitches

Clamp drive

Pneumatic

Clamp Height

30mm max

Clamp Lowest

One-piec pressure foot

Pressure Foot Lift up

22mm

Pressure Foot Intermittent

0.2-4.5mm or 4.5mm (standard setting 3mm)

Hook

Large Hook (standard)

Thread wiper device

Standard Equipment

Trimmer Device

Standard Equipment

Data Memory

Flash memory (can save in CF card) 3 inch disk 2HD/1.44BM.2DD

Number of User Program

50

Loop Program Number

9

Motor

750 W Servo Motor

Weight

178kg

178kg

180kg

440kg

Power

220v/380v 500VA

Air Pressure

0.5Mpa 1.81/min
