Sample Preparation Machine Small CNC Mill

FOB Reference Price: $ 3300
Wholesale: ≥1 Roll(s)
Payment Terms: L/C
Update Time: 2017/9/24
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1
  • Certification: iso9001
  • Brand Name: YORNEW
  • Condition: New
  • Weight: 140kg
  • Dimension(L*W*H): 845*580*850mm
  • Power(W): 220/110
  • Voltage: 220
  • Model Number: XK200

Specifications

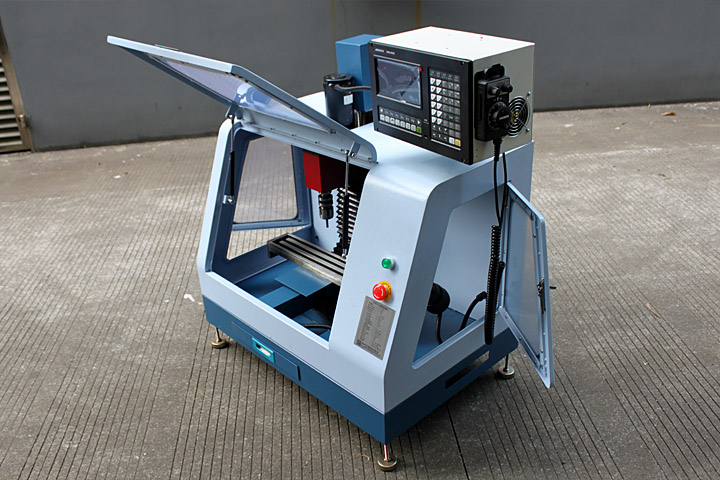

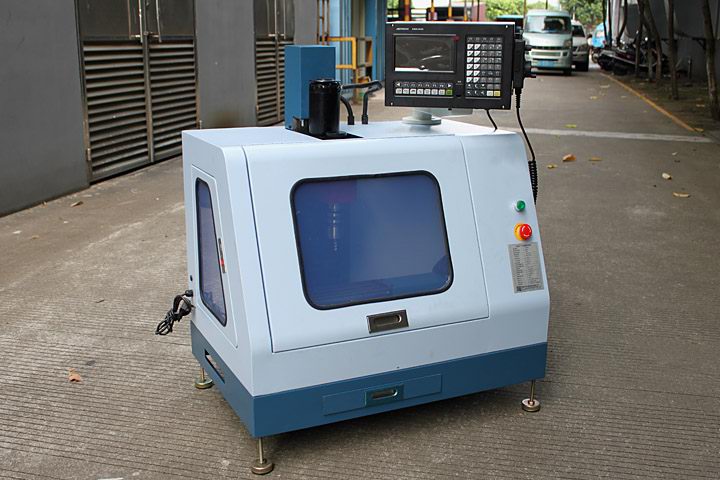

Yornew XK200 Sample Preparation Machine

Yornew XK200 Sample Preparation Machine


the Sample Preparation Machine - Yornew Cut XK200 is cost effective in motion control application of up to3 axes. the Motion control of the Sample Preparation Machine - Yornew Cut XK200 is based on Numerical control Technology. the Sample Preparation Machine - Yornew Cut XK200 Adopts a simple connectivity and a single commercially available USB cable is Used for communication between the PC and control board which can be placed as Per user preference. In addition to the above the Sample Preparation



Machine - Yornew Cut XK200 is equipped with Additional features like:



Quick system setup:

High performance CNC controller,DXF+G code Template function, converting DXF automatically to G code for processing.



Easy to operate

Teaching function: Teaching+ simplified Instruction programming,teaching methods in table format, that is simple and Intuitive.Graphic simulation

Function: show the graphics of the Processing program and the tool path of the actual operation, tool path Simulation processing without controlling

the operation of the machine, to exam if the preparation process is correct. Simple operating structures,  easy to use, even for beginners



Other functions of the Sample Preparation Machine - Yornew Cut XK200

3D tool-path, 3D zoom-in and zoom

Technical Specifications

X axis travel

210mm

Y axis travel

95mm

Z axis travel

200mm

Spindle taper

MT3/R8

Tool DIA. Range

4-16mm

Control system

Adtech 4640,Optional siemens 808D or GSK980MDc CNC controller

Instruction

DXF+G code template function, converting DXF automatically to G code for processing

MPG hand wheel

4 axis

Spindle motor

350W(1.5kw optional)

Spindle speed

100-3500r/min(24000r/min optional)

the max moving speed

1200mm/min

the max feeding speed

500mm/min

Power of X

1.35 Nm

Power of Y/Z

2.2Nm

Positioning accuracy

0.03mm

Repeatability accuracy

0.02mm

Transmission

Ball screw

Table size

390*92mm

T slot (amount*width)

38*12mm

Max. Load

30kg

Table structure

Full cast iron

Power

230/120V

Weight(NW/GW)

140/160kg

Overall dimension

845*580*850mm

Packing size

930*650*1100m
