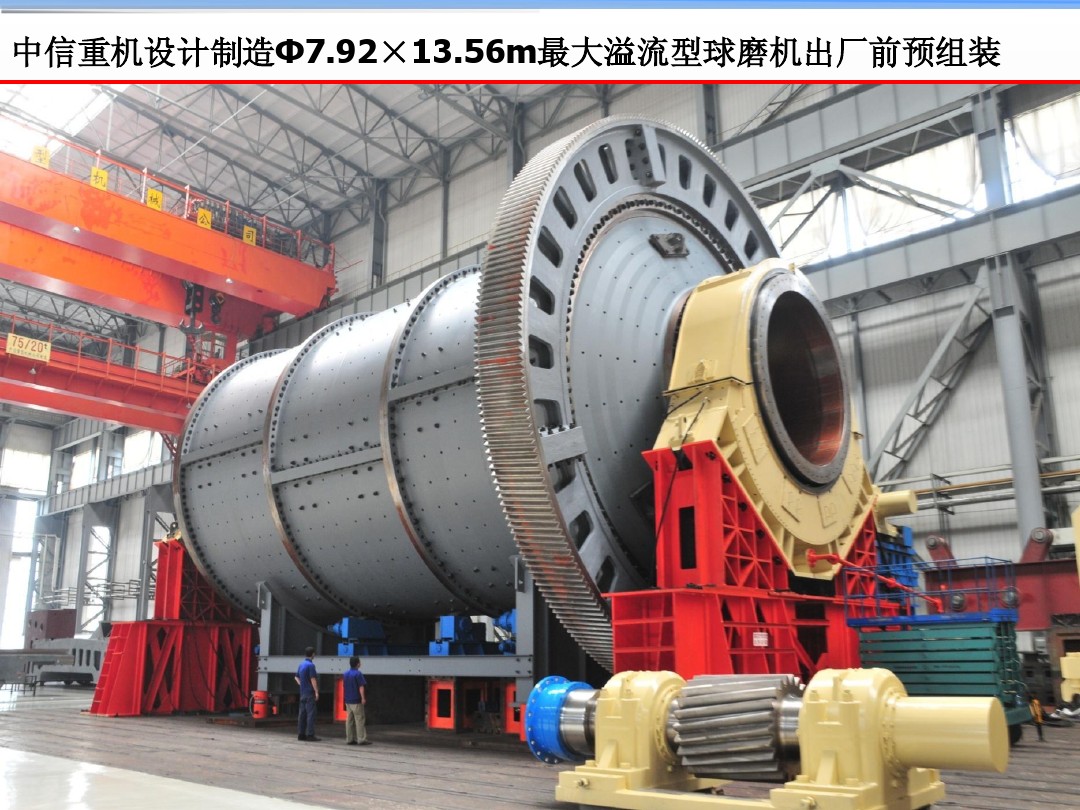

Large Capacity Cement Production Line Tube Mill
| FOB Price: | 100,000.00 - 1,000,000.00 USD/Unit |
|---|---|
| Supply Ability: | 10 Unit(s) per Month |
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | sea worth packing |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Certification: iso9001:2008
- Weight: according to model
- Dimension(L*W*H): according to model
- Model Number: many models
- Brand Name: zs
- Capacity(t/h): 10-22-t/h
- Power(W): 300-4200kw
- Motor Type: Stepper Motor
- Type: Ball Mill
- Condition: New
Specifications
Working principle:
Material is fed to the rough grinding chamber In the mill through the chute of feeding device. Grinding medium of large size Impacts on the material and then material is crushed. Fines go into the fine Grinding chamber through double partition. It is further impact and ground by The grinding medium of small size. Production of required fineness flows through the discharging pipe and is discharged from the discharging device. It Is separated in the separator. Cold air flows in the mill to reduce the Temperature inside. Fine powder is conveyed out of the mill to guarantee the Product quality and improve the grinding efficiency.
Technical parameter:
Specification |
Output |
Mill Speed |
Feed Size |
Capacity |
Valid Capacity |
Motor |
Weight | |
m |
t/h |
r/min |
mm |
r |
m3 |
Power(kw) |
Voltage(v) |
t |
Φ2.2×6.5 |
15-16 |
22 |
〈20 |
22 |
18 |
320 |
6000 |
52 |
Φ2.2×8 |
30 |
20.8 |
〈25 |
45 |
|
560 |
6000 |
81 |
Φ2.2×11 |
22-25 |
21 |
〈25 |
56 |
36 |
630 |
6000 |
106 |
Φ2.2×11 |
22-25 |
21.5 |
〈25 |
40-45 |
43 |
500 |
6000 |
105 |
Φ2.2×13 |
29-30 |
21.5 |
〈25 |
60 |
43 |
630 |
6000 |
118.4 |
Φ2.2×13 |
24-25 |
21.5 |
〈25 |
60 |
43 |
630 |
6000 |
113 |
Φ2.2×13 |
40-46 |
19 |
〈25 |
65 |
50 |
800 |
6000 |
134 |
Φ2.2×13 |
40 |
18.9 |
〈25 |
65 |
50 |
800 |
6000 |
145 |
Φ2.6×13 |
43-50 |
19.4 |
≤20 |
80 |
60 |
1000 |
10000 |
152.3 |
Φ2.6×13 |
43-50 |
19.4 |
≤20 |
80 |
60 |
1000 |
10000 |
153 |
Φ3×9 |
36-42 |
17.8 |
〈25 |
70-80 |
|
1000 |
6000 |
136.6 |
Φ3×11 |
60-65 |
17.4 |
〈15 |
90-100 |
69 |
1250 |
6000 |
180 |
Φ3×12 |
55-58 |
17.7 |
〈25 |
95-100 |
76 |
1250 |
6000 |
198.6 |
Φ3.2×7+1.8 |
48-53 |
18 |
〈20 |
55-58 |
44.5 |
1000 |
6000 |
167.5 |
Φ3.2×10 |
55 |
17.83 |
〈20 |
65 |
44.5 |
1000 |
6000 |
186.9 |
Φ3.4×7+1.8 |
54 |
16.9 |
〈20 |
65 |
51.5 |
1000 |
6000 |
184.4 |
Φ3.4×7.5+1.8 |
～60 |
16.9 |
〈20 |
70 |
54.58 |
1250 |
6000 |
214-217.5 |
Φ3.5×10 |
75 |
16.69 |
〈20 |
80 |
64.6 |
1250 |
6000 |
170 |
Φ3.8×9 |
90-95 |
16.5 |
〈15 |
130 |
94 |
2000 |
6000 |
256.3 |
Φ3.8×8.5+3.5 |
～90 |
16.5 |
〈20 |
100 |
89.4 |
1600 |
6000 |
305.6 |
Φ4.6×8.5+3.5 |
150 |
15 |
〈20 |
150 |
89.4 |
2800 |
|
310.7 |
Φ4.6×10+3.5 |
190 |
15 |
〈25 |
190 |
157 |
3550 |
|
352** |
Φ4.6×9.5+3.5 |
185 |
15.2 |
〈25* |
175-180 |
148 |
3550 |
6000 |
298** |
Φ4.6×14 |
185-220 |
15 |
|
210 |
185 |
4200 |
|
310** |
