Hdv Electronics Co., Ltd.
China Manufacturer with main products: ATM Camera, ATM USB Camera, MINI USB Camera, MINI CCD Camera, IP Camera, USB Endoscope, USB Dome Camera, AHD Camera |
Home
>Products Catalog > USB Camera Module > 0.48 Megapixel ATM USB Camera Module with 3.7mm Pinhole Lens

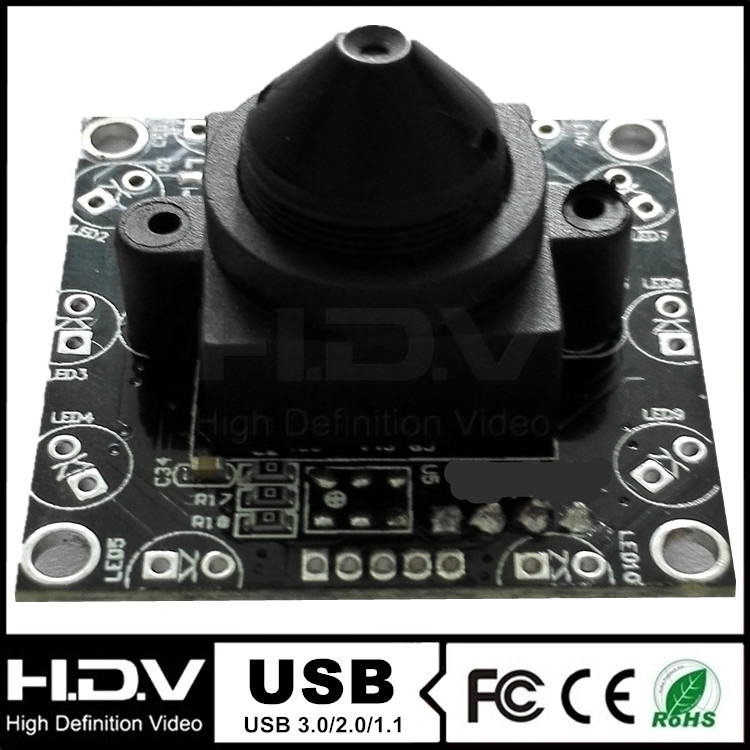

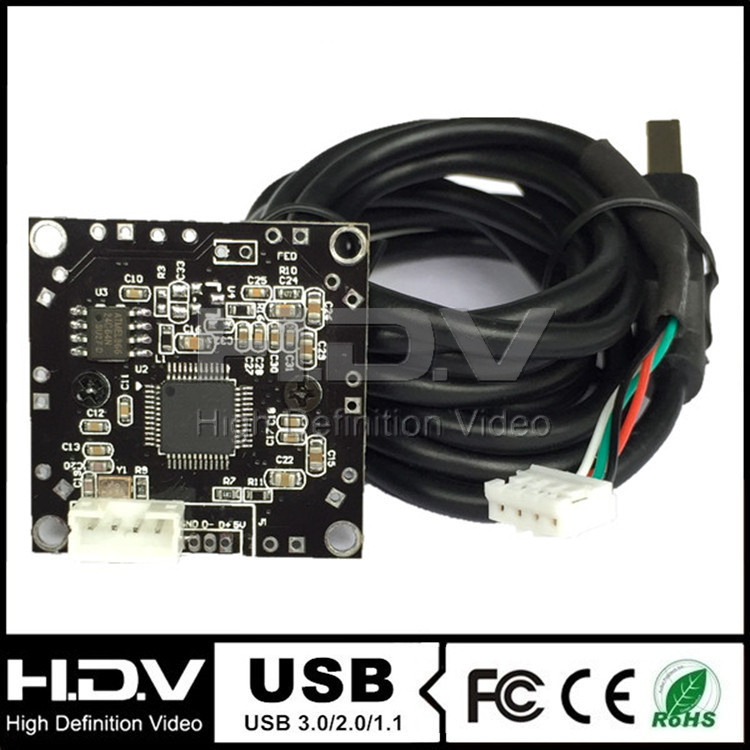

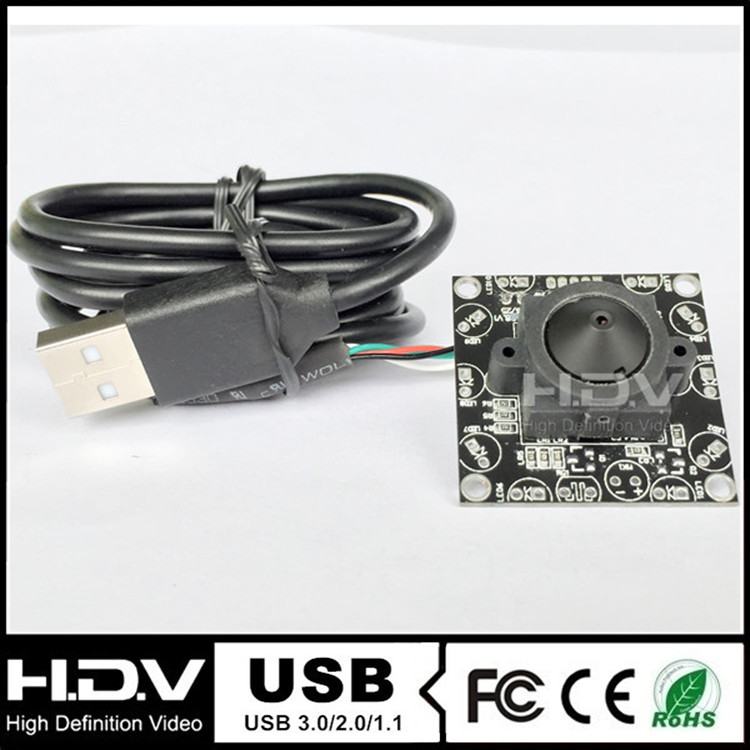

0.48 Megapixel ATM USB Camera Module with 3.7mm Pinhole Lens
| FOB Price: | 1.00 - 25.00 USD/Piece |
|---|---|
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Special Features: Vandal-proof
- Technology: Pinhole
- Sensor: CMOS
- Style: Mini Camera
- Type: Digital Camera
Specifications
H.D.V: the leader in miniaturization, the smallest USB/CCTV/IP cameras for use in ATM/Kiosk.
0.48 Megapixel ATM USB Camera Module with 3.7mm Pinhole Lens
32*32mm 640*480, 3.7mm Pinhole Lens 0.1Lux 30fps UVC MINI USB Camera for ATM and Kiosk
this USB camera design for Intelligent machines,special Kiosk, VTM, CRS, ATM machine, mini shell
Order Symbol:
- HDV-USB048MP-P3.7 USB Camera with 3.7mm Pinhole lens
- HDV-USB048MP-L3.6 USB Camera with 3.6mm Board lens
- HDV-USB048MP-F1.78 USB Camera with 1.78mm Board lens
- HDV-USB048MP-L2.1 USB Camera with 2.1mm Board lens
- HDV-USB048MP-L2.8 USB Camera with 2.8mm Board lens
- HDV-USB048MP-L4.2 USB Camera with 4.2mm Board lens
- HDV-USB048MP-L6 USB Camera with 6mm Board lens
- HDV-USB048MP-L8 USB Camera with 8mm Board lens
- HDV-USB048MP-L12 USB Camera with 12mm Board lens
- HDV-USB048MP-L16 USB Camera with 16mm Board lens
| Pixels | Resolution | MJPEG(Optional) | YUY2 | |
| 0.48MP | 800(H) x 600 (V) | 30fps-60fps | 30fps | |
| 0.48MP | VGA | 640(H) x 480 (V) | 30fps-60fps | 30fps |
| 0.48MP | 352(H) x 288 (V) | 30fps-60fps | 30fps | |
| 0.48MP | 320(H) x 240 (V) | 30fps-60fps | 30fps | |
| Camera | Size (mm) | 32*32mm/38*38mm | 28*28mm | 23*23mm | 30*25mm |
| ODM/OEM | Other sizes optional, is customized, Min. one piece accpted. | ||||
| Image sensor | 1/5" CMOS | ||||
| Resolution | 0.48Megapixel | ||||
| Min.Illumination | 0.5Lux | ||||
| Night Vision | Support for Dome/bullet type | ||||
| Effective Pixels | 640×480 pixels(VGA); 320×240 pixels(QVGA) | ||||
| Syetem | Windows 2000;Windows XP;Windows VISTA;Windows 7....; | ||||
| Linux(In 2.6.18 above the kernel version);Mac ps3; Android. | |||||
| Frame | 30fps | ||||
| S/N ratio | More then 48 dB (AGC off) | ||||
| Exposure | Auto / Manual(Shutter Speed & AGC Control) | ||||
| White Balance | Auto / Fixed / Indoor / Initial / Outdoor | ||||
| Gamma | Auto r>=0.45 | ||||
| Picture | Brightness / Contrast / Gamma / Saturation | ||||
| Miscellaneous | Mirror / Flip / Back Light / Flickerless | ||||
| Lens | Standard Lens | 3.7mm Pinhole Lens | |||
| Optional Lens | 2.1/2.8/4.3/6/10mm Pinhole Lens | ||||
| View angle | 5-180 degree optional | ||||
| Industrial Standard |
Power source | DC 5V / 80mA (USB Power) | |||
| Temperature | -20 degree~60 degree (Humidity : 0% RH～80% RH) | ||||
| Interface Type | USB format(Complies with USB 2.0&1.1) | ||||
| Weight (Approx.G) | 50g | ||||

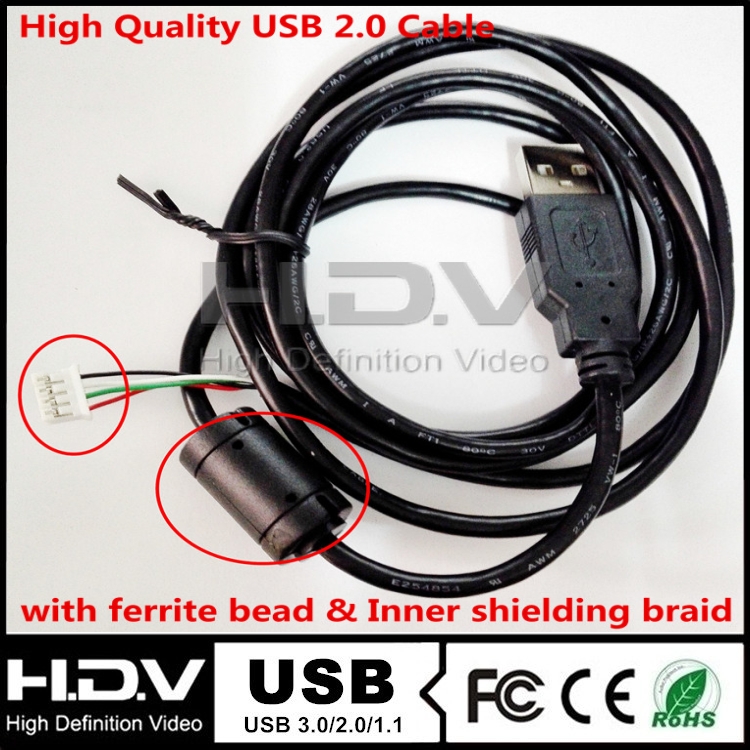

| Accessories | Cable | 1.5m USB cable(2M/3M/5M optional) (can also make the other special length cable according to your requirement) | |||
| Free | Brackets *1,Screw *2,Cable *1,Manul book *1 | ||||
