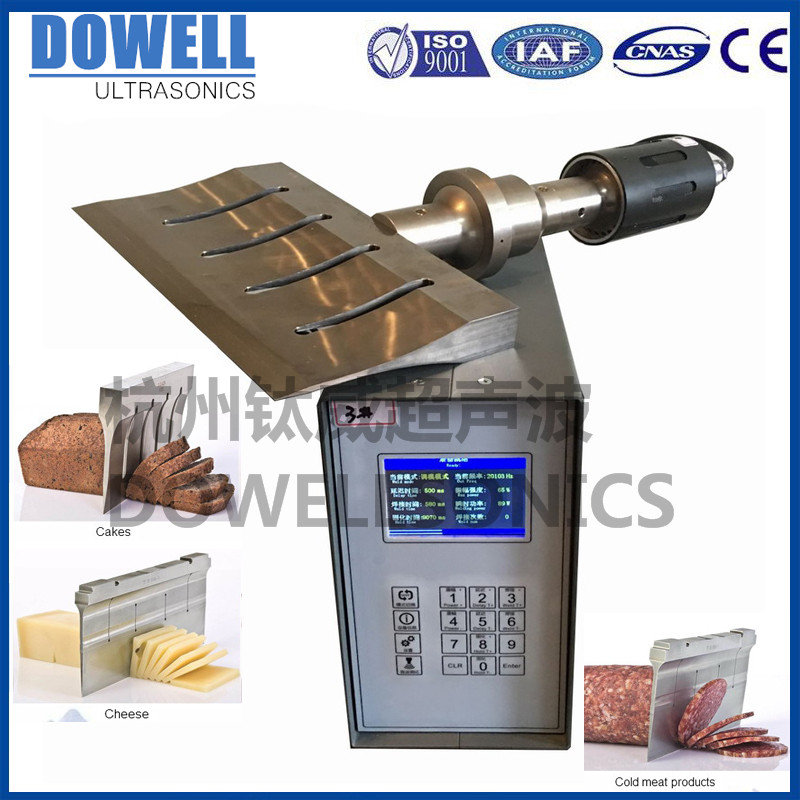

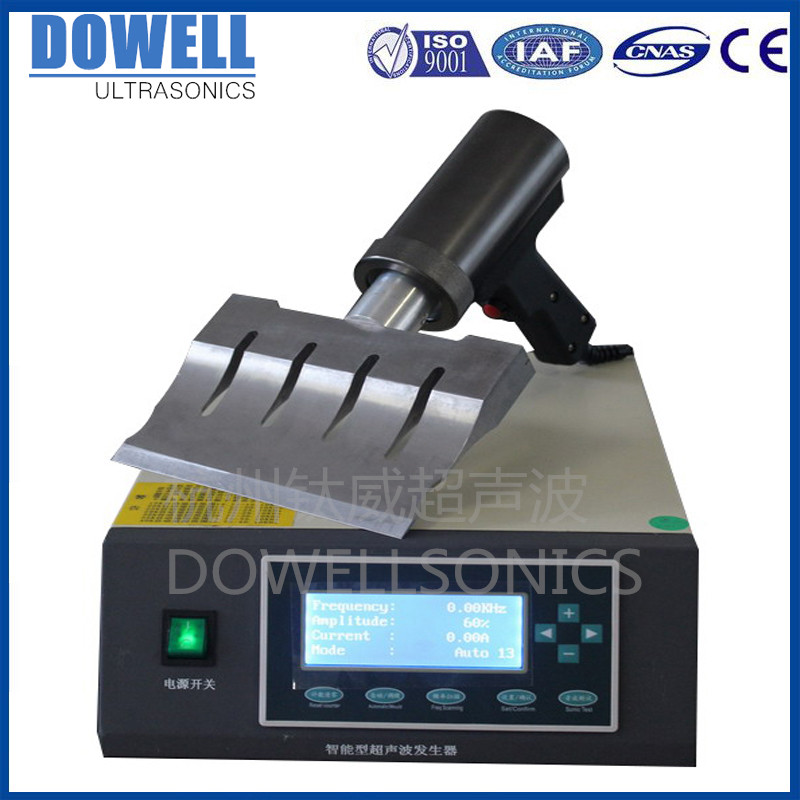

Ultrasonic Ultrasound Food Cutting Machine Bread Cake Cutter

FOB Price:	1,500.00 - 4,000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	7 -15 working days after payment
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

PVC Cutting Machine (Slitter Single)

Price:

Min. Order:1 Set
Cake Cutting Machine

Price:10,833.00-11,333.00 USD/Set

Min. Order:1 Set
Rectangle Products Making Machine/Cutting Machi...

Price:

Min. Order:1 Set
Rail Cutting Machine For Cutting

Price:1.00-1,000.00 USD/Set

Min. Order:1 Set
Pro Q Switch Yag Laser Machine Tattoo Eyebrow R...

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	ultrasonic food cutter cutter slicing machine inner packing:film+foam out packing:carton+polywood case suitable for export

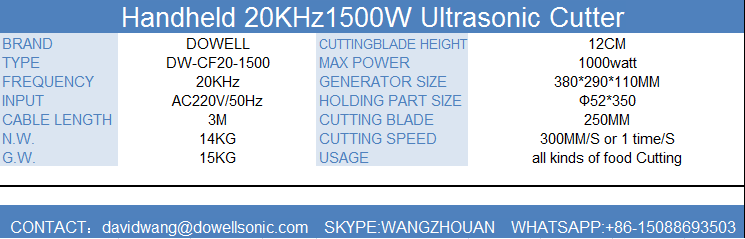

Quick Details

After-sales Service Provided: No overseas service provided
Type: Grain Processing Equipment
Model Number: DW-CF20-2400
Brand Name: DOWELL
ultrasonic frequency: 20khz
ultrasonic generator: digital type
ultrasonic tracking: automatic tracking

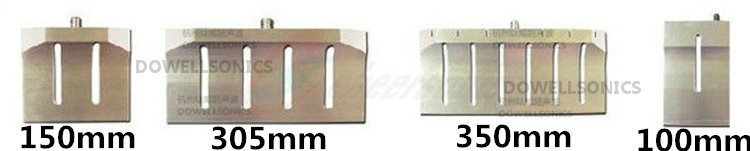

blade size: 150mm
blade material: imported titanium alloy
generator size: 38*28*11cm
generator weight: 10kg

Specifications

Explain of the product:

the ultrasonic generator produce the mechanical energy of vibration more than 20000 times per second to the cutting blade, it cut the food material by local vibration very quickly, the friction on the food surface is very small,the food can apart by the titanium blade very quickly, to achieve the aim of cutting materials requirements. So the ultrasonic cutting does not require very sharp blade, also don't need a lot of pressure, there is no side damage and breakage at all. At the same time, due to the ultrasonic vibration, friction is small, it is not easy to stick on the blade. The material such like the viscous and elastic material, frozen food, such as food, rubber, etc, or inconvenient to add pressure on the cutting object, it will have particularly effect.
Ultrasonic food cutting advantage and features:
1.the cutting incision is smooth, reliable, accurate trimming,
2. It is no deformation, no warped edge,.
3.No deformation after cutting.
4.the working is stable and cutting speed is fast, non-stick knife, etc
5.Easy to operate, no need professional person, save time and labor force
6.Handheld type is available and workers will be not tired after long operate
7.Can be install onto the PLC robotic arm

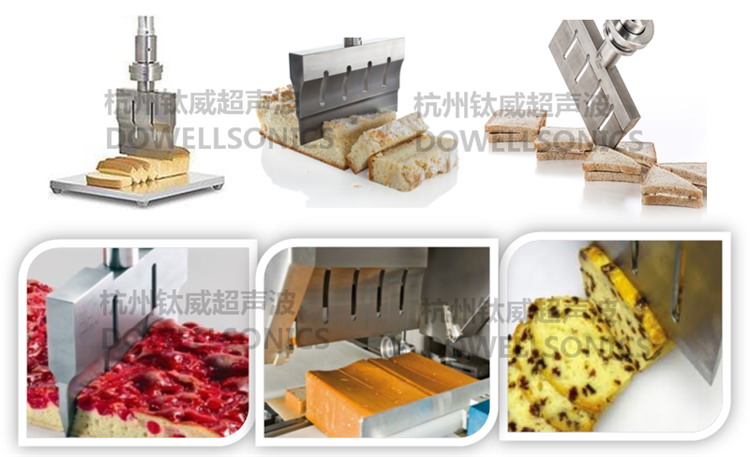

Applicable industry:

1. Food cutting

2. Cake cutting

3. Rubber

4. Cheese bread flour cutting

5. Cookie cut

6. Jelly nougat cutting

7. Candy

8. Pizza cheese butter cutting

9. Frozen meat cake,aquatic plant fiber, nut cutting

10. All kinds of soft material cutting

ultrasonic ultrasound food cutting machine bread cake cutter

Main configuration:
1*pcs oscillator(transducer,booster,cutting blade),
1*pcs Aluminum alloy for handheld holding,
1*pcs generator (drive power supply)

250mm width
ultrasonic ultrasound food cutting machine bread cake cutter
