Zhejiang Rongbang Cable Co., Ltd.
China Manufacturer with main products: Coaxial Cable, Data Cable, RG6, RG11, LMR400 |

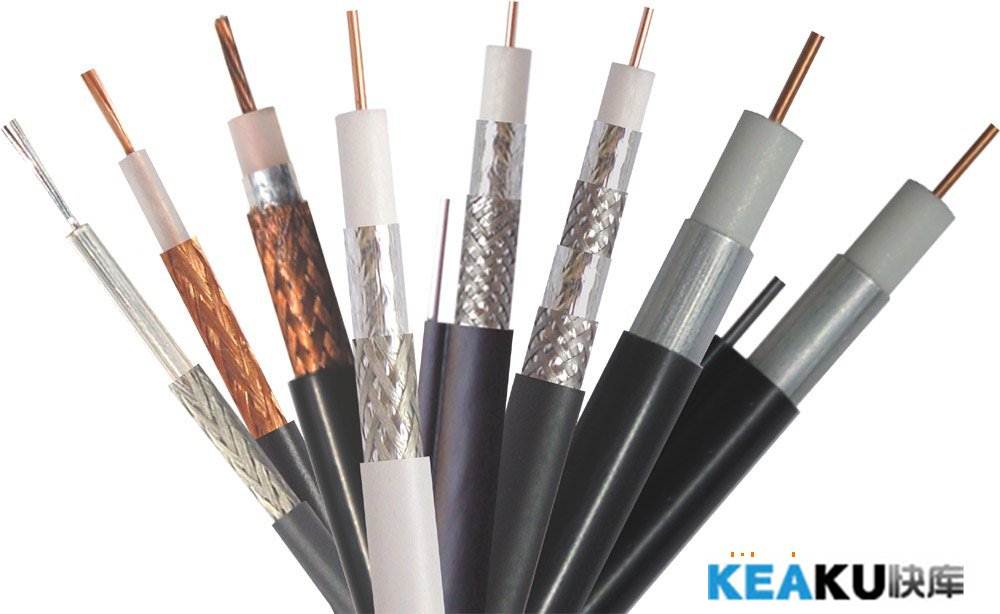

RG6 Coaxial Cable
| FOB Price: | 30.00 - 79.00 USD/Kilometer |
|---|---|
| Supply Ability: | 18,000 Kilometer(s) per Month |
| Shipping: | FOB NINGBO PORT |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | PALLETS |
Quick Details
- Model Number: RG
Specifications
Product Description
Coaxial Cable for CATV and Satellite (RG6U-F660BV):
A. Feature:
Low loss, high frequency, easy installation, UL approved, Foxtel approved. Widely used in satellite, CATV network.

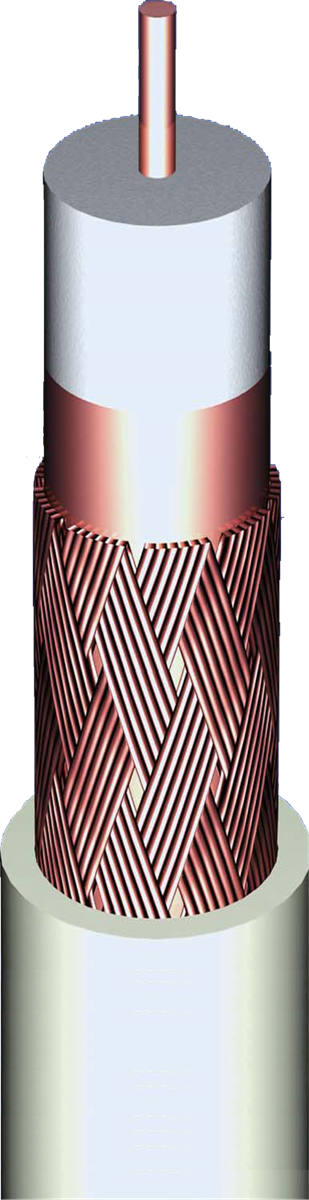

B. Construction:
- Inner conductor: 1.02mmCCS / Bare copper
- Insulation: 4.57mm Foam Polyethylene
- Shield: Aluminum, Tinned, Bare Copper braiding
- Jacket: FR-PVC, UV rated for Sunlight resistance or PE compound or LSZH sheath
- Messenger: with or without 1.3steel wire messenger
C. Attenuation:
| Frequency(MHz) | Max Attenuation(dB/100ft) | Max Attenuation(dB/100m) |
| 5 | 0.6 | 1.9 |
| 55 | 1.6 | 5.2 |
| 187 | 2.8 | 9.3 |
| 211 | 3.0 | 10.0 |
| 400 | 4.1 | 13.5 |
| 500 | 4.6 | 15.0 |
| 750 | 5.6 | 18.5 |
| 860 | 6.1 | 20.0 |
| 1000 | 6.6 | 21.5 |
| 1500 | 8.2 | 26.8 |
| 1800 | 8.8 | 28.9 |
| 2200 | 9.8 | 32.2 |
| 3000 | 11.5 | 37.6 |
D. Model list:
F660BV, F690BV, F660BVM, F690BVM, F660BE, F690BE, F6TSV, F6TSE, flooded Apd jelly items.
E. Packing:
305m/wooden drum, 100meter/roll, Pull easy box
F. Application:
Widely used in satellite, CATV network
Other products:
RG11 items: F1160BV, F1190BV, F1160BVM, F110BVM, F1160BE, F1190BE, F11TSV, F11TSE, flooded Apd jelly items.
RG7 coaxial cable, RG59 coaxial cable, trunk line cable QR540JCA, QR540JCAM-109.
Mil standard coaxial cable RG58C/U, RG59B/U, RG174U, RG213U. RG8.
DFB Series: 5DFB, 7DFB, 8DFB, 10DFB
LMR Series: LMR195, LMR200, LMR240, LMR400 coaxial cable 50 ohms, foam PE insulation
UK cable series: BT2003, BT 3002, BT2002, single core cable, 8 core cable, 16 core cable.
