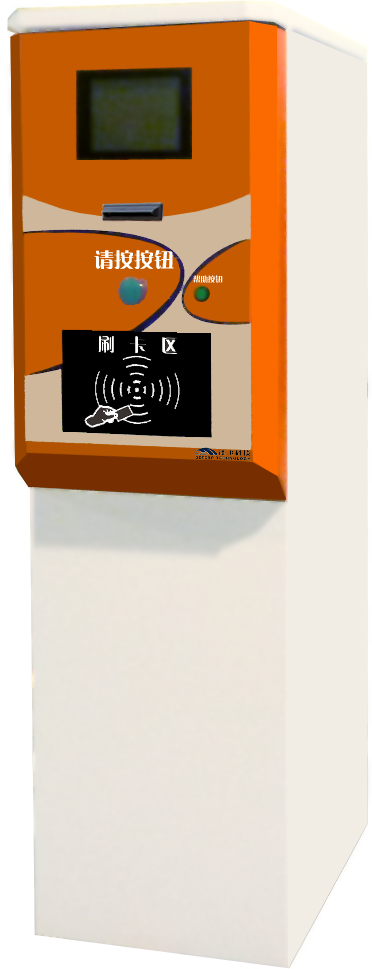

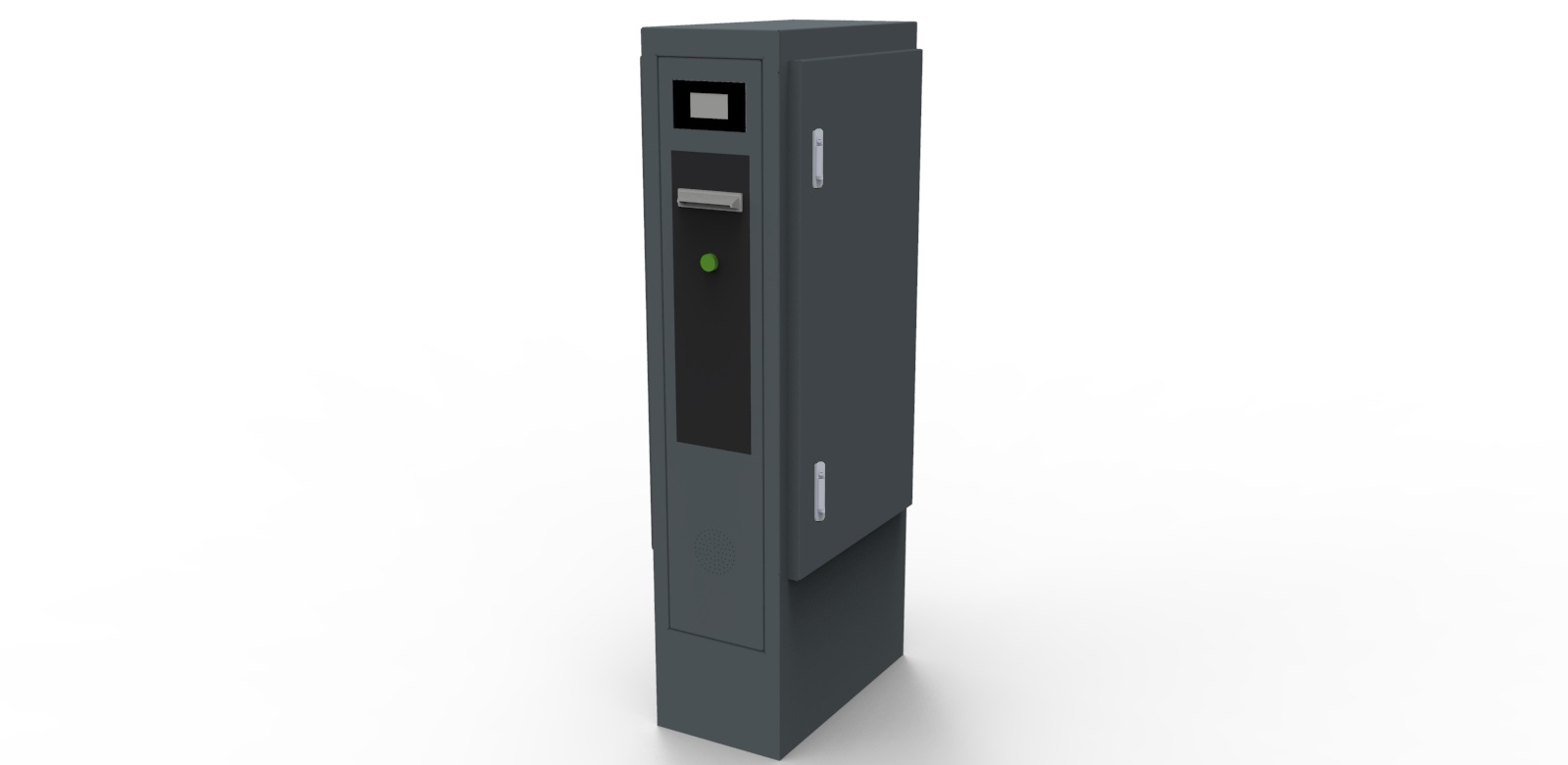

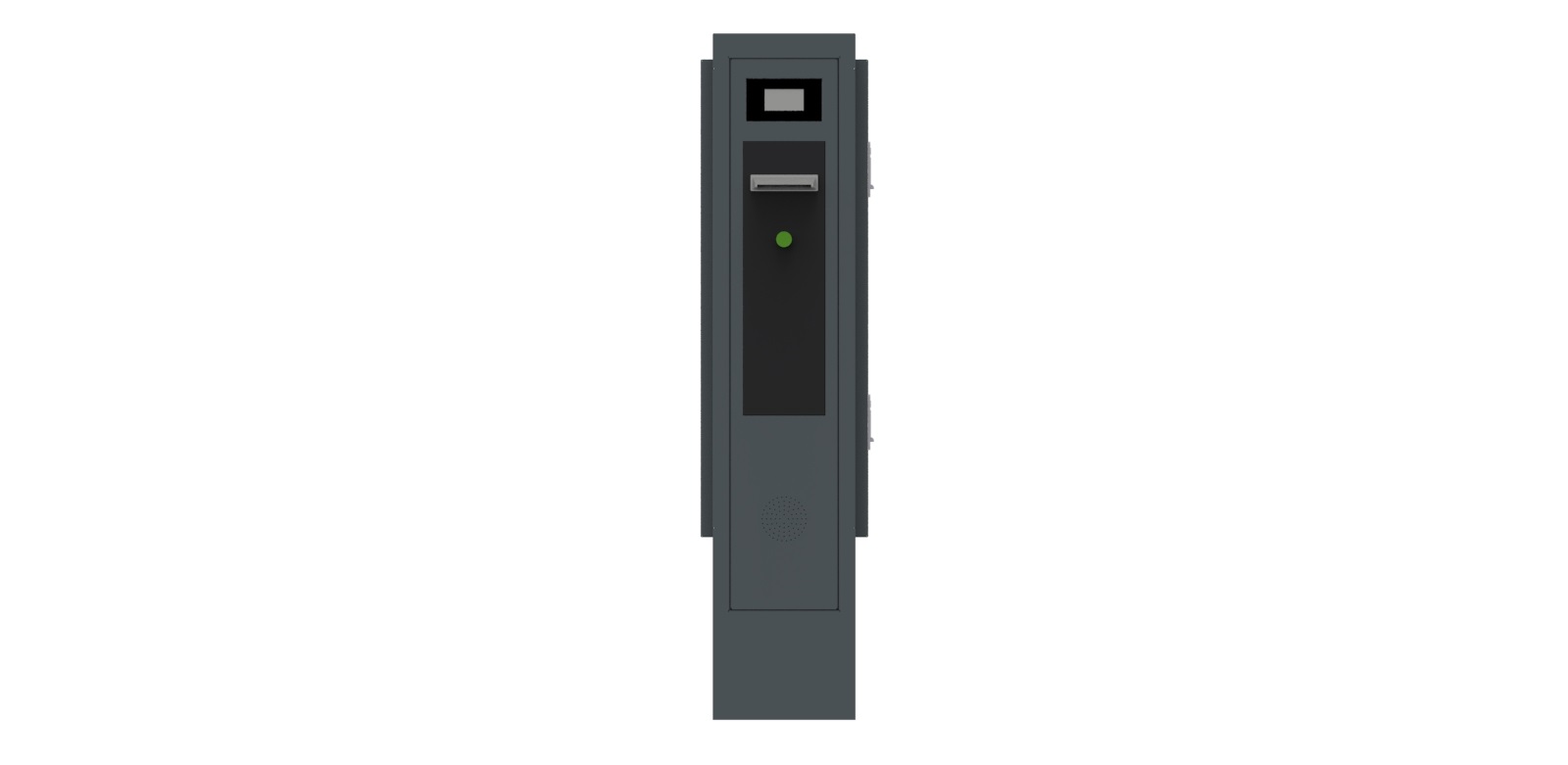

Parking Ticket Machine

Specifications

The following example is for you reference.



Feature :

1) Using thermal paper, economic and highly stable;

2) Support IC/ID/RFID card;

3) Easy maintenance, large size paper roll maximum to 260mm with

7500 copies continuation dispensed tickets, particularly suitable for large

volume of the parking lot;

4) With lightning protection, overload protection, anti-jamming protection etc., and can work in

severe condition;

5) Barrier gate will be opened after taking the ticket;

6) Friendly customer interface (LCD) and optional voice prompt module;

7) Remote access function with the help of software to realize the remote data querying and

monitoring;

8) Works online and offline with Smart link function

9) Easily modify its working parameters including time, date, ticket

number and parking lot information etc. with external keyboard;

10) Support the standard RS485, TCP/IP communication protocol;

11) Flexible compatibility can work directly with most manufacturer's barrier gates, loop detector etc.

Technical details :

1) Product Name: TD81 Parking Lot Ticket Dispenser

2) Case Dimension: 500*310*1250(D*W*H)

3) Working voltage: DC24V/AC110V 60Hz/AC220V 50Hz

4) Working Temperature: -35degree--+65degree

5) Vehicle Detection: Support

6) Card Type: IC/ID/RFID. Optional

7) Offline Information Storage: One Million messages

8) Communication Port: RS232/RS485, TCP/IP, Optional

9) Net Weight: 60KG

10) Consumption: 30W (normal); 120W (max)

number and parking lot information etc. with external keyboard;

10) Support the standard RS485, TCP/IP communication protocol;

11) Flexible compatibility can work directly with most manufacturer's barrier gates, loop detector etc.

Company introduce :

  Defero technology originated from Canada,warehouse and manufacturing in Jingsu,China,mainly supply Parking system and Auto Fare collection system.

1,In the parking field:   Defero provides intelligent parking management system including entry &exit station,parking finder,RFID reader,automatic boom barrier,auto pay station,parking guidance system and LPR.
We are the main supplier of Park 'Nfly,who is the leader in airport parking.Each year, over 2 million dollars turnover is from export sales to North America market.

2,In the automation field:  Defero provides Automatic Fare Collection equipment used for Bus stations,Tour sites,Hospitals,Airports,Metros,Canteens,Washrooms.etc,we occupy 70% of China's bus station APS. Besides we have supplied APS for wash rooms in poland and cantee of Samsung.

3,Customers:  we have projects in Hospital,Airport,Community,Tour site,Shopping Mall,Hotels,Government,Bus Station,Cinema,University.
