Htfuture.Ltd
China Manufacturer with main products: Optical Fiber, Optical Transceiver, Single Mode, Single-Mode Fiber, Sfp, Module, Fiber Optical |

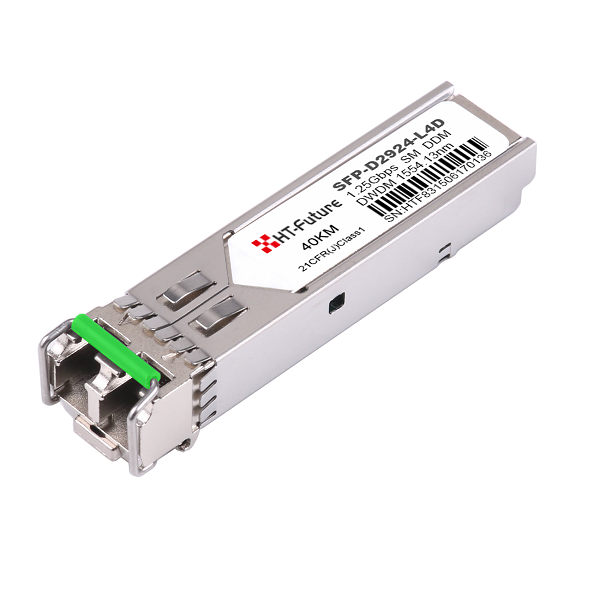

BIDI CWDM DWDM SFP SFP Transceiver
| FOB Price: | 10.00 - 200.00 USD/Bag |
|---|---|
| Supply Ability: | 10,000 Bag(s) per Month |
| Shipping: | port |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | box |
Quick Details
- Model Number: SFP-Cxx03-12
- Brand Name: htfuture
- type: sfp
- voltage: 3.3
- distance: 204080
- temperature: 0-85
- rate: 10g
Specifications
the Transceiver consists of three sections: a DFB laser transmitter, a APD Photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control Unit. All modules satisfy class I laser safety requirements. It is compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1, also with Fiber Channel per FC-PI-2 Rev. 10.0. Also simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3Z.
Product Features
Form Type: |
SFP |
Data Rate: |
155Mbps, 1.25Gbps, 2.488Gbps, 4.25Gbps |
Transmission Distance: |
40KM, 80KM, 120KM |
Wavelength: |
CWDM Wavelength |
Cable Type: |
SMF |
Interface: |
Duplex LC/UPC |
DDM Support: |
Yes |
Operating Temperature: |
Commercial: 0°C to +70°C |
Voltage: |
3.3V |
Industrial: -40°C to +85°C | |
Regulatory Compliance: |
CE,FCC,ROHS COMPLIANT, SFP MSA and IEEE802.3Z | ||
Applications
L Switch to Switch Interface
L Fast Ethernet
L Switched Backplane Applications
L Router/Server Interface
L Other Optical Links
Ordering Information
Part Number |
Data rate |
Transmission Distance |
Center Wavelength |
Average Output Power (dBm) |
Receiver Sensitivity (dBm) |
155Mbps |
80KM |
CWDM DFB |
0 ~ 5 |
＜-34, PIN | |
SFP-CXX03-15 |
155Mbps |
120KM |
CWDM DFB |
1 ~ 5 |
＜-37, APD |
SFP-CXX24-L4 |
1.25Gbps |
40KM |
CWDM DFB |
- 5 ~ 0 |
＜-23, PIN |
SFP-CXX24-L8 |
1.25Gbps |
80KM |
CWDM DFB |
0 ~ 5 |
＜-23, PIN |
SFP-CXX24-12 |
1.25Gbps |
120KM |
CWDM DFB |
0 ~ 5 |
＜-31, APD |
SFP-CXX48-L4 |
2.488Gbps |
40KM |
CWDM DFB |
-5 ~ 2 |
＜-18, PIN |
SFP-CXX48-L8 |
2.488Gbps |
80KM |
CWDM DFB |
0 ~ 5 |
＜-28, APD |
SFP-CXX4G-L4 |
4.25Gbps |
40KM |
CWDM DFB |
-5 ~ 2 |
＜-18, PIN |
SFP-CXX4G-L8 |
4.25Gbps |
80KM |
CWDM DFB |
0 ~ 5 |
＜-28, APD |
