Anyang Forging Press Machinery Industry Co., Ltd.
China Manufacturer with main products: CNC Forging Hammer, Hydraulic Forging Hammer, Pneumatic Forging Hammer, Forging Manipuiator, Skew Rolling Machine, Hydraulic Die Forging... |

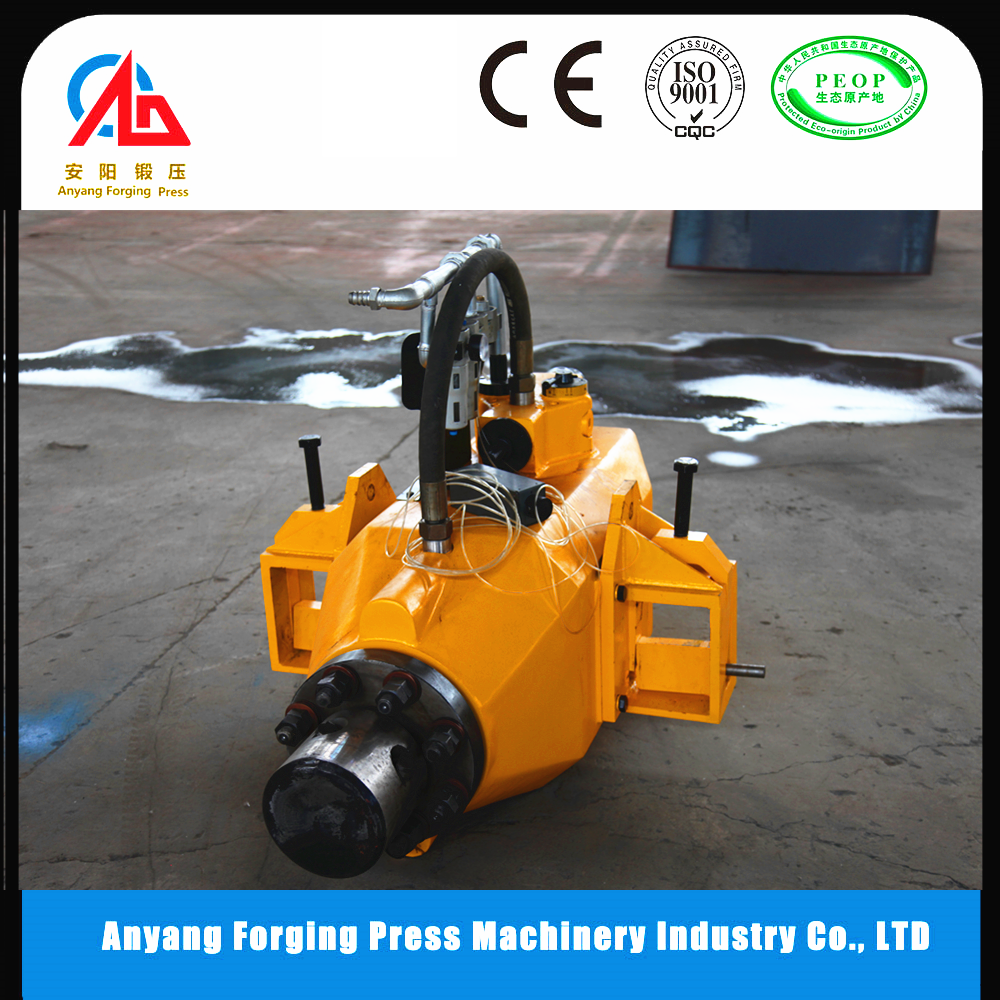

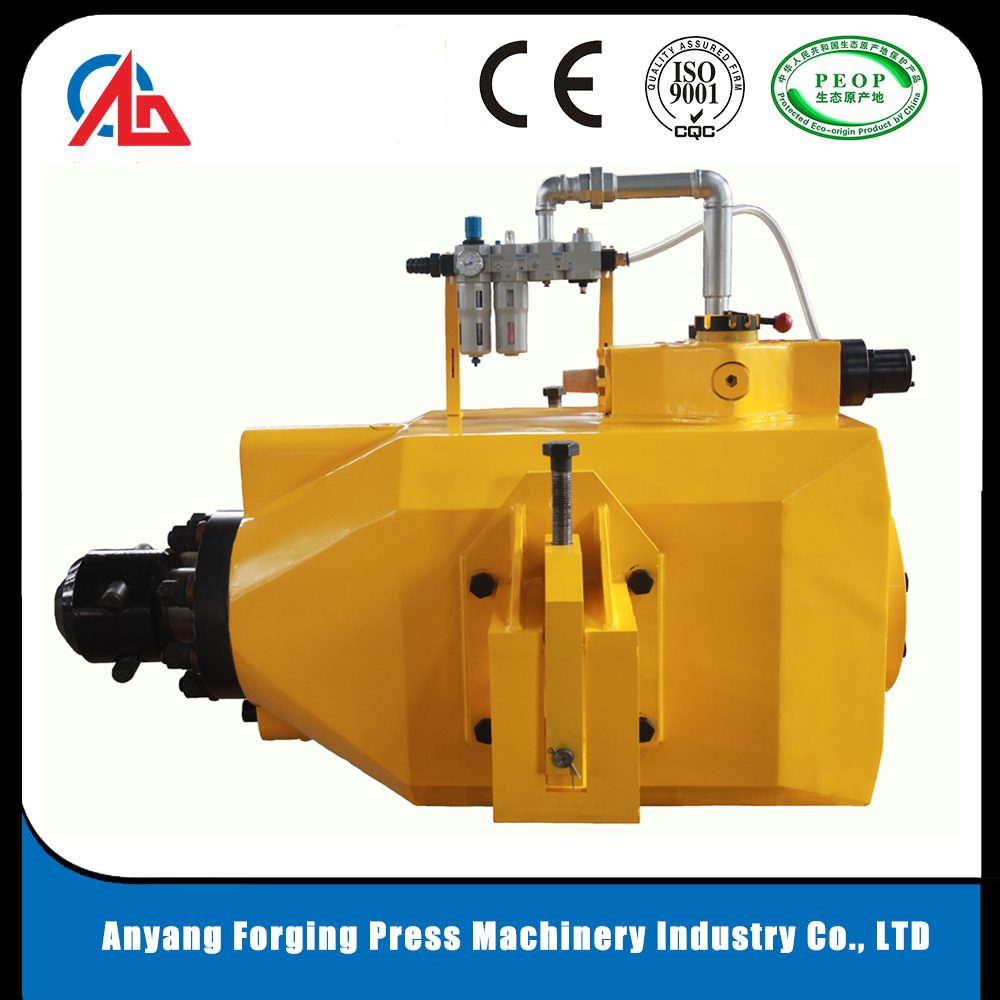

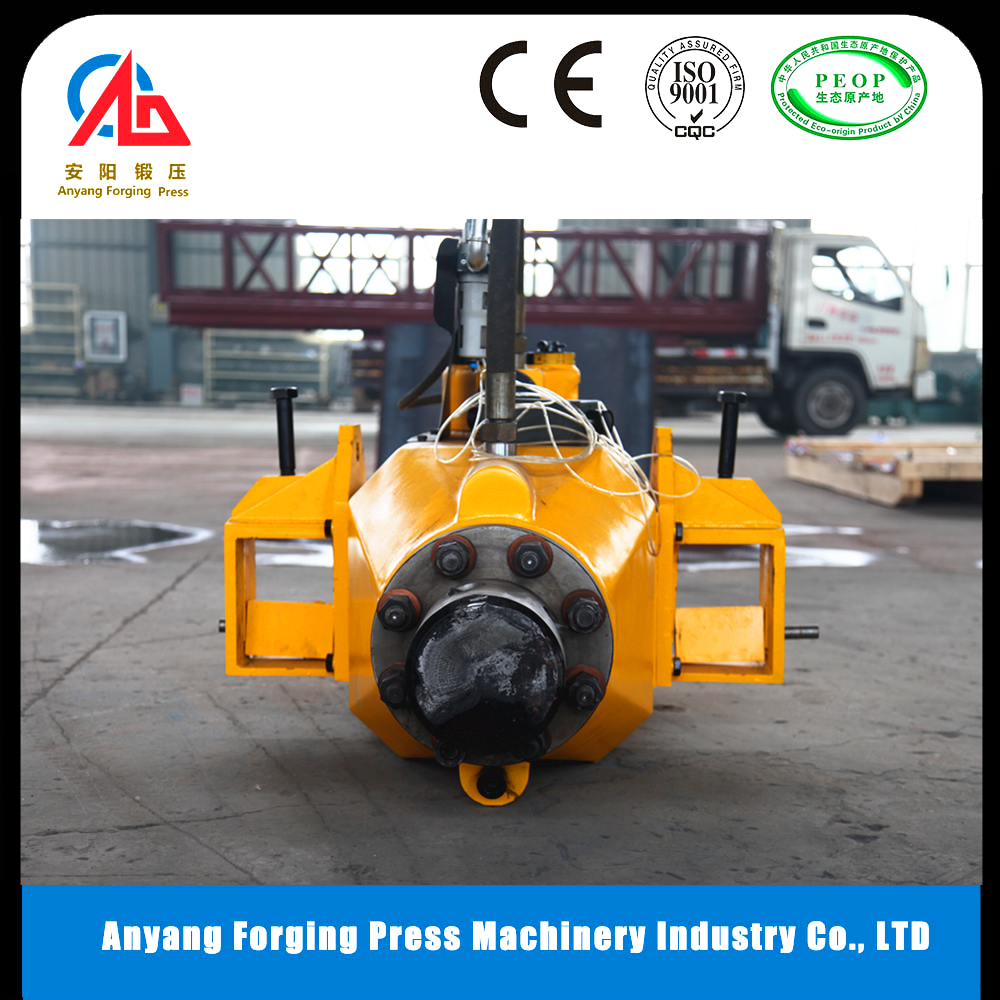

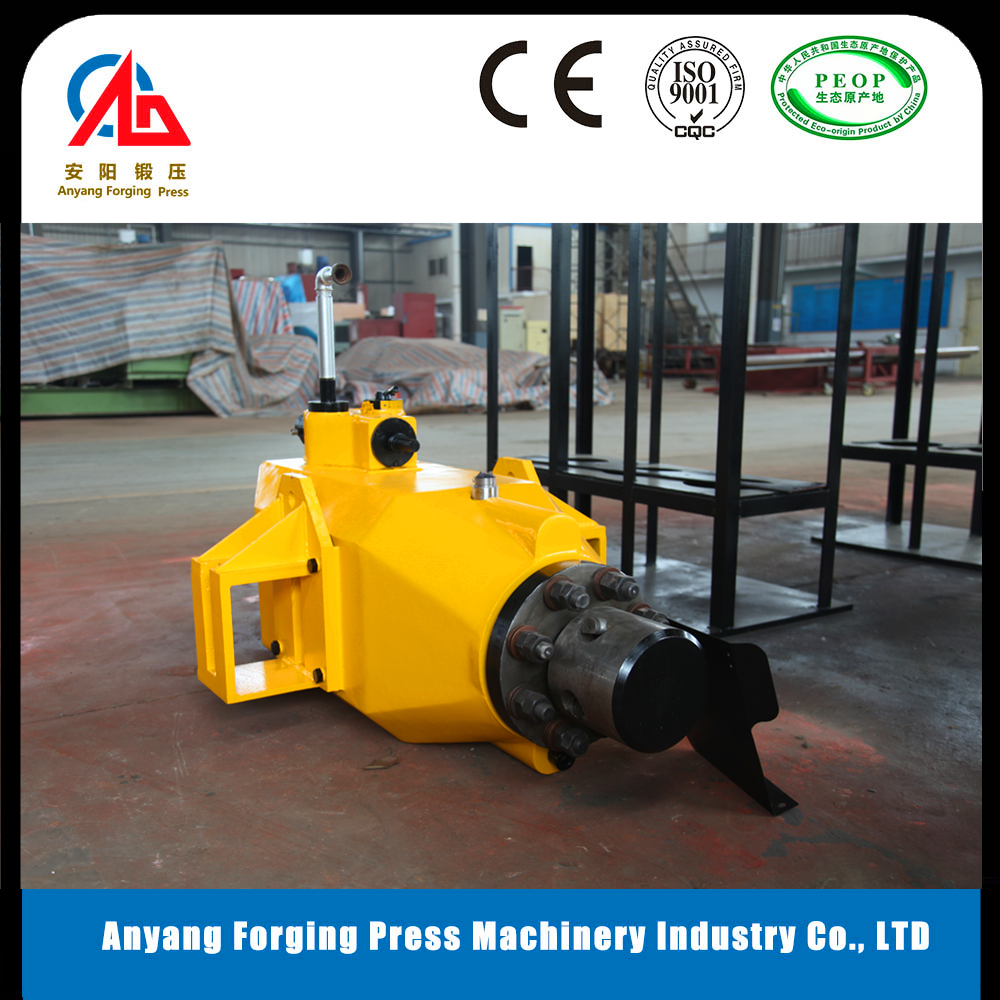

Key Driver Machine for Assemble Wedge
| FOB Price: | 1,000.00 - 100,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set(s) per Month |
| Shipping: | Tianjin port, Shanghai port |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: DXT-200
- Brand Name: Anyang Forging Press
- Machine type: DXT-200
- Max impact energy: 2 kj
- Pressurised air connection: 1 Inch
- Max wedge dimension: 80*120*1000 mm
- Working pressure: 0.6-0.8 MPa
- Max piston stroke: 500 mm
- Weight: 1560 kg
- Matched forging hammer hit energy: 5-75 kj
Specifications
Introduction of key driver machine
Key driverIs used for driving in and forcing our of mounting wedge to forging hammers in combination with a suitable forklift. Key driver is a pneumatically driven pile driver on which the striker head carries out a fast strike movement with the velevant applicable impact energy. Normally there is only one lifting hammer in forging plant, which has great disadvantages. Firstly, it's very hard to control the punching force and direction of lifting hammer. Secondly, it's unsafe to operate lifting hammer and may damage other parts.
Anyang Key driver(wedge driver) is to be used for the driving in and out of mounting wedges to forge hammers in combination with a suitable and permissible forklift. the key driver (wedge driver ) may only be used if it is in impeccable technical condition whilst adhering to all instructions in the operating instructions. Starting and operation of the driver is only possible in two-handed operation. the Key/wedge driving machine be operated by only one operator.
Parameter ofKey driver machine:
