Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: T/C
- Certification: ISO9001
- Brand Name: Yornew
- Condition: New
- Weight: 300
Specifications

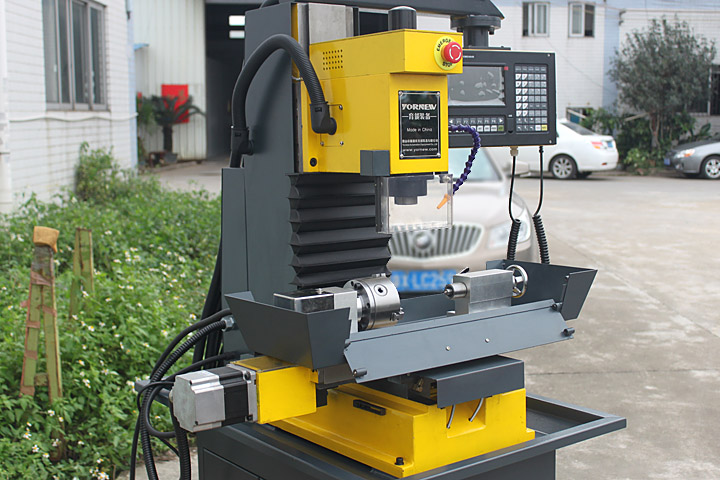

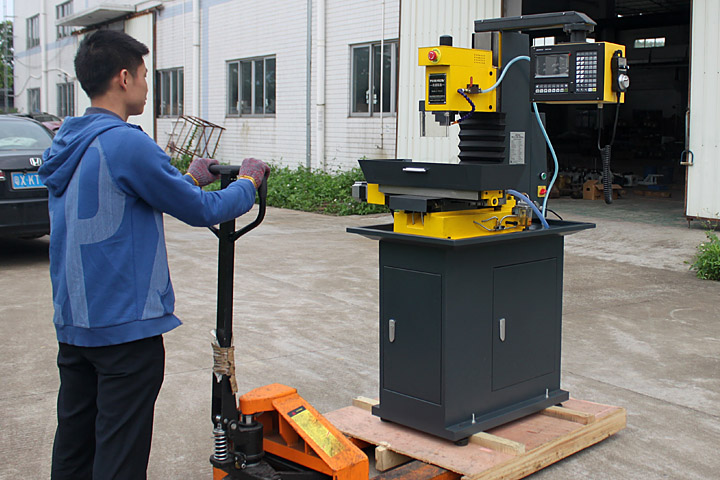

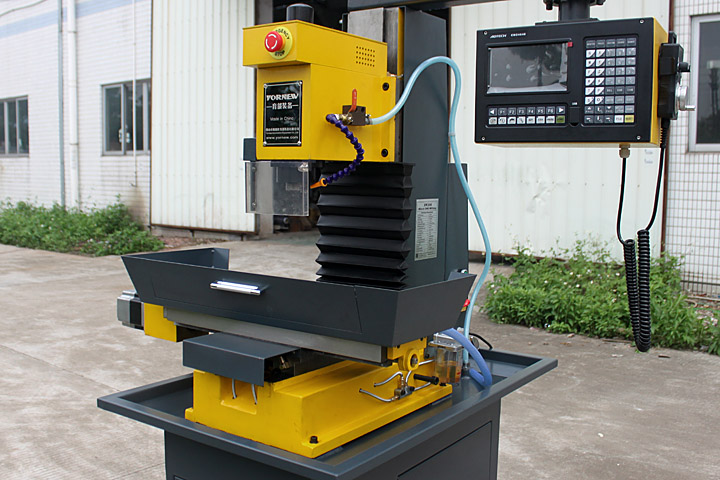

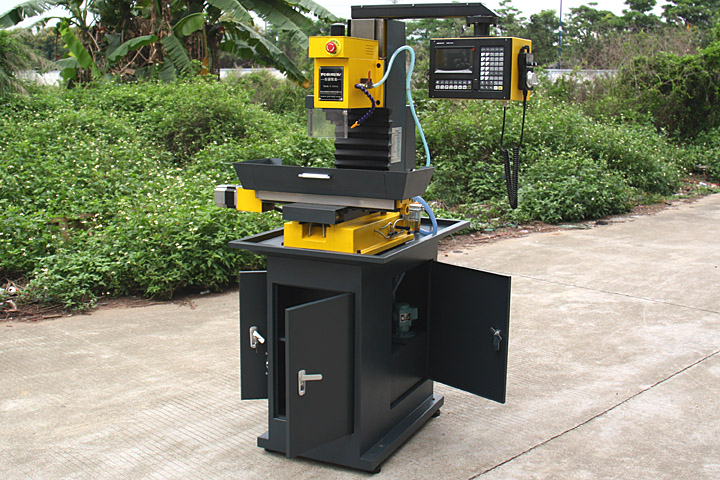

Product No: XK300
Product Name: Micro CNC Milling
Features
(1). Milling CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas
(2). High performance 4 axis CNC milling controller,Optional siemens 808D or GSK980MDc CNC controller.
(3). ARM 9 CPU+FPGA,Ethernet network interface,Support B macro function,PLC function,Mutil-language library function.
(4). USB and RS232 port, DNC function of USB.
(5). the standard spec includes MPG hand wheel.
(6). by MPG handwheel convenient electronic control of each axis of movement.
(7). Selection of high -quality casting materials,more compact.
(8). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(9). 220V single-phase AC power supply.
(10). Safety electrical components of high quality and fast plug.
(11). Pre-installed fourth axis fast interface.
(12). with sink and nozzles.

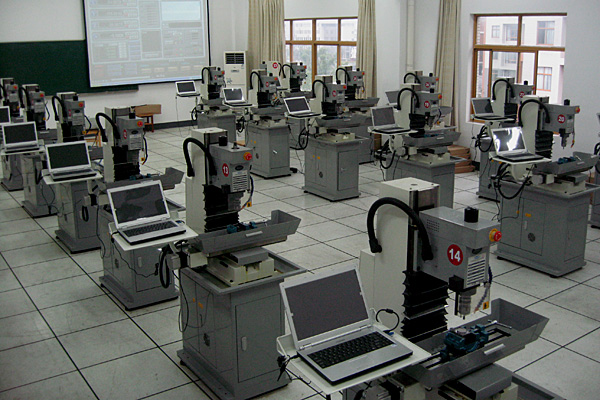

(13). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters | |
|---|---|
| X axis travel | 300mm |
| Y axis travel | 175mm |
| Z axis travel | 270mm |
| Table size | 450*160mm |
| Spindle taper | MT3/R8 |
| Tool DIA. Range | 4-16mm |
| T slot (amount*width) | 3*12mm*43mm |
| Positioning accuracy | 0.03mm |
| Repeatability accuracy | 0.02mm |
| Control system | Adtech 4640,Optional siemens 808D or GSK980MDc CNC controller |
| Instruction | DXF+G code template function, converting DXF automatically to G code for processing |
| MPG hand wheel | 4 axis |
| Spindle motor | 1100W(1.5kw optional) |
| Spindle speed | 100-3500r/min(24000r/min optional) |
| the max moving speed | 2500mm/min |
| the max feeding speed | 1500mm/min |
| Power of X/Y | 4Nm/400W |
| Power of Z | 6Nm/750W |
| Transmission | Ball screw |
| Max. Load | 40kg |
| Table structure | Full cast iron |
| Power | 230/120V |
| Weight(NW/GW) | 300/350kg |
| Overall dimension | 900*950*1750mm |
| Packing size | 1100*1040*2000mm |
