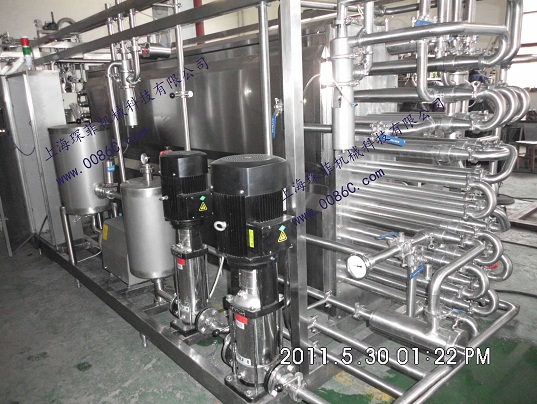

Tubular Sterilizer, Pasteurizer for Juice, Fruit Paste & Etc
| FOB Price: | 20,000.00 - 40,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Month |
| Shipping: | sea transport |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | wooden case for export |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Voltage: 220V/380V
- Model Number: CFM-tubular sterilizer
- Brand Name: ChenFei
- Condition: New
Specifications
Application
It is widely used for the sterilization of
Fruit juice, tea drinks, milk and virgin pulp and other liquid food.
Description
Automatic tubular UHT
Sterilizer is designed and produced absorbing in foreign advanced technology
and adopting many years' experience. the whole system adopts programmable
Control, operating system is image HMI, easy to know all running status of all
Components; control system takes the real-time control of temperature and data
Collection and storage. All valves, electric control system adopt well-known
Brands. It is easy to clean, with advanced structure, reliable usage.
UHT Sterilizer can carry out heating, heat
Preservation, heat recovery and cooling operations. At the phases of
Preheating section and sterilization, heat can be fully recycled. It adopts
Multi-phase to carry out heating, heat preservation, heat recovery and cooling
Operations, which can enhance the usage efficiency of heat energy.
in the whole process of sterilization, the
Temperature of the material are in full automatic control. When using the UHT
Sterilizer, according to user requirements the discharge temperature can be
Adjusted as per the sterilization filler requires.
Features
1, Main structure is made of 304 stainless
Steel
2, thorough sterilization, low energy
Consumption
3, Sterilization is stable and operation is
Simple
4, Independent control cabinet, HMI PLC
Control
5, Have CIP and SIP system
Technical data:
Processing capacity |
1000L/H |
Size |
4500x2100x2000(L*W*H) |
Inlet Temperature |
20~60℃ |
Outlet temperature |
60~90℃ Can be adjusted automatically |
Sterilizing temperature |
125℃ |
Sterilizing Time |
15S |
Steam consumption |
130Kg(≥6kg/cm2) |
Cooling water Temperature |
Aro 25℃ |
Cooling water Consumption |
3T/H |
Have heat recycling System, can save the steam and cooling water |
|
over-hot water Heating plate, sealed water tank; |
|
Independent electric Control panel, HMI PLC controls |
|
Main Configuration:
Item |
Part Name |
Supplier Brand |
1 |
Material Pump |
Yuanan/LYSF |
3 |
CIP,SI Pump(Stainless Hygiene Grade) |
CNP |
4 |
Steam Reducing Valve |
SpiraxSarco |
5 |
Steam Regulating Valve |
SpiraxSarco |
6 |
Steam Hydrophobic Valve |
SpiraxSarco |
7 |
PLC |
Siemens |
8 |
HMI |
Siemens Siemens |
9 |
A.C. Contactor |
Schneider |
10 |
Pneumatic component |
AirTAC |
11 |
Button |
Schneider |
12 |
Intermediate relay |
Honeywell |
13 |
Temperature Controller |
JUMO(German) |
14 |
Air pipe |
AirTAC |
15 |
Paperless recorder |
Xiamen Anton |
