FG Wax Injection Machine with Double Stations 10T for Investment Casting Process

Supply Ability:	3 Set(s) per Quarter
Shipping:	5 months
Payment Terms:	T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	wooden cases

Quick Details

Jewelry Tools & Equipments Type: Wax Injection
Brand Name: FUGE
Model Number: FG-YLJ10T
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE
Voltage: 380V
Condition: New

Specifications

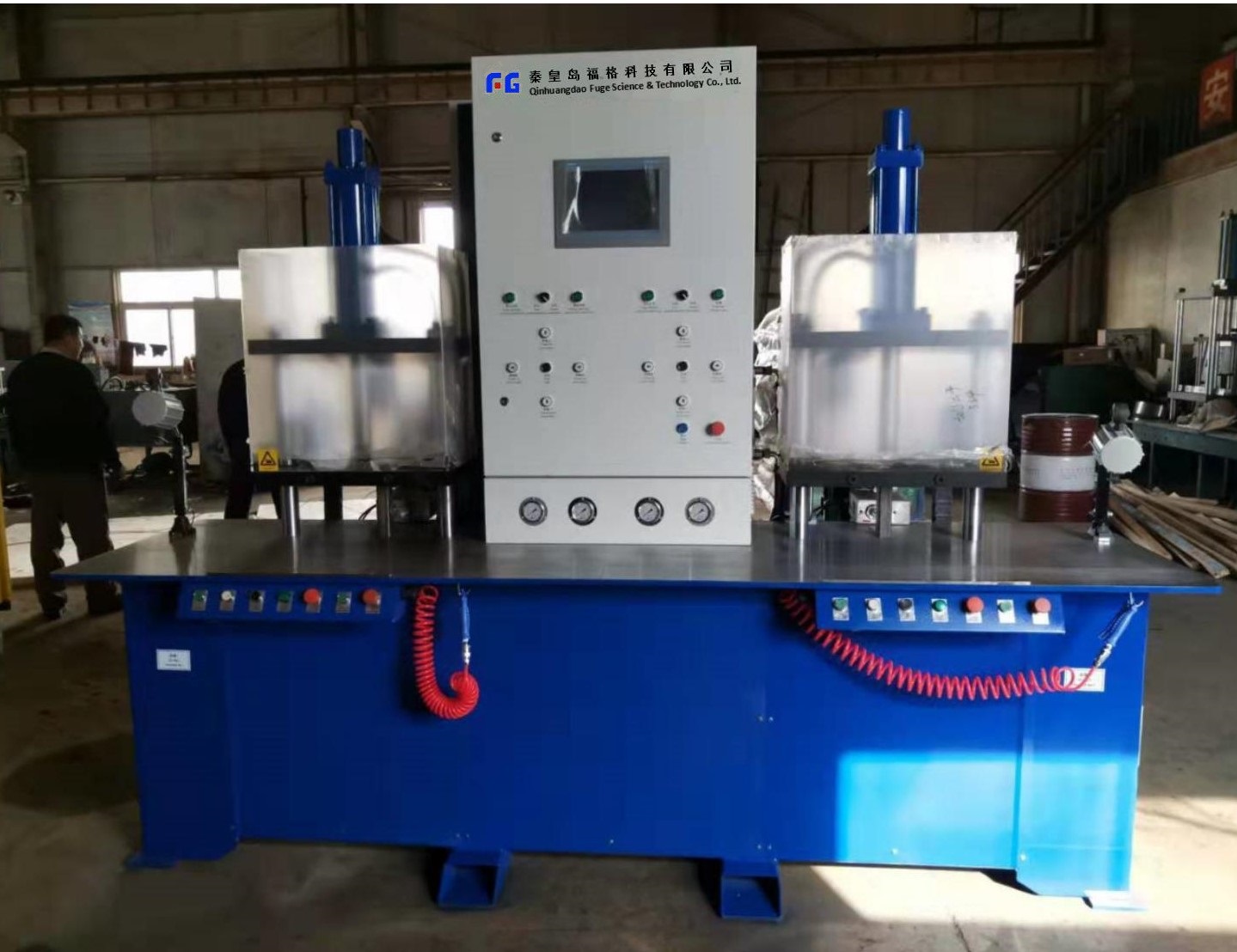

Wax Injection Machine

Pillar Type Double Stations

the Wax Injection Machine is used to make wax patterns in the investment casting process with middle- temperature Wax technology. It features with a multiple improvements of saving energy, high Efficiency and good adaptability.

Features

Advanced Technology

It Features with a bigger wax tank and introduces the technology of wax liquid Cooling step by step to the paste condition suitable for the optimum process Temperature in the wax tank.

Reliable Control

with A PLC control system, the injection temperature, injection time and dwell time Can be controlled automatically.

High-grade Configuration

Electrical components are all imported products or supplied by Joint venture.

Patent

Injection Nozzle and wax pipe are electrical heating, simple and reliable.

Saving Space

the Two stations can work simultaneously, and suitable for the small and medium Size product.

Attractive Appearance

Besides the quality, we also pay special attention to the appearance design and surface Treatment for our machines with the characters of reasonable process, advanced Technology, beautiful appearance and fluent colors.

Specifications

Model		FG-YLJ10T
Structure		4 Pillars
Clamp Force Max.		10T
Injection Pressure		0-6.3Mpa
Wax Tank Capacity		80-120L
Single Shot Capacity		≤1.5L

Note: We can design the special Machines according to the customer's requirements.
