Home >Products Catalog > 8''-28'' Bead Wire Ring Winding Grommeting Forming Extruder Machine

8''-28'' Bead Wire Ring Winding Grommeting Forming Extruder Machine

FOB Price:	35,000.00 - 65,000.00 USD/Set
Supply Ability:	1 Set(s) per Month
Shipping:	According to the contract required
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Standard wooden case for long time sea delivery.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: ISO 9001-2008
Weight: 7500Kg
Dimension(L*W*H): 10500*2200*2800mm
Voltage: 220V/380V/400V
Model Number: 8''-28''
Brand Name: AWI
Condition: New
Bead diameter: 8''-28''
Wire let off shelf: 1-8
Let off shelf applicable for finished wire coil inner diameter: 350mm
Extruder: XJ-65 hot feeding
Wire die plater hole: 1-8
Shaping drum speed: 100r/min
Installed capacity: 36Kw
Dimension: 10500*2200*2800mm
Weight: 7500Kg
Station: Single or two-station

Specifications

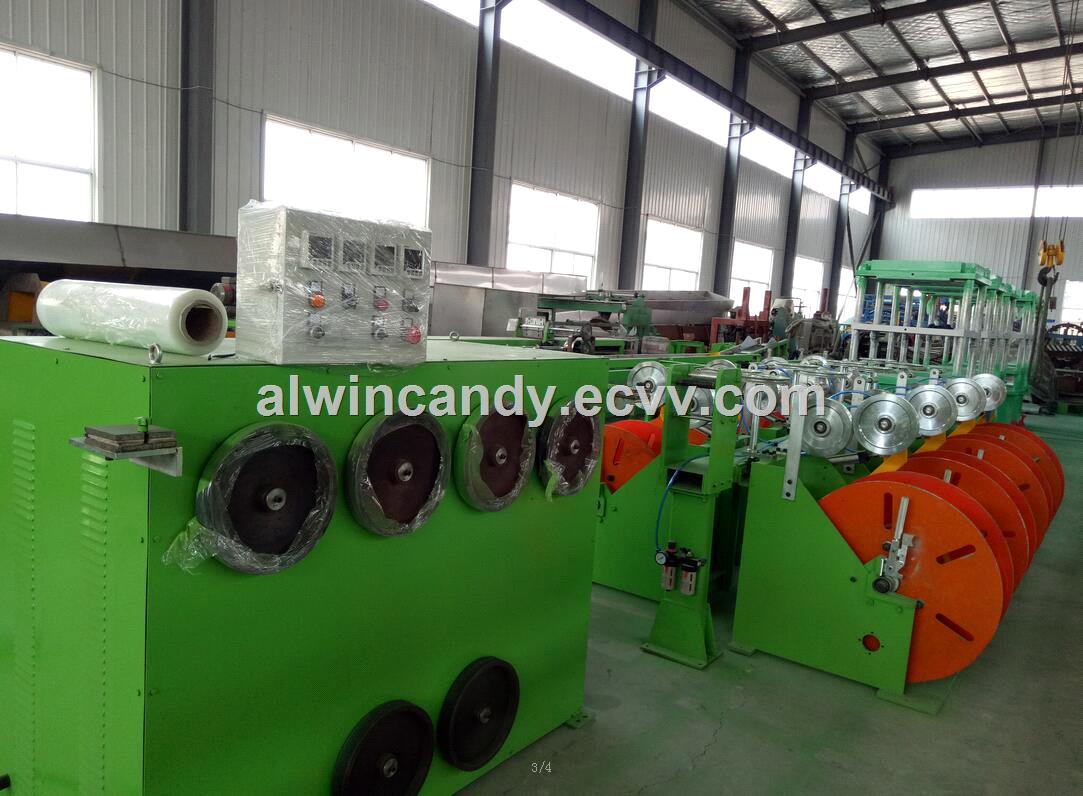

Bead wire grommeting machine

Machine Introduction and Use

BeadwiregRommetingmAchine is uSed to producebead wire circleWhichCross section is square or rectangle, is used on the diagonal tire and the fiber radial tire.

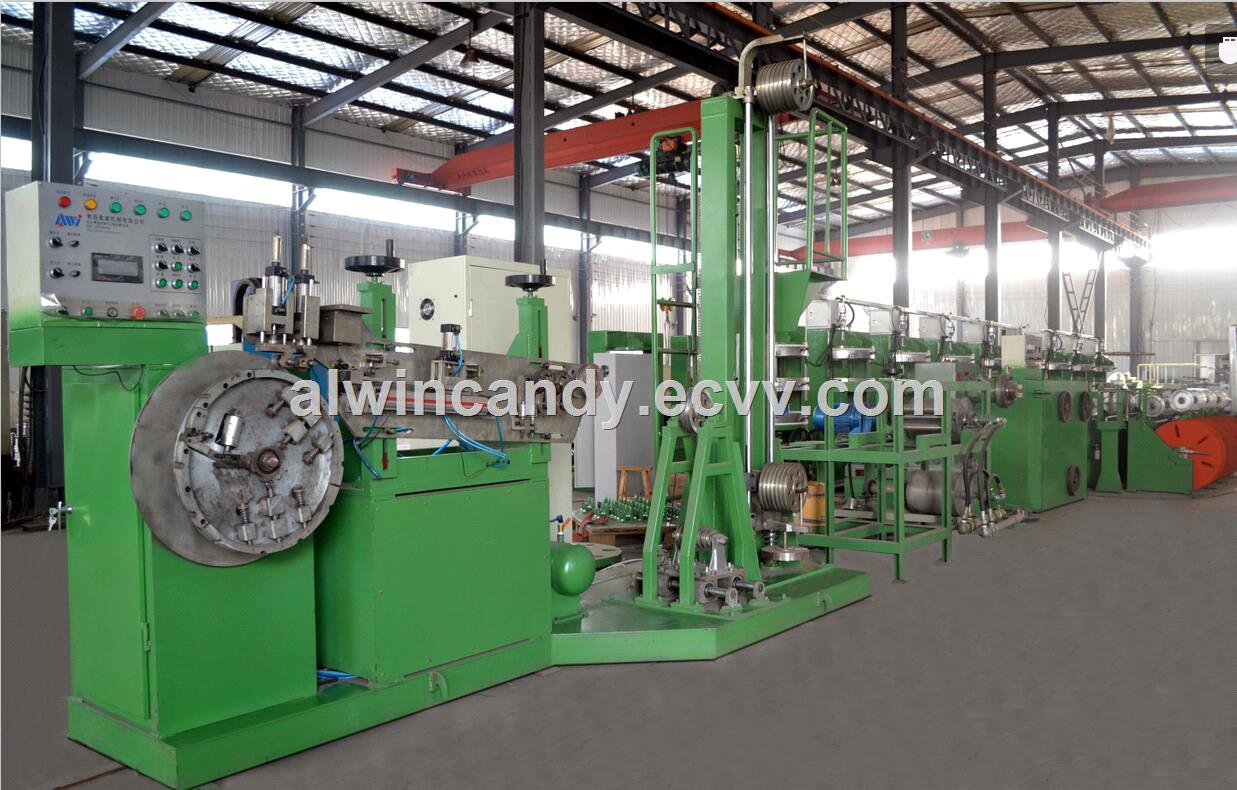

BeadwiregRommetingmAchine feeding,Clamping, unloading operation is a heavy and stressful work. as shown is a kind ofAutomatic bead wire grommeting machine whichcanRealize feeding, clamping,Wrapping,Counting layer, cutting, unloading.

Technical Parameter

Bead diameter (inch)	8-28
Wire let-off shelf (pcs)	1-8
Let-off shelf applicable for finished wire coil inner diameter (mm)	350
Extruder (optional)	XJΦ65(Hot feed)
Wire die plate hole (pcs)	1-8
Shaping drum speed (r/min.)	100
Installed capacity (kw)	36
Overall size (LWH)	1050022002800
