Inner Tube Curing Press Machine

FOB Price:	5,500.00 - 8,500.00 USD/Set
Supply Ability:	30 Set(s) per Month
Shipping:	According to the contract required
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	In standard wooden case for long time sea delivery.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: ISO 9001-2008
Weight: 1600kG
Dimension(L*W*H): 1280*90081770mm
Power(W): 5500
Voltage: 220V/380V/400V
Model Number: LLN-800
Brand Name: AWI
Condition: New
Mold clamping force: 30t
Plate clearance: 340mm
Mold closing time: 3.0-3.0s
Qty. of working layer: 2-layer
Max. stroke: 400mm
O.D. of hot plate: 750mm
Piston dia: 160mm
I.D of hot plate: 180mm
Hot plate steam pressure: 0.8Mpa
Internal pressure: 1.0Mpa

Specifications

LLN-800 Inner Tube Curing press

Application

the machine is mainly used in vulcanizing cycle tube, bicycle tube and so on.

Main technical parameter

(1) Mold clamping force: 30T

(2) Plate clearance:340mm

(3) Mold closing time: 3.0-3.5 Sec

(4) Qty. of working layer:2 layers

(5) Max. Stroke: 400mm

(6)O.D. of hot plate: 750mm (according to your customer'S requirement)

(7) Piston dia.: 160mm

(8) I.D of hot plate: 180mm

(9) Hot plate steam pressure: 0.8Mpa

(10) Internal pressure:1.0Mpa

(11) Hydraulic working pressure: 15Mpa

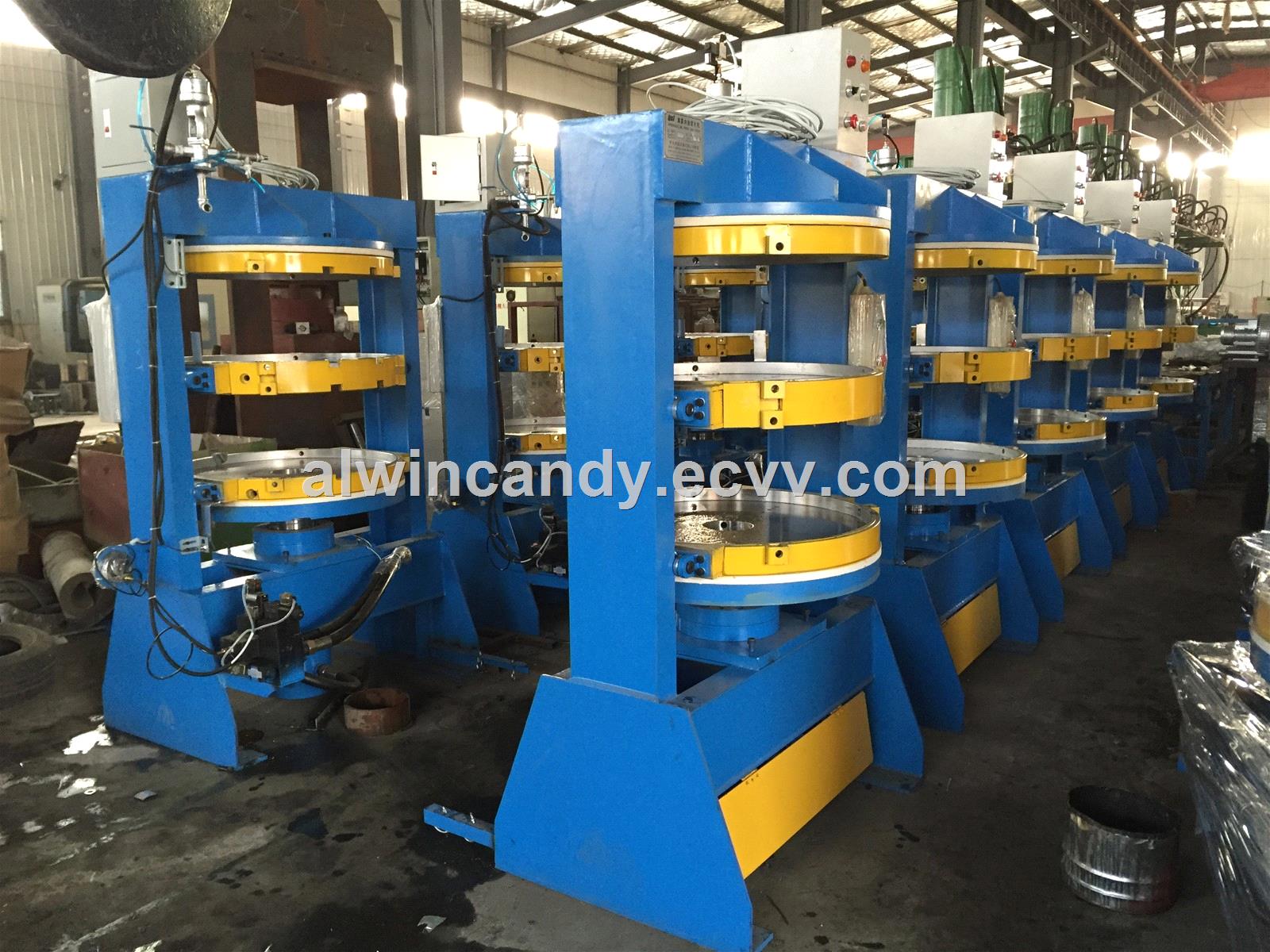

General description of structure

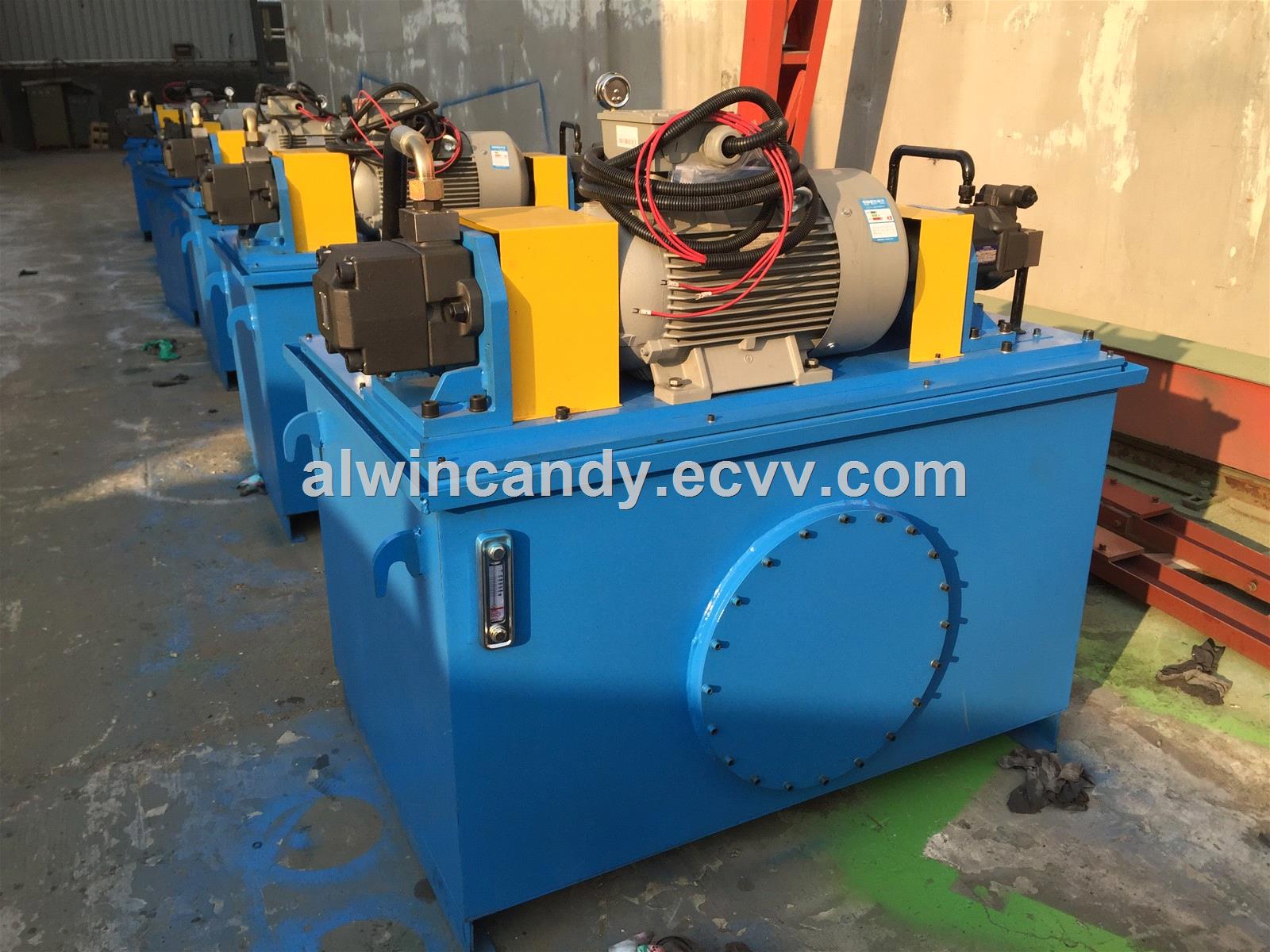

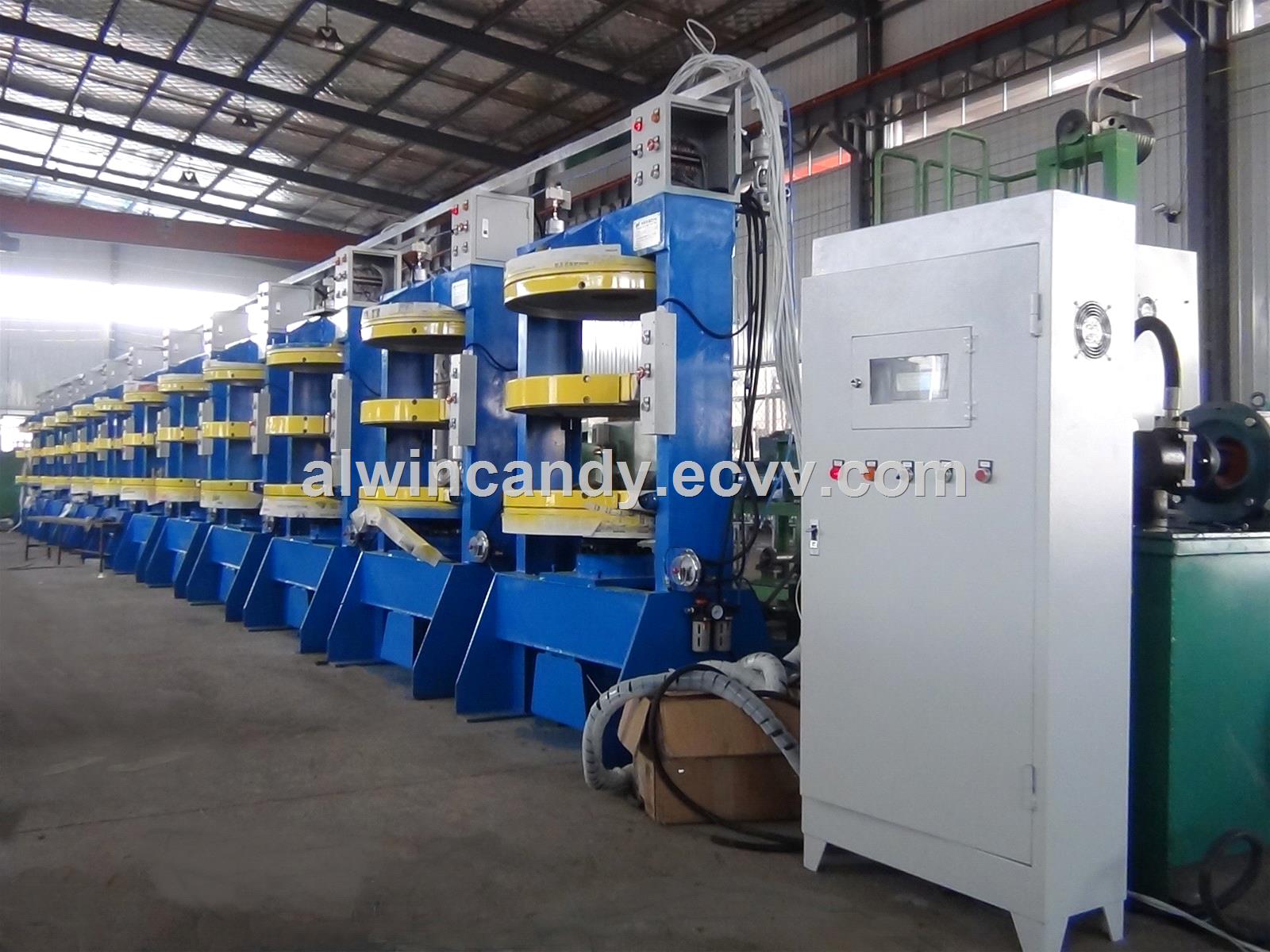

1．the machine mainly consists of the mainframe, hydraulic oil pump, control box and so on.

2．the mainframeMainly consists of the frame, the upper and lower hot plates, the central hot plate, the umbrella type base, the oil cylinder, the piston and so on. the oil cylinder is inside of the frame base. the piston moves up and down in the oil cylinder. It uses double edges dust ring and shaft sealing ring with YX section and shaft ladder ring to avoid leaking. ThE lower hot plate connects to the umbrella type base. and the piston pushes the base to move up and down. the central hot plate moves up and down in the frame guide railwith the help of the guiding wheel. the upper hot plate is fixed on the frame beam. the mold closing action is finished by pushing the umbrella type base to jack up the hot plate. the oil is discharged by the dead weight of the hot plate, base and piston decline when the mold is open.

3. the hydraulic part
