Floating Ball Dead Weight Tester

Supply Ability: 100 Set(s) per Month
Shipping: About 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shaanxi in China
Packaging Details: Standard export package

Quick Details

  • Brand Name: YunYi
  • color: Floating Ball Dead Weight Tester
  • Theory: Pressure calibrator
  • Resolution: Floating Ball Dead Weight Tester
  • Size: Floating Ball Dead Weight Tester
  • Model Number: Y0 series

Specifications

Description

Ball pneumatic deadweight testers as a pressure resource of pressed air and Nitrogen.It isPneumatic loaded pressure Calibrator to use the floating ball.

It is a kind of pressure Benchmark instrument, with nitrogen or instrument compressed air as energy.

It's an ideal equipment that calibrate all kinds of high accuracy of pressure transmitter, differential transmitter and precision of pressure gauge.

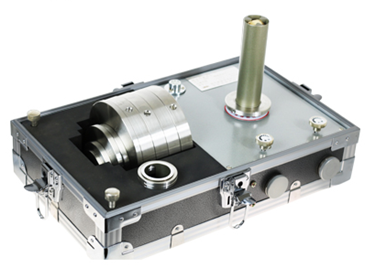

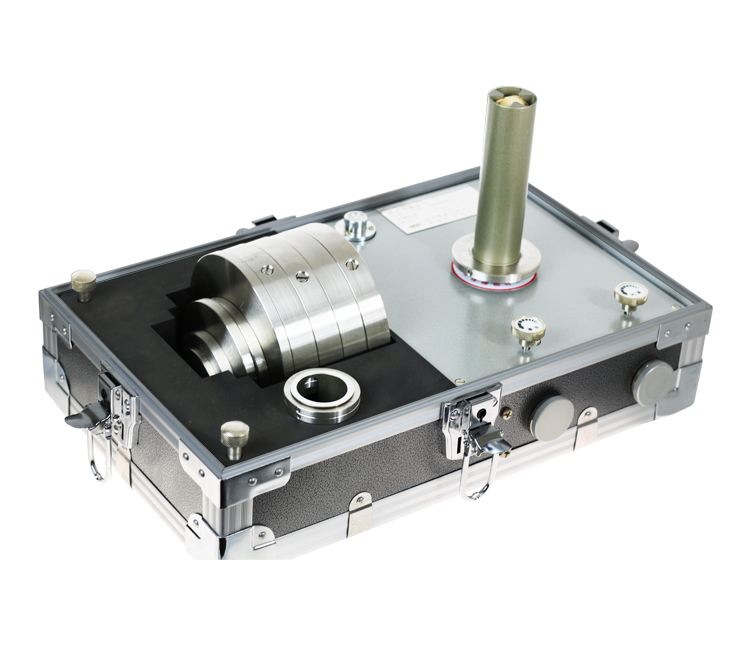

 Floating ball dead weight testerFloating ball dead weight tester

Technical Parameter

Item

Y047

Y055

Y055A

OUtput pressure ranges(MPa)

0.001~0.25

0.005~0.6

0.005~0.4

Accuracy (%)

0.05

0.05

0.05

Working temperature(C)

15~30

15~30

15~30

Temperature Coefficient ( /C)

1.710-5

1.710-5

1.710-5

Rated Air Pressure (MPa)

0.5

0.9

0.6

Max Air Pressure (MPa)

0.7

1

1

LOwest air pressure (MPa)

1.5 times of output pressure(as 0.3 MPa when less

Than 0.3 MPa)

1.5 times of output pressure(as 0.3 MPa when less

 than 0.3 MPa)

1.5 times of output

Pressure(as 0.3 MPa when less

 than 0.3 MPa)

AIR consumption of Rated Air Pressure(l/h)

150

300

300

Dimension(mm)

380240260

380240260

380240260

Weight (kg)

15

15
