Anhui Longmaker Technology
China Manufacturer with main products: Packing Machine, the Rice Packing Machine, Candy Packing Machine, Coffee Packaging Machine, Feed Packaging Machine, Granule Packing Machine,... |

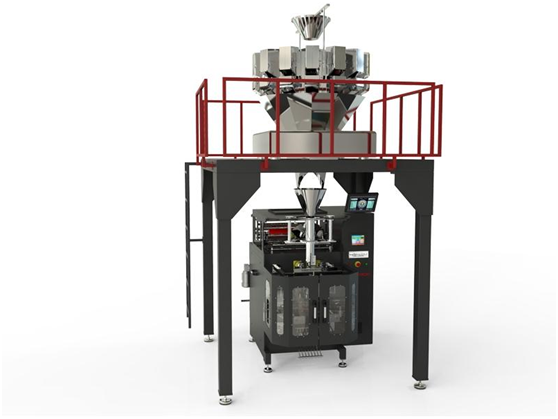

IM-W SERIES Packaging Machine with Multihead Weigher
| FOB Price: | 7,500.00 - 8,500.00 USD/Piece |
|---|---|
| Supply Ability: | 100 Piece(s) per Month |
| Shipping: | 15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
Related products from verified members
| Export Markets: | Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Anhui in China |
| Packaging Details: | wooden box |
Quick Details
- Type: Other
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE

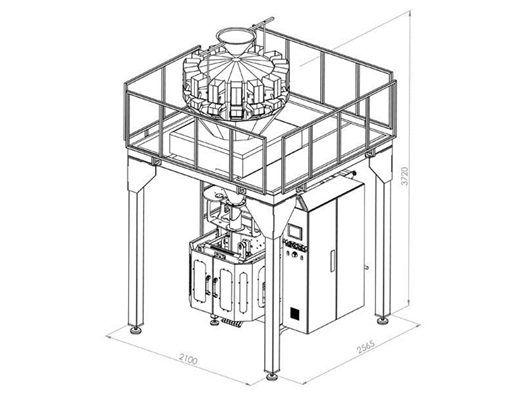

- Dimension(L*W*H): 2565*2100*3720mm
- Weight: 900KG
- Model Number: IM-W
- Brand Name: LM
- Power: 5.5KW
- Voltage: 380V
- Driven Type: Electric
- Automatic Grade: Automatic
- Packaging Material: Wood
- Packaging Type: Cans
- Application: Apparel,Medical
- Condition: New
- Air Pressure (Min.): 6 Bar
Specifications
IM-W SERIES
Packaging Machine with Multihead Weigher
DESCRIPTION
Suitable for
Granule type of products. the target weight is controlled by linear vibration
Units. with respect to product type and desired speed; 2 or 4 line types are
Available. the magnitude of vibration level for each line is adjustable. the
Accuracy of each filling is controlled by tuning each line vibration magnitude.
the average accuracy is depend on product type.
All surfaces touching to products are AISI 304 stainless steel.
Easy dismountable collar set design.
Package length should be controlled by print mark or feeding duration.
Printer state is checked continiously.
Wrapping material is feed by Servo motors.
Servo Motor Controlled Horizontal sealing and cutting.
Impulse or heat sealing units for different type of wrapping materials.
Wrapping material tension is controlled continiously.
Auotamic lateral adjustment of wrappin material.
Suitable for CE standarts.
7 inch touch screen wtih several languages.
Product features
Width |
2100 Mm |
Length |
2565 Mm |
Height |
3720 Mm |
Weight |
900 Kg |
Package Height Max: |
400 Mm |
Package Width Max: |
200 Mm |
Film Bobbin Diameter Max |
400 Mm |
Film Bobbin Width Max |
480 Mm |
Power Consumption |
5.5 Kw |
Working Voltage |
380V 3 Faz / Phase 50 Hz |
Air Consumption |
160 Lt/ Minute |
Air Pressure (Min.) |
6 Bar |
