Zhangjiagang Tsp Packaging Machinery Co., Ltd.

China Manufacturer with main products: Bottle Filling & Sealing Machine, Water Treatment System, Labeling Machine, Shrink Wrap Packaging Machine, PET Bottle Stretch Blow Molding...

Home  >Products Catalog > Bottle filling & sealing machine > Competitive Price Automatic Small Plastic Film Water Bag Liquid Filling Machine

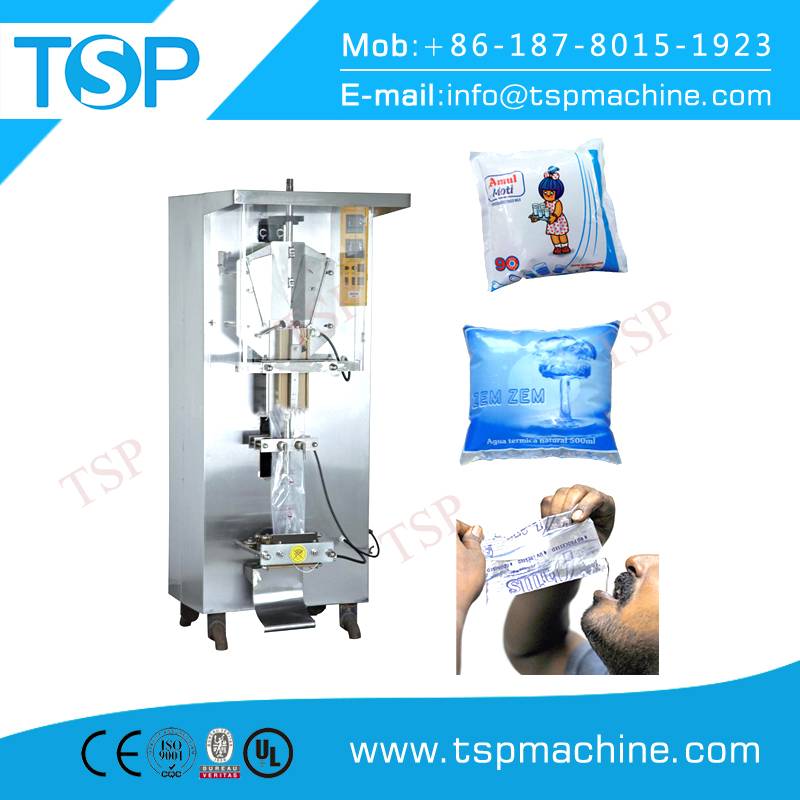

Competitive Price Automatic Small Plastic Film Water Bag Liquid Filling Machine

FOB Price: 1,000.00 - 3,000.00 USD/Set
Supply Ability: 60 Set(s) per Month
Shipping: 30 DAYS,SHANGHAI
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangsu in China
Packaging Details: WOODEN CASE

Quick Details

  • Type: Filling Machine
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certification: ISO,CE
  • Weight: 320kg
  • Dimension(L*W*H): 970*870*2200mm
  • Model Number: TSP-C1000
  • Brand Name: TSP
  • Power: 1.6kw
  • Voltage: 220V/380V
  • Driven Type: Electric
  • Automatic Grade: Automatic
  • Packaging Material: Wood
  • Packaging Type: Case
  • Application: Beverage,Food,Machinery & Hardware,Medical
  • Condition: New
  • Application: Drinks, Dairy Products
  • Control System: PLC Control and touch screen
  • Warranty: 2 years

Specifications

Competitive Price Automatic Small Plastic Film Water Bag Liquid Filling Machine

1.Description
TSP series automatic liquid packaging machines are widely used for various kinds of liquid packaging. Such as milk, soybean milk, fruit juice, ice drink, soy sauce, vinegar and wine. It adopts one PE film as packaging material. It can automatically sterilized by ultraviolet radiation, bag molding, print the code, precisely fill, seal and cut at the same time. the products have been long-tested and its performance enjoys a very high reputation from our clients. and they are easy to operate, running smoothly with low failure rate.

2.Characteristics
· Controlled by the computer, drove by the compressed air, uncomplicated operation, easy maintenance, stable function and reliable quality.
· the packing speed has no rank to adjust.
· Adopts exclusive control technology for the length of sacks, the length of sacks has no rank to adjust. the length of the manufacturing sacks is accurate and easy to adjust.
· Intelligible temperature-control instrument, it can constantly control the hot-seal temperature, certify the quality of the seal.
· No need to change the accessories, and it can arbitrarily achieve the making of the three-side seal, four-side seal, thin and flat sacks and pillow-like sacks.
· Unique photo electricity orientation technology, to assure complete picture of the manufacturing sacks with color marks.
· in the rated scope, the packing amount has no rank to adjust.

3.Technical Parameters

Performance parameter:
Model TSP-C1000 TSP-C2000
Speed 1800Bags/H 1500Bags/H
Capacity 50 ~ 500ml 200~1000ml
Power AC220V/50Hz,  AC380 AC220V/50Hz.,AC380
Confession paper electric motor 250W/220V 250W/220V
Heat-seal power  300W 500W
Hotor power 370W/380V/220V 370W/380V/220V
Outline dimension 950×800×2000mm 1000×900×2200mm
Machine weight 320Kg 360Kg
