Hangzhou Easy Electric Supply Cable Limited
China Manufacturer with main products: AAC, AAAC, ACSR, AACSR, ACAR, ACS, GSW, OPGM |

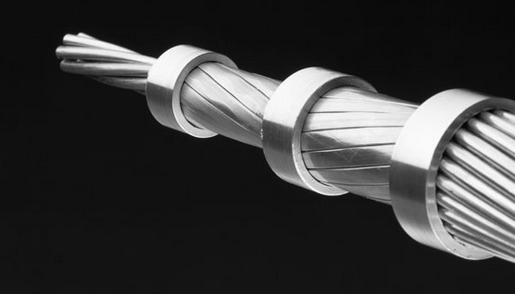

All Aluminum Alloy Conductors
| FOB Price: | 3,000.00 - 3,050.00 USD/Ton |
|---|---|
| Supply Ability: | 1,000,000 Ton(s) per Month |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | South America, Africa, Mid East |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Wooden Drum or Steel Wooden Drum |
Quick Details
- Jacket: PVC
- Conductor Material: Alloy Aluminum
- Application: Overhead
- Type: Low Voltage
- Insulation Material: bare
- Model Number: AAAC
- Brand Name: AAAC
Specifications
the following example is for you reference.
Features:High tensile strength as compared to AAAC conductor.
Higher conductivity as compared to ACSR conductor.
Better corrosion resistance than ACSR conductor.
Technical details:Standards: ASTM - B 399 Metric Units
ASTM - B 231
TS IEC 1089
DIN 48201
BS 215
UNE 21.018
Physical Contents of Aluminium Alloy:
Density:
Coefficient of Linear Expansion: 23 x 10-6 / ° C
Resistivity: 0.0326 Ohms mm2/m at 20° C
Constant Mass Temperature Coefficient (a): 0.00360/ ° C
Material: Heat treated Al. Mg. Si. Alloy2.70 kgm/dm3 at 20° C
Operation method of useage:
AAAC, or All Aluminium Alloy Conductor, is used as a bare overhead conductor for power transmission and distribution lines. AAAC conductor are made out from aluminum-magnesium-silicon alloy of high electrical conductivity (min 53% IACS) containing magnesium (0.6-0.9%) & silicon (0.5-0.9%) to give it better mechanical properties after treatment. AAAC conductors are made out of aluminum alloy 6201. AAAC conductor has a better corrosion resistance and better strength to weight ratio and improved electrical conductivity than ACSR conductor on equal diameter basis.
Package:Wooden Drum or Steel Wooden Drum
