Construction Waste Disposal System, C&D Waste Recycling

FOB Reference Price: $ 4300000
Wholesale: ?Y1 Set(s)
Supply Ability: 5 Set(s) per Year
Shipping: Construction Waste Disposal System, C&D waste recycling: Shipped in 30 days after payment.
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Henan in China
Packaging Details: of Construction Waste Disposal System, C&D waste recycling: product standard container export, reach to the requirements of the sea transportation.

Quick Details

  • Type: Construction waste sorting machine
  • Brand Name: WINNER
  • Capacity: 100-800T/H
  • Negative Pressure: NO
  • Machine name: Construction Waste Disposal System, C&D waste recycling
  • Model Number: WCW-100, WCW-150, WCW-200, WCW-300, WCW-400, WCW-500, WCW-800
  • Capacity: 100-800T/H
  • Feeding Size: <=900mm
  • major equipment: Drying to mud screening system
  • Input products: the mixture of construction waste
  • Output products: Iron, steel, impurities, plastic and different sizes of stones and bricks
  • Keyword: Construction waste disposal system
  • Keyword1: Construction waste sorting machine
  • Keyword2: Construction waste treatment line

Specifications

construction waste treatment system

Construction Waste Disposal System, C&D waste recycling:

Construction Waste Disposal System, C&D waste recycling and quick to achieve the construction waste disposal. after the screening of the construction waste through a specific iron removal Equipment to remove the iron material contained in the coarse and medium Crushing, fine crushing equipment and processing, processed into a certain size of the recycled aggregate, and finally applied to the road stone Burning brick, Cement blends and so on.



Applications of Construction Waste Disposal System, C&D waste recycling:

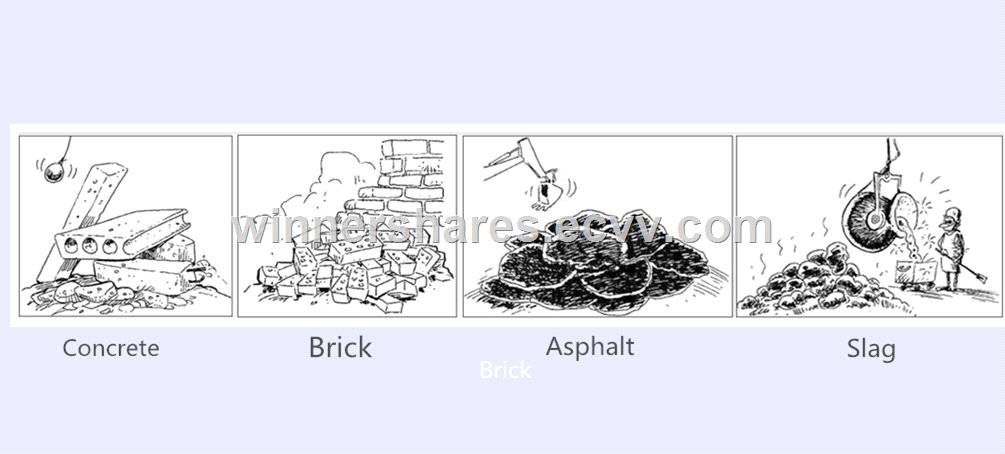

Crushing and screening for concrete fragments, asphalt pieces, bricks, stones, wood, plastic, gypsum and mortar, steel and nonmetallic.



Input products:the Mixture of construction waste,which is composed of road concrete blocks, Asphalt concrete blocks, old building blocks, building site waste, etc.

Output products:Iron, steel, impurities, plastic and different sizes of stones and bricks. All Sieving materials are finally used for roadbed stone, unburned bricks, cement Admixtures and so on.

Capacity:100 tons per hour to 800 tons per hour.



Technical parameters table of of Construction Waste Disposal System, C&D waste recycling:

Model

WCW-100

WCW-150

WCW-200

WCW-300

WCW-400

WCW-500

WCW-800

Feeding Size

<=500mm

<=600mm

<=600mm

<=750mm

<=750mm

<=600mm

<=900mm

Capacity

T/h

100

150

200

300

400

500

800

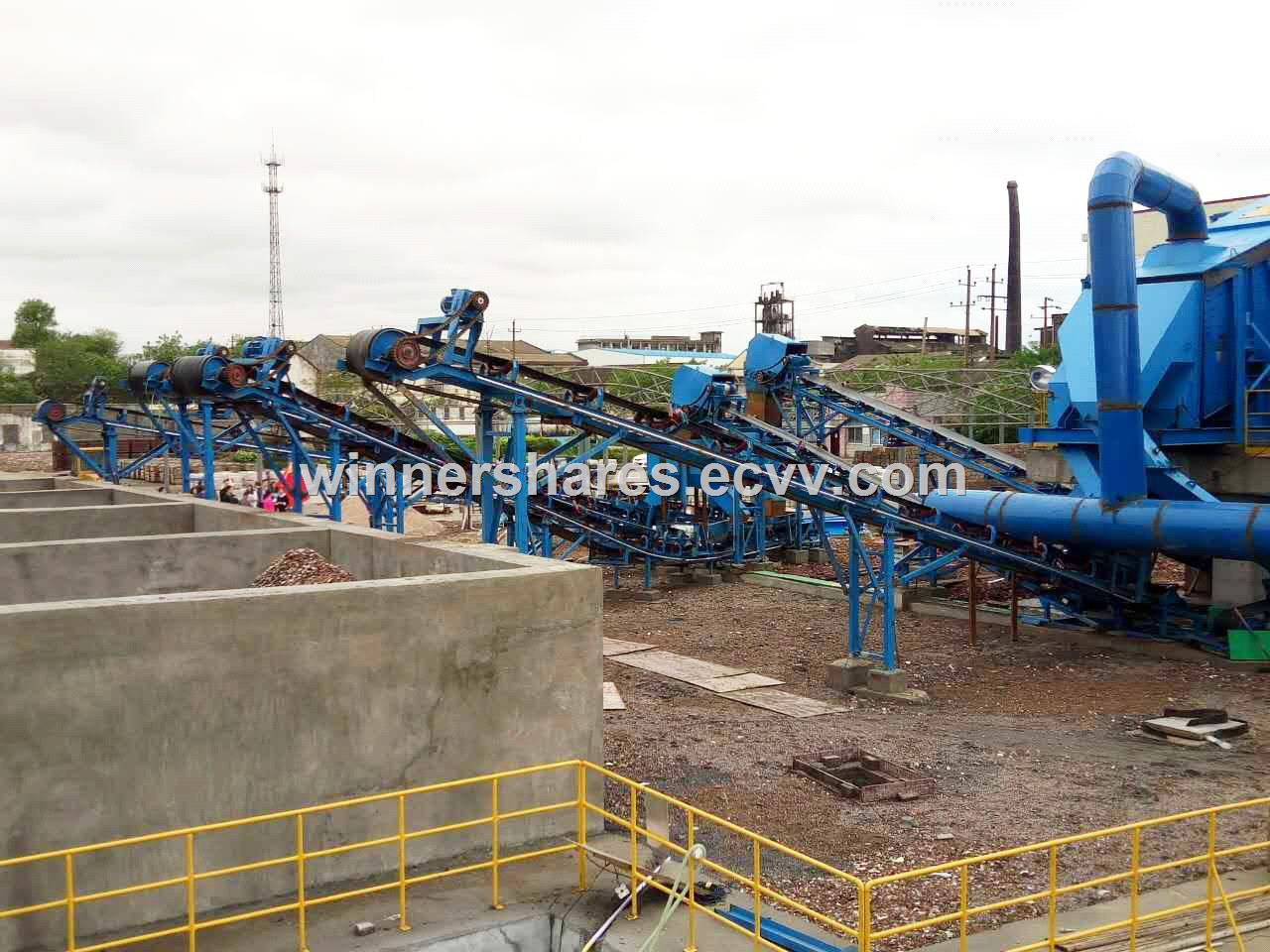

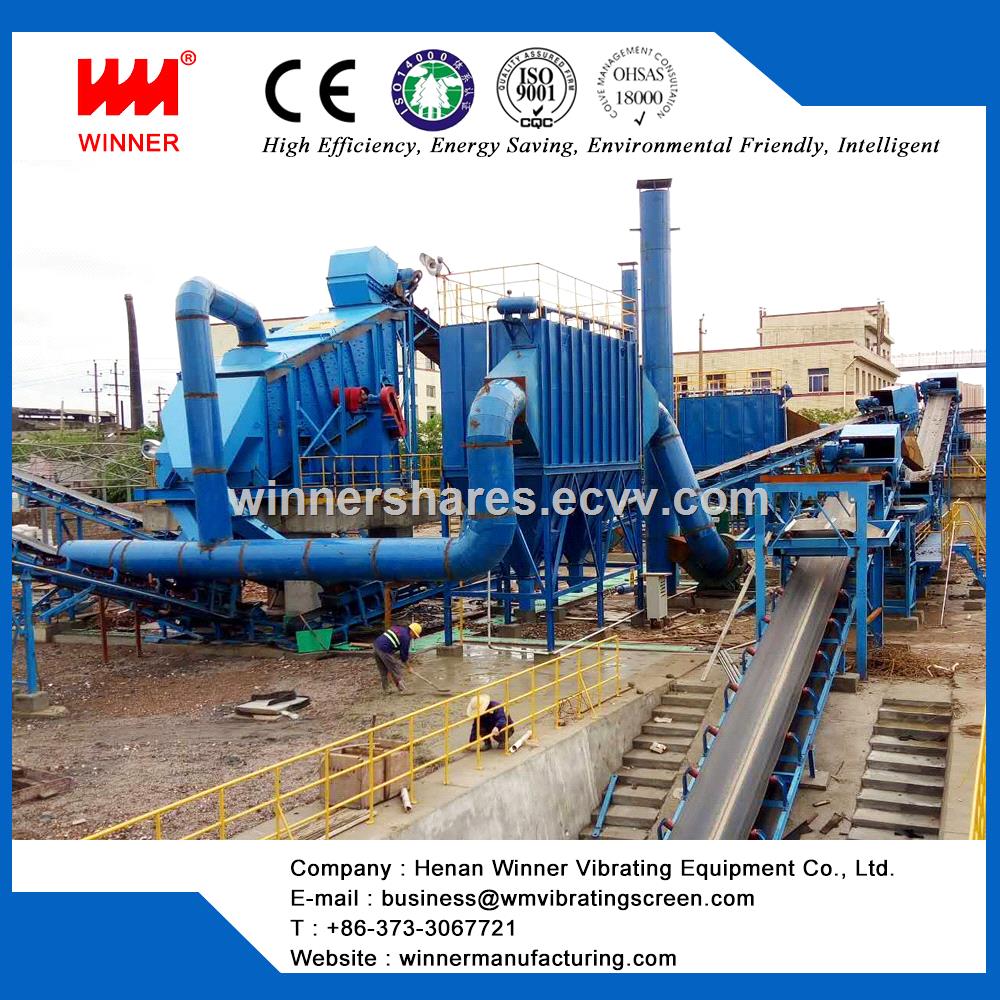

Machine pictures and processing chart:

construction waste treatment system1construction waste treatment system processing chart

Process Description:

the raw material of the construction waste is crushed through the feeder into the crusher, and the Material after the crushing is sent by the belt (the iron is transported at the Same time as the belt conveyor). the sieving station is sieved through the Screening station. Four materials are 0-5mm, 5-10mm, 10-15mm,> 15mm(According To customer needs can change),Which 10-15mm, >15mm material in the material Before the light material handling,> 31.5mm of the material from the new Break into the closed loop.

construction waste treatment system processing




WCW-800 List of major equipment:

Number

Model

Name

Quantity

1

ZSL-800

Drying to mud screening system

1

2

FXJ-800

Light material selection system

1

3

GTS-800

Roller sieve

1

4

PP1315

Impact Crusher

4

5

2 # dust removal system

1

6

1 # dust removal system

1

7

RCVD-15

Separator

2

8

PE1215

Jaw Crusher

1

9

ZSW1560

Vibration feeder

1

10

3YK3073

Circular vibrating screen

2

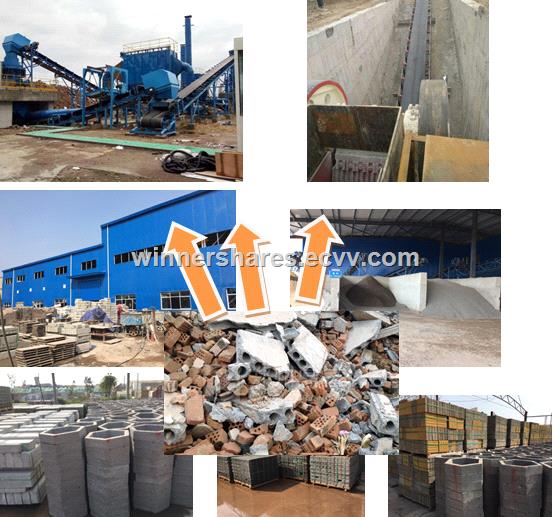

the utilization value of construction waste disposal System:

1.Economic value

(1)Brick, stone, Concrete and other waste materials after crushing, can replace sand, used in Masonry mortar, plastering mortar, concrete cushion. Waste concrete block Material after pulverization can cooperate with standard sand as fine aggregate Mortar mix for the wall surface plastering, roof screed, masonry mortar, floor Brick making etc.

construction waste treatment system

(2)the aggregate used in the construction of the waste bricks after being crushed. Making the Partition board, not only the light intensity is high and the sound insulation, the expansion coefficient is small, because the material is easy and cheap, but Greatly reduces the cost of the plate.


(3)the waste concrete Block material after crushing to cast-in-place concrete or prefabricated in Aggregate used for building non load bearing parts. this will not only save the Construction funds, and will not reduce the strength of the building.



2.Environmental value

Comprehensive Utilization of construction waste not only achieved certain economic benefits, and improve the environment, beautify the city, largely to avoid the Construction waste disposal, the release of harmful gases to city residents Health hazards.

Construction waste disposal system
