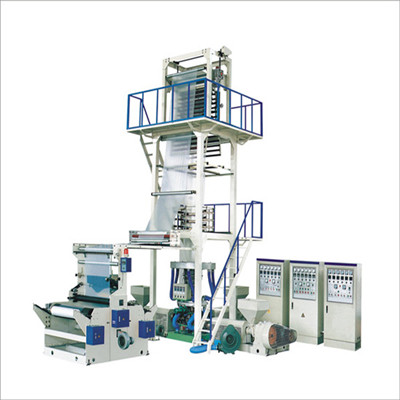

A+B+C Three Layer Co-Extrusion Film Blowing Machine

FOB Price: 1.00 - 200,000.00 USD/Set
Payment Terms: L/C, T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • Model Number: RF-3L 45/50/55
  • Brand Name: FASHION
  • Condition: New

Specifications

A+B+C three layer co-extrusion film blowing machine
ABC three layer coextrusion film blowing machine

Model

RF-3L 45

RF-3L 50

RF-3L 55

Suitable materials

                 LDPE LLDPE HDPE EVA

Film Width(mm)

800-1300

800-1500

1200-2000

Film Thickness(mm)

0.028-0.18

0.028-0.18

0.03-0.18

Max.Extrusion Output(kg/hr)

130kg/hr

190kg/hr

260kg/hr

EXTRUDER

Screw Diameter(mm)

AΦ45 BΦ50 CΦ45

AΦ50 BΦ55 CΦ50

AΦ55 BΦ65 CΦ55

Screw L/D Ratio

28:1

28:1

28:1

Screw Material

SACM-645/38 CRMOALA

Cylinder Material

SACM-645/38 CRMOALA

Cylinder Cooling

370w x 2/3

370w x 2/3

550w x 3/3

Driving Motor(kw)

A11+B15+C11kw

A15+B18.5+C15kw

A18.5+B22+C18.5kw

Temperature Control

3*3

3*3

3*3

Average Power-consume(kw)

45

58

70

TYPE of DIE

Die Size(mm)

Φ200/250

Φ250/300

Φ350/400

Temperature Control

4

4

4

Air Ring

1

1

1

Air Blower(kw)

3

5.5

7.5

TAKE-up UNIT

Roller width

Φ165*1400

Φ165*1600

Φ190*2100

Take-up Speed(m/min)

5-60

5-60

5-60

Take-up Motor(kw)

1.5

1.5

2.2

WINDING UNIT

Type

           SURFACE FRICTION TYPE

Winding Motor(kw)

1.5

1.5

2.2

Winding Speed(m/min)

5-60

5-60

5-60

Overall Diemension(L*W*H)

7.5*5.5*7.0m

8.2*5.8*7.0m

9.0*6.4*8.2m
