Henan Winner Vibrating Equipment Co., Ltd.
China Manufacturer with main products: Solid Waste Treatment Plant, Aggregate Production Line, Slurry Separation System, Vibrating Screen, Feeder Equipment, Crusher Machine,... |
High Capacity Heavy Disc Feeder Machine for Mining
| Supply Ability: | 100 Set(s) per Year |
|---|---|
| Shipping: | High capacity Heavy disc feeder machine for mining:Shipped in 30 days after payment. |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | High capacity Heavy disc feeder machine for mining: product standard container export, reach to the requirements of the sea transportation. |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 Year
- Certification: CE , ISO 9001 ,ISO 14001 ,OHSAS 18001
- Brand Name: WINNER
- Condition: New
- Weight: Customers' Requirement
- Dimension(L*W*H): According to Customer's requirments
- Power(W): 7.5-30kw
- Model Number: ZMBR
- Capacity(t/h): 10-200
- Power Type: Electric
- Application: metallurgy, chemical industry, coal, building materials and etc.
- Granularity: 40-150mm
- Bulk density: 0.5-2.5t/m3
- Water content: Usually<8%, Rainy season<12%
- Diameter of disk: 800-2500mm
- Production capacity: 10-210t/h
- Rotational speed of disk: 1.2-8r/min
- Title: High capacity Heavy disc feeder machine for mining
- Keyword: feeder machine for mining
- Keyword1: Heavy disc feeder
- power: 7.5-30kw
Specifications

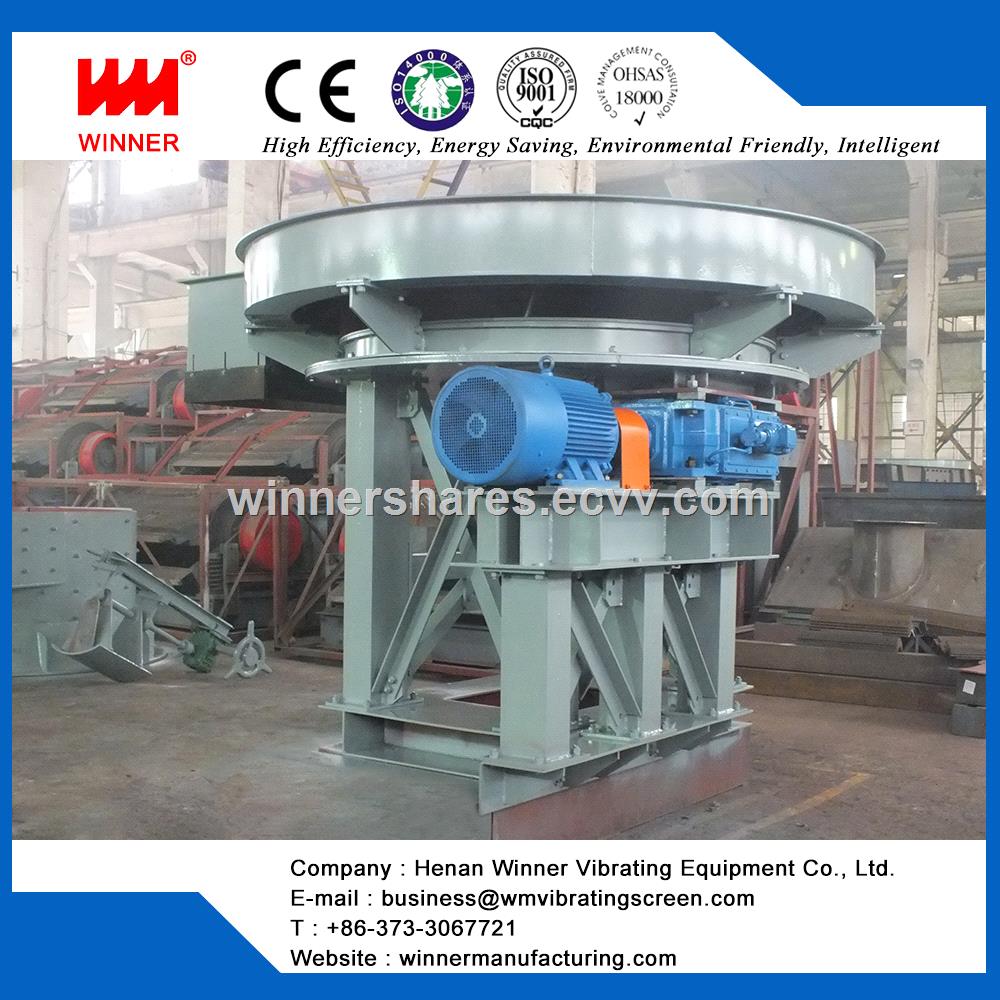

High capacity Heavy disc feeder machine for mining
WZMBR, MBR heavy disc feeder is a feeding device of Volume measurement, WZMBR, MBR heavy disc feeder is seat mounted, the Transmission structure is sealed and can work in environment with much dust. It Has large capacity and usually installed directly in the lower part of storage Bin to feeding other devices.
Application of High capacity Heavy disc feeder machine for mining:
Widely used in metallurgy, chemical industry, coal, Building materials and electric power and other industries.
Advantages of High capacity Heavy disc feeder machine for mining:
1.Use special heavy disc, high carrying capacity, more Than 10 years service life.
2.Equipped with a frequency conversion motor, stepless Adjust feeding amount.
3.Wet type disc feeder can be applied to materials with Corrosive occasions.
4.the equipment with compact structure and small occupied Space.
5.the transmission mechanism is reliable, maintenance is Simple, and the maintenance period is long.
6.Transmission efficiency is as high as 90%.
7.Provided with a wear-resistant lining board, the Service life is prolonged, and less maintenance.
8, connected to the silo outlet is large in size, easy to Install and nesting materials.
9.Use advanced frequency conversion motor for power, easy To adjust the amount of feeding steplessly.
Technical parameter table of High capacity Heavy disc feeder machine for mining:
Model |
Granularity |
Bulk density |
Water content |
Diameter of disk |
Production capacity |
Rotational speed of disk |
Variable frequency motor power |
mm |
(t/m3) |
(%) |
mm |
m3/h |
r/min |
kw | |
WZMBR800 |
40 |
0.5-2.5 |
Usually8% Rainy season12% |
800 |
1.8-9 |
1.6-8 |
7.5 |
WZMBR1000 |
50 |
1000 |
3.4-17 |
7.5 | |||
WZMBR1200 |
80 |
1200 |
7-34 |
1.2-6 |
11 | ||
WZMBR1600 |
90 |
1600 |
14-70 |
15 | |||
WZMBR2000 |
125 |
2000 |
21-105 |
22 | |||
WZMBR2500 |
150 |
2500 |
40-210 |
30 |
