Xiamen Xunheng Electronics Tech Co., Ltd.
China Manufacturer with main products: Power Adapter, Charger, Car Charger, LED Driver, Laptop AC Adapter |

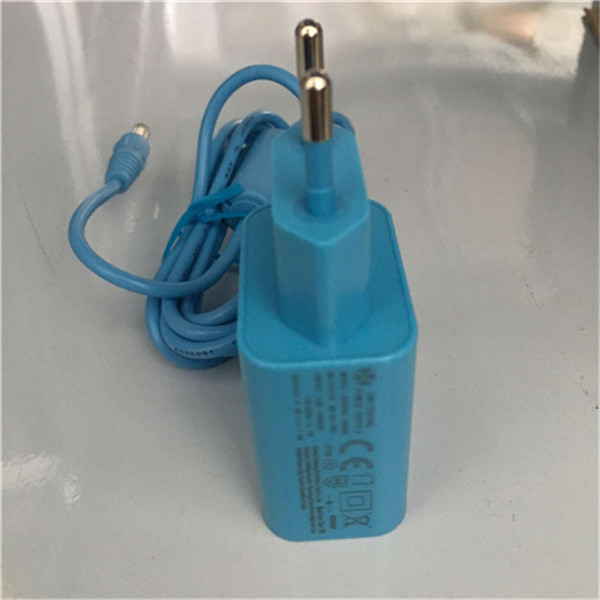

CE/1-18W/AC/DC Power Adapter, 12V/1A, 12V/1.5A
| FOB Price: | 2.40 - 2.70 USD/Piece |
|---|---|
| Supply Ability: | 200,000 Piece(s) per Month |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | PE bag+white box |
Quick Details
- Output Current: 3A
- Output Frequency: 50/60HZ
- Output Voltage: 5-30V
- Input Voltage: 220V
- Output Type: Single
- Model Number: XH-MC011
- Brand Name: XH
Specifications
CE 1-18W/AC/DC power adapter, 12V/1A, 12V/1.5A
Applications
Wireless telephone, routers, Bluetooth products, digital products, mobile phone chargers, battery chargers, electric toy charger, TV box charger, security camera
Product characteristics
- Small volume, streamlined, whole sealing, portability, high cost performance, strong reliability, ultrasonic bonding
- Safety approval of CCC, CB, ETL, CE, GS, BS, KC, SAA, PSE
- Low standby power consumption, meet the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI (6)
- Accept customization of specification, USB output type or power cord output type.
- Customization: EU standard, American standard, British standard, Australia standard, Korean Standards, Chinese standard
- Input voltage: 100-240V/AC(90-264V/AC)
- No-load power consumption: <0.1W max
- Output voltage: 5.0-30.0V DC
- Output power: 0-18W
- Constant-current output: constant voltage output or automatic switch between constant voltage and constant current
- Ripple and noises: <200mV max
- Lightning surge: up to 1kV (accept 3kV)
- Common specification: 12V DC/1.0A, 12V/1.5A, 12V/2.0A, 9V/2.5A
- Short circuit protection
- over voltage protection
- over current protection
- over temperature protection
- Hi-pot test: 3750V/AC/60s/5mA max
- Insulation resistance: 100MΩ min
- Leakage current: 0.25mA max
- Operating temperature: 0 to 40°C
- Storage humidity: 5-95% RH
- Burn-in test: rate load, 40 ±5°C, 4 hours
- EMC standards: EN55022 class-B/FCC part 15 class-B
- EN55024/A1:2001/EN61000
